Насос Системы Охлаждения Проверка Без Снятия С Автомобиля. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Охлаждения 1Nd-Tv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. REMOVE ENGINE UNDER COVER REAR RH

  2. REMOVE NO. 1 ENGINE COVER

  3. REMOVE V-RIBBED BELT

  4. INSPECT WATER PUMP ASSEMBLY

  5. REMOVE WATER PUMP PULLEY

  6. INSPECT WATER PUMP

  7. INSTALL WATER PUMP PULLEY

  8. INSTALL V-RIBBED BELT

  9. ADJUST V-RIBBED BELT

  10. INSPECT DRIVE BELT DEFLECTION AND TENSION

  11. INSTALL WIRE HARNESS

  12. INSTALL ENGINE UNDER COVER REAR RH

  13. INSTALL NO. 1 ENGINE COVER


Насос Системы Охлаждения -- Проверка Без Снятия С Автомобиля



1. REMOVE ENGINE UNDER COVER REAR RH
  1. Remove the 5 clips and engine under cover rear RH.



2. REMOVE NO. 1 ENGINE COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
  1. Disengage the 4 pins and remove No. 1 engine cover sub-assembly.



3. REMOVE V-RIBBED BELT


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
  1. Remove the 3 bolts and 2 wire harness clamps, then separate the wire harness.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Охлаждения 1Nd-Tv.Система Охлаждения.Насос Системы Охлаждения  Проверка Без Снятия С Автомобиля
  1. Loosen bolts A and B.

  1. Remove the v-ribbed belt.



4. INSPECT WATER PUMP ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

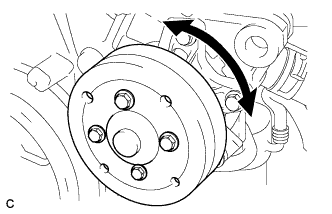

  1. Turn the pulley and check that the water pump bearing moves smoothly and quietly.
    If necessary, replace the water pump assembly.



5. REMOVE WATER PUMP PULLEY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Охлаждения 1Nd-Tv.Система Охлаждения.Насос Системы Охлаждения  Проверка Без Снятия С Автомобиля
  1. Using SST, hold the water pump pulley.

    SST
    09960-10010(09962-01000,09963-00700)
  1. Remove the 4 bolts, then remove the water pump pulley.



6. INSPECT WATER PUMP


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

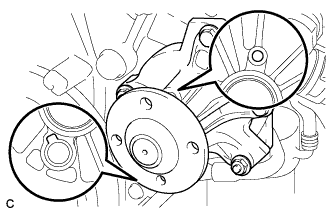

  1. Visually check the drain hole and air hole for coolant leakage.
    If leakage is found, replace the water pump assembly.



7. INSTALL WATER PUMP PULLEY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Охлаждения 1Nd-Tv.Система Охлаждения.Насос Системы Охлаждения  Проверка Без Снятия С Автомобиля
  1. Temporarily install the water pump pulley with the 4 bolts.

  1. Using SST, hold the water pump pulley.

    SST
    09960-10010(09962-01000,09963-00700)
  1. Tighten the 4 bolts to the specified torque.

    Момент затяжки:
    15 Н*м{153 кгс*см, 11 фунт-сила-футов}


8. INSTALL V-RIBBED BELT
  1. Temporarily install the v-ribbed belt onto each pulley.

    ПРИМЕЧАНИЕ:
    1. Before installing the V belt, check each pulley for any kind of liquid and chips.
    1. Check that the ribs of the V belt are correctly fitted into the grooves of the pulleys.


9. ADJUST V-RIBBED BELT


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
  1. Insert a bar between the generator and the engine. Pull the bar toward the front of the vehicle and adjust the tension.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Охлаждения 1Nd-Tv.Система Охлаждения.Насос Системы Охлаждения  Проверка Без Снятия С Автомобиля
  1. Tighten bolt A, then tighten bolt B.

    Момент затяжки:
    Bolt A:
    19 Н*м{189 кгс*см, 14 фунт-сила-футов}
    Bolt B:
    32 Н*м{326 кгс*см, 24 фунт-сила-футов}


10. INSPECT DRIVE BELT DEFLECTION AND TENSION
  1. Inspect the v-ribbed belt deflection.

    Pressing force:
    98 N (10 kgf, 221 lbf)
    New belt
    mm (in.)
    Used belt
    mm (in.)
    5.0 to 6.0
    (0.197 to 0.236)
    7.0 to 8.5
    (0.276 to 0.335)
  1. Inspect the v-ribbed V belt tension.

    New belt
    N (kg, lb)
    Used belt
    N (kg, lb)
    980 to 1176
    (100 to 120, 220 to 264)
    490 to 686
    (50 to 70, 110 to 154)
    ПРИМЕЧАНИЕ:
    1. Check the V belt deflection at the specified point.
    1. When installing a new belt, set its tension value as specified.
    1. When checking a belt used for over 5 minutes, confirm that the deflection value is within the specified range for a used belt.
    1. When reinstalling a belt used for over 5 minutes, check whether its deflection value is within the specified range for the used belt.
    1. When using a belt tension gauge, confirm its accuracy first by using a master gauge.


11. INSTALL WIRE HARNESS


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Охлаждения 1Nd-Tv.Система Охлаждения.Насос Системы Охлаждения  Проверка Без Снятия С Автомобиля
  1. Install the wire harness with the 3 bolts and 2 wire harness clamps.

    Момент затяжки:
    Bolt A:
    13 Н*м{131 кгс*см, 14 фунт-сила-футов}
    Bolt B:
    11 Н*м{112 кгс*см, 8 фунт-сила-футов}


12. INSTALL ENGINE UNDER COVER REAR RH
  1. Install the engine under cover rear RH with the 5 clips.



13. INSTALL NO. 1 ENGINE COVER
  1. Fit the 4 retainers and install the No. 1 engine cover.
