Manual Transmission Extension Housing Oil Seal -- Replacement |
| 1. REMOVE MANUAL TRANSMISSION ASSEMBLY |
Remove the manual transmission (Toyota Fortuner RM0000011B2004X.html).
| 2. REMOVE MANUAL TRANSMISSION EXTENSION HOUSING OIL SEAL |
 |

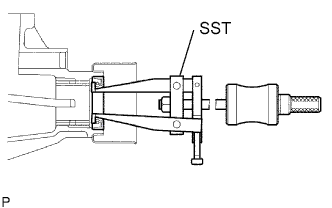

Using SST, tap out the oil seal.
- SST
- 09308-00010
| 3. INSTALL MANUAL TRANSMISSION EXTENSION HOUSING OIL SEAL |
 |
Coat the lip of a new oil seal with MP grease.

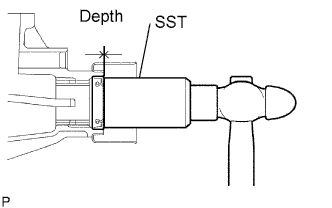

Using SST and a hammer, tap in the oil seal.
- SST
- 09223-00010
- Standard depth:
- 0 +-0.5 mm (0 +-0.020 in.)
- NOTICE:
- Be careful not to damage the lip of the oil seal.
| 4. INSTALL MANUAL TRANSMISSION ASSEMBLY |
Install the manual transmission (Toyota Fortuner RM0000011B0004X.html).
