Headlight Assembly (For Hid Headlight) Removal


  1. PRECAUTION

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  3. REMOVE RADIATOR GRILLE

  4. REMOVE FOG LIGHT COVER LH

  5. REMOVE FOG LIGHT COVER RH

  6. REMOVE FRONT BUMPER COVER

  7. REMOVE HEADLIGHT ASSEMBLY LH

Headlight Assembly (For Hid Headlight) -- Removal


CAUTION:
Make sure that the headlight control ECU sub-assembly LH is not connected or hot before removing the headlight control ECU sub-assembly.
HINT:
  1. Use the same procedure for the RH and LH sides.
  2. The procedure listed below is for the LH side.


1. PRECAUTION
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Toyota Fortuner RM000000UYX010X.html).


2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Toyota Fortuner RM000004W63000X.html).


3. REMOVE RADIATOR GRILLE


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Remove the 2 clips and 2 screws.



    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Lighting.Headlight Assembly (For Hid Headlight).Headlight Assembly (For Hid Headlight) Removal

  1. Put protective tape around the radiator grille.

    Text in Illustration
    *1
    		Protective Tape

  1. Detach the 6 claws and remove the radiator grille.



4. REMOVE FOG LIGHT COVER LH


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Lighting.Headlight Assembly (For Hid Headlight).Headlight Assembly (For Hid Headlight) Removal

  1. Put protective tape around the fog light cover.

  1. Using the screwdriver, detach the 8 claws and remove the fog light cover.

    HINT:
    Tape the screwdriver tip before use.
    Text in Illustration
    *1
    		Protective Tape


5. REMOVE FOG LIGHT COVER RH
HINT:
Use the same procedure described for the LH side.


6. REMOVE FRONT BUMPER COVER


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Remove the 6 screws and 3 clips.



    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Lighting.Headlight Assembly (For Hid Headlight).Headlight Assembly (For Hid Headlight) Removal

  1. Put protective tape around the front bumper cover.

  1. Remove the 2 screws, 2 bolts and 5 clips.

    Text in Illustration
    *1
    		Protective Tape

  1. w/ Headlight Cleaner System:
    Disconnect the headlight cleaner hose, and then drain the washer fluid.

    HINT:
    Use a container to collect the washer fluid.

  1. w/ Fog Light:
    Disconnect the 2 fog light connectors.



    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50

  1. Detach the 8 claws and remove the front bumper cover.



7. REMOVE HEADLIGHT ASSEMBLY LH


    Toyota Fortuner. Ggn50, 60 Kun51, 61 Tgn51 Lan50.Lighting.Headlight Assembly (For Hid Headlight).Headlight Assembly (For Hid Headlight) Removal

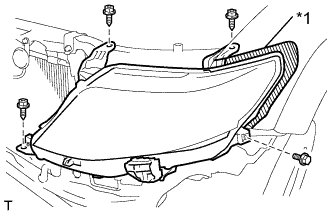

  1. Put protective tape around the headlight assembly LH.

    Text in Illustration
    *1
    		Protective tape

  1. Remove the 3 screws and bolt.

  1. Disconnect the connectors and remove the headlight assembly LH.
