CRUISE CONTROL SYSTEM - Clutch Switch Circuit


DESCRIPTION

When the clutch pedal is released, the ECM receives positive (+) battery voltage through the LH-IG fuse. While depressing the clutch pedal, the clutch switch sends a signal to terminal D*1 or CLSW*2 of the ECM. The ECM cancels cruise control when terminal D*1 or CLSW*2 receives the signal.
HINT:
  1. *1: for 1GR-FE
  2. *2: for 1VD-FTV

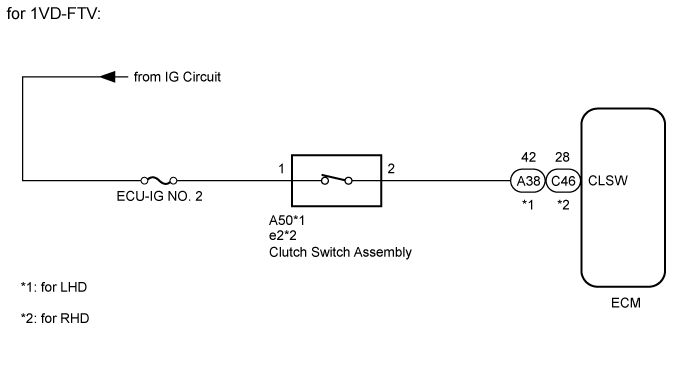

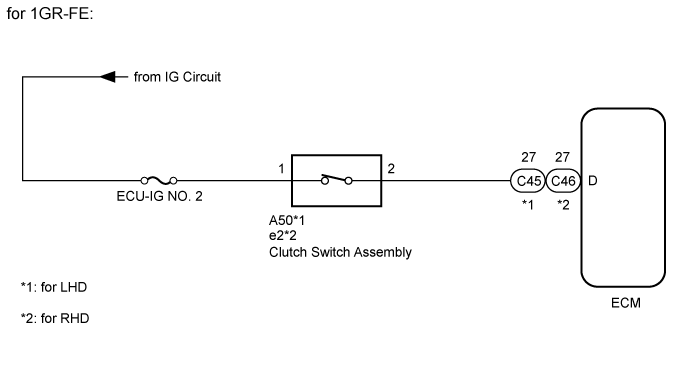

WIRING DIAGRAM


Land Cruiser. Urj200, 202 Grj200 Vdj200.Cruise Control.Cruise Control System.Cruise Control System Clutch Switch Circuit


Land Cruiser. Urj200, 202 Grj200 Vdj200.Cruise Control.Cruise Control System.Cruise Control System Clutch Switch Circuit


INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.
1.INSPECT CLUTCH SWITCH ASSEMBLY

  1. Remove the clutch switch assembly.

    1. for LHD: Click here
    2. for RHD: Click here

  1. Inspect the clutch switch assembly.

    1. for LHD: Click here
    2. for RHD: Click here
    Result
    Result
    		Proceed to
    OK
    		A
    NG (for LHD)
    		B
    NG (for RHD)
    		C


B
REPLACE CLUTCH SWITCH ASSEMBLY (Click here)

C
REPLACE CLUTCH SWITCH ASSEMBLY (Click here)
A


2.CHECK HARNESS AND CONNECTOR (CLUTCH SWITCH ASSEMBLY - BATTERY)


    Land Cruiser. Urj200, 202 Grj200 Vdj200.Cruise Control.Cruise Control System.Cruise Control System Clutch Switch Circuit

  1. Disconnect the A50*1 or e2*2 clutch switch assembly connector.

    1. *1: for LHD
    2. *2: for RHD

  1. Measure the voltage according to the value(s) in the table below.

    Standard Voltage:
    Tester Connection
    		Switch Condition
    		Specified Condition
    A50*1-1 - Body ground
    e2*2-1 - Body ground
    		Ignition switch ON
    		11 to 14 V
    Ignition Switch off
    		Below 1 V
    1. *1: for LHD
    2. *2: for RHD

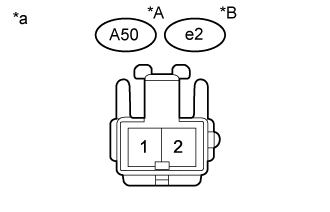

    Text in Illustration
    *A
    		for LHD
    *B
    		for RHD
    *a
    		Front view of wire harness connector
    (to Clutch Switch Assembly)


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK


3.CHECK HARNESS AND CONNECTOR (ECM - CLUTCH SWITCH ASSEMBLY)

  1. Disconnect the C45*1, C46*2 or A38*3 ECM connector.

    HINT:
    1. *1: for 1GR-FE (LHD)
    2. *2: for 1GR-FE (RHD) and 1VD-FTV (RHD)
    3. *3: for 1VD-FTV (LHD)

  1. Disconnect the A50*1 or e2*2 clutch switch assembly connector.

    HINT:
    1. *1: for LHD
    2. *2: for RHD

  1. Measure the resistance according to the value(s) in the table below.

    Standard Resistance:
    for 1GR-FE (LHD)
    Tester Connection
    		Condition
    		Specified Condition
    C45-27 (D) - A50-2
    		Always
    		Below 1 Ω
    C45-27 (D) or A50-2 - Body ground
    		Always
    		10 kΩ or higher
    for 1GR-FE (RHD)
    Tester Connection
    		Condition
    		Specified Condition
    C46-27 (D) - e2-2
    		Always
    		Below 1 Ω
    C46-27 (D) or e2-2 - Body ground
    		Always
    		10 kΩ or higher
    for 1VD-FTV (LHD)
    Tester Connection
    		Condition
    		Specified Condition
    A38-42 (CLSW) - A50-2
    		Always
    		Below 1 Ω
    A38-42 (CLSW) or A50-2 - Body ground
    		Always
    		10 kΩ or higher
    for 1VD-FTV (RHD)
    Tester Connection
    		Condition
    		Specified Condition
    C46-28 (CLSW) - e2-2
    		Always
    		Below 1 Ω
    C46-28 (CLSW) or e2-2 - Body ground
    		Always
    		10 kΩ or higher
    Result:
    Result
    		Proceed to
    NG
    		A
    OK (for 1GR-FE)
    		B
    OK (for 1VD-FTV)
    		C


B
REPLACE ECM (Click here)

C
REPLACE ECM (Click here)
A

REPAIR OR REPLACE HARNESS OR CONNECTOR
