INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Driver Side Knee Airbag)
INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (w/o Driver Side Knee Airbag)
INSTALL COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
Steering Column Assembly (For Manual Tilt And Manual Telescopic Steering Column) -- Installation |
- HINT:
- Use the same procedure for RHD and LHD vehicles.
- The procedure listed below is for LHD vehicles.
| 1. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT |
Align the part of the dust cover labeled A with the No. 2 steering intermediate shaft, and install the No. 2 steering intermediate shaft assembly to the steering link assembly.

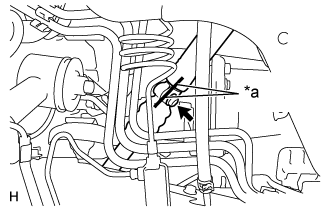

Text in Illustration *a Matchmark
 |
Install the bolt.
- Torque:
- 35 N*m{357 kgf*cm, 26 ft.*lbf}
- NOTICE:
- Be careful not to damage the dust cover.
| 2. INSTALL STEERING COLUMN HOLE COVER SUB-ASSEMBLY |
Install the 4 bolts and nut.
- Torque:
- 5.0 N*m{51 kgf*cm, 44 in.*lbf}
- NOTICE:
- Do not fold back the boot part of the steering hole cover or extend it excessively. if it is extended excessively, return it to its original position.
- HINT:
- Install the steering intermediate shaft assembly from the inside of the vehicle.
Using needle nose pliers, lock the clamp to the steering column hole cover to install it.
- NOTICE:
- Be careful when performing the operation as the clamp may not lock if the claws of the clamp are deformed.
| 3. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY |
Align the matchmarks on the No. 2 steering intermediate shaft assembly and the steering intermediate shaft assembly.
Text in Illustration *a Matchmark - HINT:
- Install the steering intermediate shaft from the inside of the vehicle.
 |
Install the bolt.
- Torque:
- 35 N*m{357 kgf*cm, 26 ft.*lbf}
| 4. INSTALL STEERING COLUMN ASSEMBLY |
Align the matchmarks on the steering intermediate shaft and the steering column.
Text in Illustration *a Matchmark
 |
Install the bolt.
- Torque:
- 35 N*m{357 kgf*cm, 26 ft.*lbf}
w/o Entry and Start System:
Install the steering column with the 4 nuts.
- Torque:
- 21 N*m{214 kgf*cm, 15 ft.*lbf}
w/ Entry and Start System
Install the steering column with the 4 nuts.
- Torque:
- 26 N*m{265 kgf*cm, 19 ft.*lbf}
| 5. INSTALL NO. 3 AIR DUCT SUB-ASSEMBLY |
Attach the 2 claws to install the duct.
Install the clip.
| 6. INSTALL WIRE HARNESS PROTECTOR AND WIRE HARNESS |
Attach the 2 claws to connect the wire harness protector and wire harness.
Connect the 2 wire harness clamps.
| 7. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Driver Side Knee Airbag) |
| 8. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (w/o Driver Side Knee Airbag) |
| 9. INSTALL COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY |
Using pliers, grip the claws of the clamp and install the combination switch assembly with spiral cable sub-assembly to the steering column assembly with the clamp.
Connect the connectors to the combination switch with spiral cable.
| 10. INSTALL UPPER STEERING COLUMN COVER |
Attach the claw to install the upper steering column cover.
Attach the 4 clips and 2 claws to install the upper steering column cover onto the meter hood spacer.
| 11. INSTALL LOWER STEERING COLUMN COVER |
Attach the 2 claws to install the lower steering column cover.
Install the 3 screws.
- Torque:
- 1.5 N*m{15 kgf*cm, 13 in.*lbf}
| 12. INSTALL STEERING WHEEL ASSEMBLY |
| 13. CHECK FRONT WHEELS FACING STRAIGHT AHEAD |
| 14. INSTALL FRONT WHEEL |
| 15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
- NOTICE:
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).
| 16. INSPECT SRS WARNING LIGHT |
