DTC P0787 Shift / Timing Solenoid Low (Shift Solenoid Valve ST) |
DTC P0788 Shift / Timing Solenoid High (Shift Solenoid Valve ST) |
DESCRIPTION
Shift solenoid valve ST is switched OFF-ON-OFF in accordance with signals from the ECM when up-shifting and down-shifting between the 3rd and the 4th gears. This reduces the shock of gear shifting between these positions.DTC No.
| DTC Detection Condition
| Trouble Area
|
P0787
| ECM detects short in solenoid valve ST circuit 4 times when solenoid valve ST is operated (1-trip detection logic).
| - Wire harness or connector
- Transmission wire
- Shift solenoid valve ST
- ECM
|
P0788
| ECM detects open in solenoid valve ST circuit 4 times when solenoid valve ST is not operated (1-trip detection logic).
| - Wire harness or connector
- Transmission wire
- Shift solenoid valve ST
- ECM
|
MONITOR DESCRIPTION
When there is an open or short circuit in the shift solenoid valve circuit, the ECM detects the problem and the MIL comes on.
MONITOR STRATEGY
Related DTCs
| P0787: Shift timing solenoid/Range check (Low resistance)
P0788: Shift timing solenoid/Range check (High resistance)
|
Required sensors/Components
| Shift solenoid valve ST
|
Frequency of operation
| Continuous
|
Duration
| 0.128 seconds
|
MIL operation
| Immediate
|
Sequence of operation
| None
|
TYPICAL ENABLING CONDITIONS
P0787: Range check (Low resistance)The monitor runs whenever the following DTCs are not present
| None
|
Solenoid
| ON
|
Time after solenoid OFF to ON
| 0.008 seconds or more
|
Battery voltage
| 8 V or more
|
Ignition switch
| ON
|
Starter
| OFF
|
P0788: Range check (High resistance)The monitor runs whenever the following DTCs are not present
| None
|
Solenoid
| OFF
|
Time after solenoid ON to OFF
| 0.008 seconds or more
|
Battery voltage
| 8 V or more
|
Ignition switch
| ON
|
Starter
| OFF
|
TYPICAL MALFUNCTION THRESHOLDS
P0787: Range check (Low resistance)Shift solenoid valve ST resistance
| 8 Ω or less
|
P0788: Range check (High resistance)Shift solenoid valve ST resistance
| 100 kΩ or more
|
COMPONENT OPERATING RANGE
Shift solenoid valve ST resistance
| 11 to 15 Ω at 20°C (68°F)
|

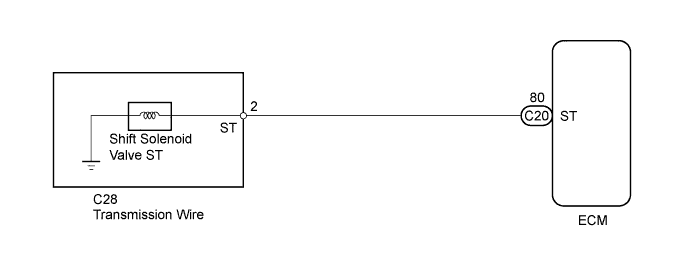

WIRING DIAGRAM
INSPECTION PROCEDURE
- NOTICE:
- Perform the universal trip to clear permanent DTCs (YARIS_NCP93 RM000000W770MGX.html).
| 1.INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE ST) |
Disconnect the transmission wire connector from the transaxle.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
2 (ST) - Body ground
| 20°C (68°F)
| 11 to 15 Ω
|

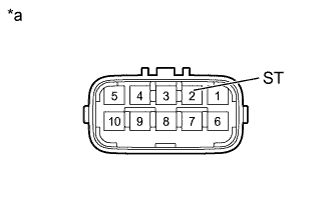

Text in Illustration*a
| Component without harness connected
(Transmission Wire)
|
| 2.CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM) |
Connect the transmission connector to the transaxle.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
C20-80 (ST) - Body ground
| 20°C (68°F)
| 11 to 15 Ω
|

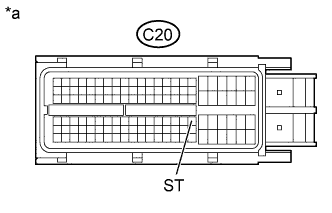

Text in Illustration*a
| Front view of wire harness connector
(to ECM)
|
| | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
| 3.INSPECT SHIFT SOLENOID VALVE ST |
Remove shift solenoid valve ST.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection
| Condition
| Specified Condition
|
1 - Solenoid Body
| 20°C (68°F)
| 11 to 15 Ω
|

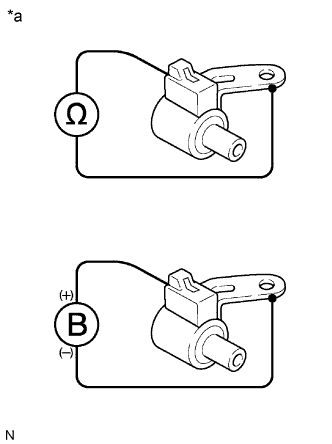

Connect the positive (+) lead to the terminal of the solenoid connector and the negative (-) lead to the solenoid body to check the solenoid valve operation.
- OK:
- The solenoid makes operating sounds.
Text in Illustration*a
| Component without harness connected
(Shift Solenoid Valve ST)
|
