VEHICLE STABILITY CONTROL SYSTEM - VSC OFF Indicator Light Remains ON |
DESCRIPTION
The skid control ECU is connected to the combination meter via the CAN communication system.The VSC OFF indicator light illuminates to inform the driver when VSC OFF mode is entered using the VSC OFF switch.

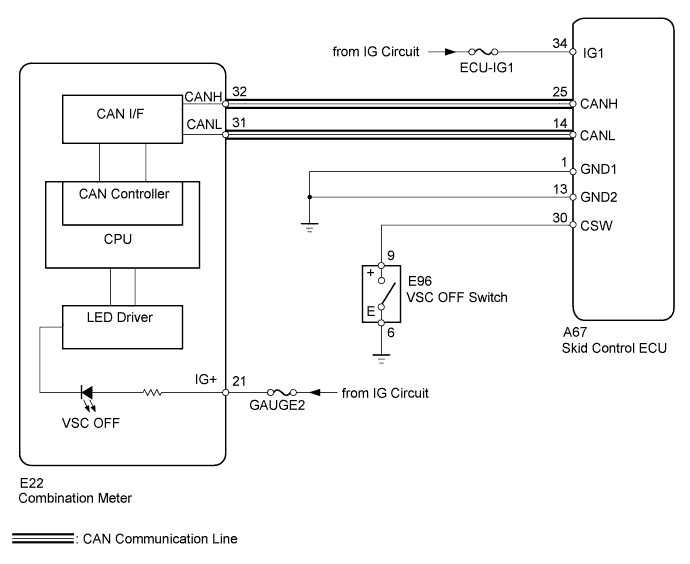

WIRING DIAGRAM
INSPECTION PROCEDURE
- NOTICE:
- When replacing the brake actuator assembly, perform the zero point calibration (RAV4_ACA30 RM000001K1O00SX.html).
Check that both of the following conditions are satisfied.
- The vehicle is not in VSC OFF mode.
- The vehicle is not in inspection mode.
- HINT:
- Confirm if the vehicle is in inspection mode or not by using the intelligent tester Data List.
| 2.CHECK CAN COMMUNICATION SYSTEM |
Check if a CAN communication system DTC is output (RAV4_ACA30 RM000001W16002X.html).
- Result:
Result
| Proceed to
|
DTC is not output.
| A
|
DTC is output.
| B
|
| 3.INSPECT SKID CONTROL ECU CONNECTOR |
Check if the skid control ECU connector is securely connected.
- OK:
- The connector is securely connected.
| | CONNECT CONNECTOR CORRECTLY |
|
|
| 4.INSPECT COMBINATION METER ASSEMBLY |
Inspect the combination meter (RAV4_ACA30 RM0000020M0001X.html).
