DTC B2417 Headlight Beam Level Control Motor LH Malfunction

DTC B2418 Headlight Beam Level Control Motor RH Malfunction


DESCRIPTION

The leveling actuator (headlight leveling motor) receives a signal from the AFS ECU to operate. The AFS ECU receives signals regarding the operating conditions of the leveling actuator (headlight leveling motor).

DTC No.
DTC Detection Condition
Trouble Area
B2417
  1. Malfunction in headlight leveling motor LH
  2. Open or short in headlight leveling motor LH circuit
  1. Headlight leveling motor LH (Headlight assembly LH)
  2. Wire harness or connector
  3. AFS ECU
B2418
  1. Malfunction in headlight beam level control motor RH
  2. Open or short in headlight beam level control motor RH circuit
  1. Headlight leveling motor RH (Headlight assembly RH)
  2. Wire harness or connector
  3. AFS ECU

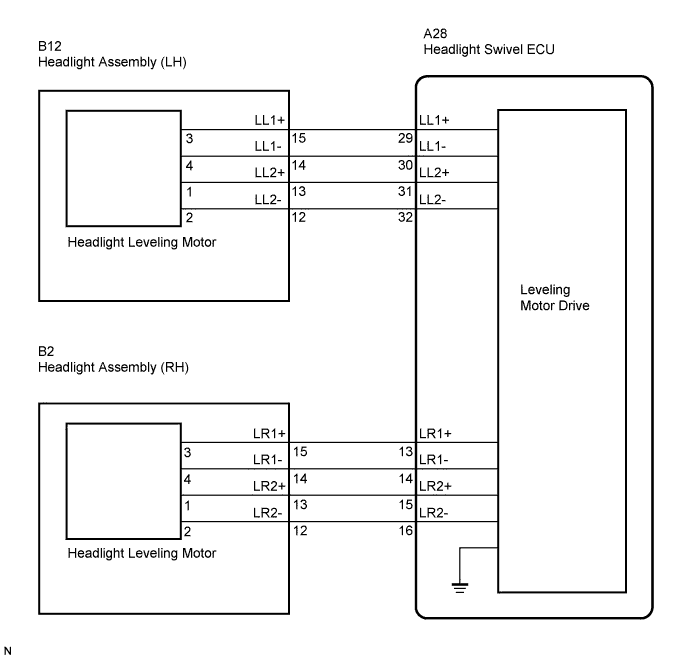

WIRING DIAGRAM


Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System. Dtc B2417 Headlight Beam Level Control Motor Lh Malfunction


INSPECTION PROCEDURE

1.PERFORM ACTIVE TEST BY INTELLIGENT TESTER

  1. Connect the intelligent tester to the DLC3.

  1. Turn the engine switch on (IG).

  1. Turn the intelligent tester main switch on.

  1. Select the "ACTIVE TEST" on the intelligent tester.

  1. Check the headlight leveling motor operation with the intelligent tester.

    ACTIVE TEST: AFS (AFS ECU)
    Item
    		Test Details
    		Diagnostic Note
    Drive The Leveling Motor
    		Drive the leveling motor UP / OFF
    		-
    Drive The Leveling Motor
    		Drive the leveling motor DOWN / OFF
    		-
    OK:
    Headlight leveling motor is operated.

    Result:

    Result
    		Proceed to
    OK (When checking from PROBLEM SYMPTOMS TABLE)
    		A
    OK (When checking from DIAGNOSTIC TROUBLE CODE CHART)
    		B
    NG
    		C


B
REPLACE AFS ECU

C
Go to step 2
A

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

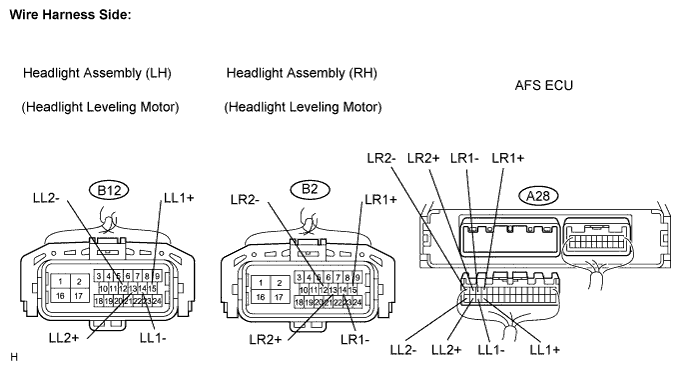

2.CHECK HARNESS AND CONNECTOR (HEADLIGHT LEVELING MOTOR - AFS ECU)

Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System. Dtc B2417 Headlight Beam Level Control Motor Lh Malfunction

  1. Disconnect the B12 and B2 headlight assembly connectors.

  1. Disconnect the A28 AFS ECU connector.

  1. Measure the resistance according to the value (s) in the table below.

    Standard resistance:
    LH Side (B2417):

    Tester Connection
    		Condition
    		Specified Condition
    A28-29 (LL1+) - B12-15 (LL1+)
    		Always
    		Below 1 Ω
    A28-30 (LL1-) - B12-14 (LL1-)
    		Always
    		Below 1 Ω
    A28-31 (LL2+) - B12-13 (LL2+)
    		Always
    		Below 1 Ω
    A28-32 (LL2-) - B12-12 (LL2-)
    		Always
    		Below 1 Ω
    A28-29 (LL1+) - Body ground
    		Always
    		10 kΩ or higher
    A28-30 (LL1-) - Body ground
    		Always
    		10 kΩ or higher
    A28-31 (LL2+) - Body ground
    		Always
    		10 kΩ or higher
    A28-32 (LL2-) - Body ground
    		Always
    		10 kΩ or higher
    RH Side (B2418):

    Tester Connection
    		Condition
    		Specified Condition
    A28-13 (LR1+) - B2-15 (LR1+)
    		Always
    		Below 1 Ω
    A28-14 (LR1-) - B2-14 (LR1-)
    		Always
    		Below 1 Ω
    A28-15 (LR2+) - B2-13 (LR2+)
    		Always
    		Below 1 Ω
    A28-16 (LR2-) - B2-12 (LR2-)
    		Always
    		Below 1 Ω
    A28-13 (LR1+) - Body ground
    		Always
    		10 kΩ or higher
    A28-14 (LR1-) - Body ground
    		Always
    		10 kΩ or higher
    A28-15 (LR2+) - Body ground
    		Always
    		10 kΩ or higher
    A28-16 (LR2-) - Body ground
    		Always
    		10 kΩ or higher


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

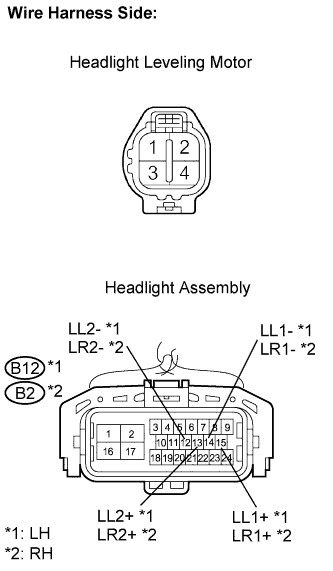

3.CHECK HARNESS AND CONNECTOR (HEADLIGHT LEVELING MOTOR - HEADLIGHT ASSEMBLY)


    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System. Dtc B2417 Headlight Beam Level Control Motor Lh Malfunction

  1. Disconnect the headlight leveling motor connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    LH Side:
    Tester Connection
    		Condition
    		Specified Condition
    B12-15 (LL1+) - 3
    		Always
    		Below 1 Ω
    B12-14 (LL1-) - 4
    		Always
    		Below 1 Ω
    B12-13 (LL2+) - 1
    		Always
    		Below 1 Ω
    B12-12 (LL2-) - 2
    		Always
    		Below 1 Ω
    B12-15 (LL1+) - Body ground
    		Always
    		10 kΩ or higher
    B12-14 (LL1-) - Body ground
    		Always
    		10 kΩ or higher
    B12-13 (LL2+) - Body ground
    		Always
    		10 kΩ or higher
    B12-12 (LL2-) - Body ground
    		Always
    		10 kΩ or higher
    RH Side:
    Tester Connection
    		Condition
    		Specified Condition
    B2-15 (LR1+) - 3
    		Always
    		Below 1 Ω
    B2-14 (LR1-) - 4
    		Always
    		Below 1 Ω
    B2-13 (LR2+) - 1
    		Always
    		Below 1 Ω
    B2-12 (LR2-) - 2
    		Always
    		Below 1 Ω
    B2-15 (LR1+) - Body ground
    		Always
    		10 kΩ or higher
    B2-14 (LR1-) - Body ground
    		Always
    		10 kΩ or higher
    B2-13 (LR2+) - Body ground
    		Always
    		10 kΩ or higher
    B2-12 (LR2-) - Body ground
    		Always
    		10 kΩ or higher


NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

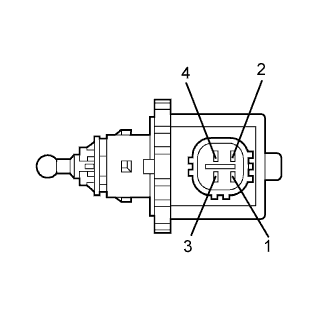

4.INSPECT HEADLIGHT LEVELING MOTOR (LH AND/OR RH)


    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System. Dtc B2417 Headlight Beam Level Control Motor Lh Malfunction

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    RH Side (B2418):
    Tester Connection
    		Condition
    		Specified Condition
    1 - 2
    		Always
    		5.8 to 12.5 Ω
    3 - 4
    		Always
    		5.8 to 12.5 Ω
    LH Side (B2417):
    Tester Connection
    		Condition
    		Specified Condition
    1 - 2
    		Always
    		5.8 to 12.5 Ω
    3 - 4
    		Always
    		5.8 to 12.5 Ω


NG
REPLACE HEADLIGHT ASSEMBLY LH OR HEADLIGHT ASSEMBLY RH
OK

REPLACE AFS ECU
