Item
| Measurement Item / Display (Range)
| Normal Condition
| Diagnostic Note
|
F Fog Light SW
| Front fog light switch signal ON or OFF
| ON: Front fog light switch is in ON position
OFF: Front fog light switch is not in ON position
| -
|
R Fog Light SW
| Rear fog light switch signal ON or OFF
| ON: Rear fog light switch is in ON position
OFF: Rear fog light switch is not in ON position
|
|
Dimmer Hi SW
| High beam switch signal / ON or OFF
| ON: Headlight dimmer switch is in HI position
OFF: Headlight dimmer switch is not in HI position
| -
|
Light Auto SW
| Auto light switch signal / ON or OFF
| ON: Light control switch is in AUTO position
OFF: Light control switch is not in AUTO position
| -
|
Head Light SW
| Headlight control switch signal / ON or OFF
| ON: Light control switch is in HEAD position
OFF: Light control switch is not in HEAD position
| -
|
Tail Light SW
| Taillight switch signal / ON or OFF
| ON: Light control switch is in TAIL or HEAD position
OFF: Light control switch is not in TAIL or HEAD position
| -
|
Turn Left SW
| Turn signal switch LH signal / ON or OFF
| ON: Light control switch is in LH position
OFF: Light control switch is not in LH position
| -
|
Turn Right SW
| Turn signal switch RH signal / ON or OFF
| ON: Light control switch is in RH position
OFF: Light control switch is not in RH position
| -
|
Telesc Short SW
| Telesco Short switch status / ON or OFF
| ON: Telesco switch is in SHORT position
OFF: Telesco switch is not in SHORT position
| -
|
Telesc Long SW
| Telesco Long switch status / ON or OFF
| ON: Telesco switch is in LONG position
OFF: Telesco switch is not in LONG position
| -
|
Tilt Down SW
| Tilt Down switch / ON or OFF
| ON: TILT switch is in DOWN position
OFF: TILT switch is not in DOWN position
| -
|
Tilt up SW
| Tilt Up switch / ON or OFF
| ON: TILT switch is in UP position
OFF: TILT switch is not in UP position
| -
|

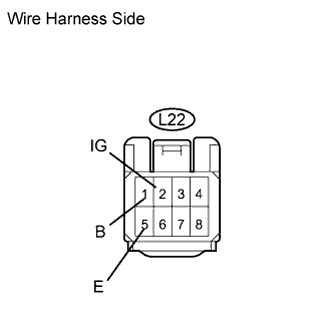

IG SW Sig
| Engine switch signal / ON or OFF
| ON: Engine switch on (IG)
OFF: Engine switch off
| -
|
