Hazard Warning Switch Inspection

Body Electrical. Camry. Acv40 Gsv40
Lighting. Camry. Acv40 Gsv40

  1. INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY

Hazard Warning Switch -- Inspection



1. INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY


    Camry. Acv40 Gsv40

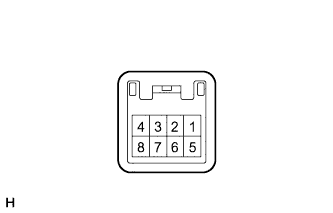

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    5 - 4
    		OFF
    		10 kΩ or higher
    5 - 4
    		ON
    		Below 1 Ω
    If the result is not as specified, replace the hazard warning signal switch assembly.

  1. Apply battery voltage to the hazard warning signal switch assembly connector.

    OK:
    Measurement Condition
    		Specified Condition
    Battery positive (+) → Terminal 7
    Battery negative (-) → Terminal 8
    		Illumination comes on
    If the result is not as specified, replace the hazard warning signal switch assembly.
