Input Shaft Disassembly

Трансмиссия. Toyota Rav4. Aca30, 33, 38 Ala30

  1. REMOVE INPUT SHAFT REAR BEARING SHAFT SNAP RING

  2. REMOVE INPUT SHAFT REAR RADIAL BALL BEARING

  3. REMOVE 6TH DRIVE GEAR

  4. REMOVE 3RD DRIVE GEAR

  5. REMOVE 4TH DRIVE GEAR

  6. REMOVE INPUT SHAFT SNAP RING

  7. REMOVE INPUT SHAFT FRONT BEARING

Input Shaft -- Disassembly



1. REMOVE INPUT SHAFT REAR BEARING SHAFT SNAP RING


    Toyota Rav4. Aca30, 33, 38 Ala30
  1. Using a snap ring expander, remove the input shaft rear bearing shaft snap ring from the input shaft.



2. REMOVE INPUT SHAFT REAR RADIAL BALL BEARING


    Toyota Rav4. Aca30, 33, 38 Ala30.Механическая Трансмиссия Ea64F.Система Механической Трансмиссии.Input Shaft  Disassembly

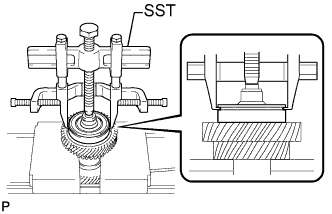

  1. Using SST, remove the input shaft rear radial ball bearing from the input shaft.

    Специальный инструмент (SST):
    09950-40011(09951-04020,09952-04010,09953-04020,09954-04010,09955-04011,09957-04010,09958-04011)
    09631-20031


3. REMOVE 6TH DRIVE GEAR


    Toyota Rav4. Aca30, 33, 38 Ala30.Механическая Трансмиссия Ea64F.Система Механической Трансмиссии.Input Shaft  Disassembly

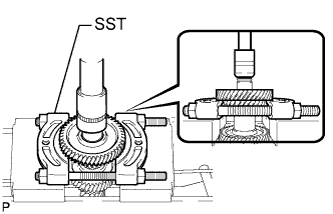

  1. Using SST and a press, press out the 6th drive gear from the input shaft.

    Специальный инструмент (SST):
    09950-00020


4. REMOVE 3RD DRIVE GEAR


    Toyota Rav4. Aca30, 33, 38 Ala30.Механическая Трансмиссия Ea64F.Система Механической Трансмиссии.Input Shaft  Disassembly

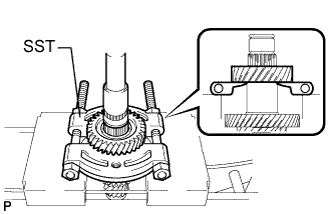

  1. Using SST and a press, press out the 3rd drive gear from the input shaft.

    Специальный инструмент (SST):
    09950-00020


    Toyota Rav4. Aca30, 33, 38 Ala30
  1. Remove the input shaft spacer from the input shaft.



5. REMOVE 4TH DRIVE GEAR


    Toyota Rav4. Aca30, 33, 38 Ala30.Механическая Трансмиссия Ea64F.Система Механической Трансмиссии.Input Shaft  Disassembly

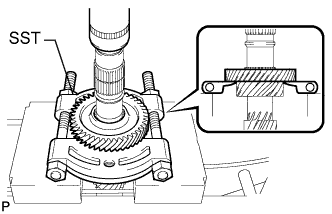

  1. Using SST and press, press out the 4th drive gear from the input shaft.

    Специальный инструмент (SST):
    09950-00020


6. REMOVE INPUT SHAFT SNAP RING


    Toyota Rav4. Aca30, 33, 38 Ala30

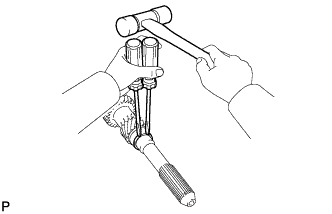

  1. Using 2 screwdrivers and a hammer, tap out the input shaft snap ring from the input shaft.



7. REMOVE INPUT SHAFT FRONT BEARING


    Toyota Rav4. Aca30, 33, 38 Ala30.Механическая Трансмиссия Ea64F.Система Механической Трансмиссии.Input Shaft  Disassembly

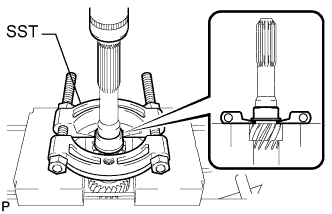

  1. Using SST and press, press out the input shaft front bearing from the input shaft.

    Специальный инструмент (SST):
    09950-00020
