Интегрированное Реле Установка. Corolla Auris

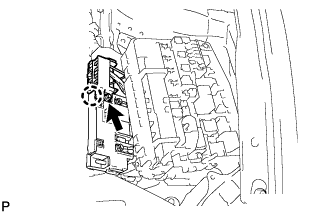

Engage the 2 claws and install the integration relay to the relay block.

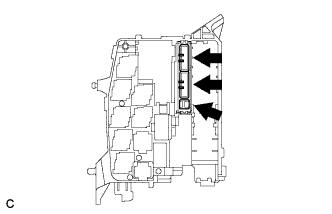

Connect the 3 connectors.

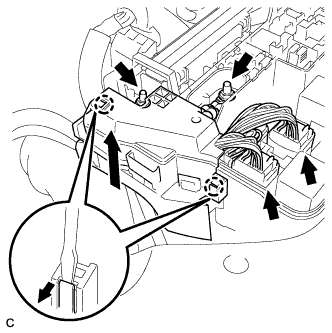

Install the 3 wire harnesses to the fusible link assembly with the 3 bolts.

Момент затяжки:

3.4 Н*м{35 кгс*см, 30 фунт-сила-дюймов}

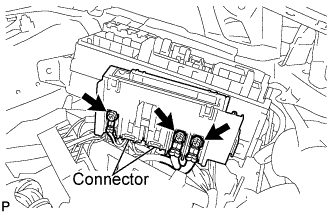

Connect the 2 connectors to the fusible link assembly.

Install the 2 wire harnesses to the fusible link assembly with the 2 bolts.

Момент затяжки:

5.4 Н*м{55 кгс*см, 48 фунт-сила-дюймов}

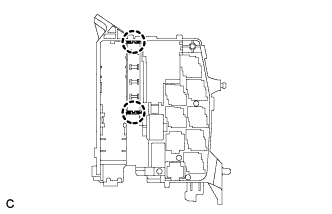

Engage the claw and install the fuse holder to the fusible link block assembly.

Install the bolt.

Момент затяжки:

5.4 Н*м{55 кгс*см, 48 фунт-сила-дюймов}

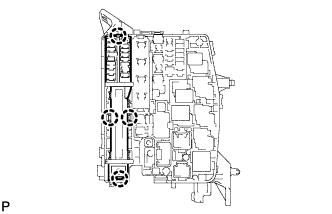

Engage the 4 claws and install the fuse holder and fusible link block assembly.

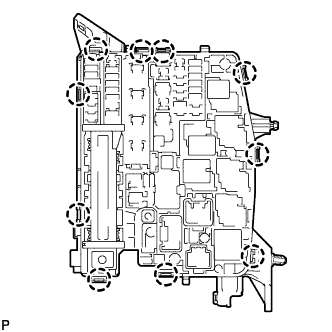

Engage the 10 claws and assemble the upper side and lower side of the relay block cover.

ПРИМЕЧАНИЕ:

Securely assemble in order to prevent the wire harness from getting caught.

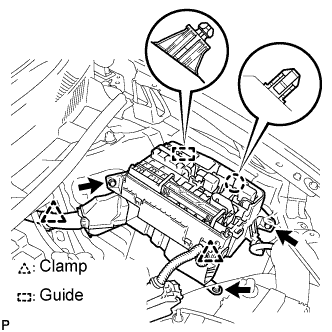

Engage the guide and claw of the relay block.

Install the 3 bolts.

Момент затяжки:

8.4 Н*м{86 кгс*см, 74 фунт-сила-дюймов}

Install the 2 wire harness clamps.

Install the front fender liner LH with the 5 clips.

Install the bracket to the ECM with the 4 screws.

Момент затяжки:

3.0 Н*м{30 кгс*см, 27 фунт-сила-дюймов}

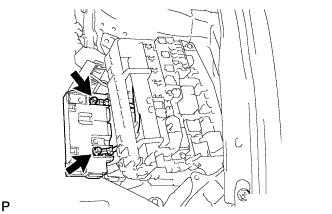

Install the ECM with the 2 bolts.

Момент затяжки:

8.0 Н*м{82 кгс*см, 71 фунт-сила-дюймов}

Connect the 2 ECM connectors.

1. Connect the 2 ECM connectors and lower the 2 levers.


   ПРИМЕЧАНИЕ:

   1. When connecting the connectors, make sure that dirt, water or other foreign matter does not get caught between the connectors and other parts.

   2. Make sure that the 2 levers are securely lowered.


Install the air cleaner case with the 3 bolts.

Момент затяжки:

7.0 Н*м{71 кгс*см, 62 фунт-сила-дюймов}

Install the wire harness clamp to the air cleaner case.

Install the air cleaner filter element.

Connect the air cleaner cap sub-assembly with the band.

Connect the ventilation hose.

Connect the 2 clamps.

Connect the mass air flow meter connector.

Engage the 4 clips to install the V-bank cover.

ПРИМЕЧАНИЕ:

1. Be sure to engage the clips securely.

2. Do not apply excessive force or do not hit the cover to engage the clips. This may cause the cover to break.


Engage the 2 clamps of the wire harness.

Install the 2 nuts.

Момент затяжки:

8.4 Н*м{86 кгс*см, 74 фунт-сила-дюймов}

Connect the 2 connectors.
