  1. INSTALL LEVEL WARNING SWITCH

  2. INSTALL FUEL FILTER GASKET

  3. INSTALL FUEL FILTER ASSEMBLY

  4. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

  5. INSTALL AIR CLEANER CAP SUB-ASSEMBLY

  6. INSPECT FOR FUEL LEAK

  7. INSTALL ENGINE COVER NO.1


Датчик Отстойника Топлива -- Установка



1. INSTALL LEVEL WARNING SWITCH
  1. Install a new O-ring to the level warning switch.

  1. Apply fuel to the O-ring of the level warning switch.

  1. Install the level warning switch to the fuel filter and tighten it by hand.



2. INSTALL FUEL FILTER GASKET
  1. Install the filter gasket and filter stay to the fuel filter assembly.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

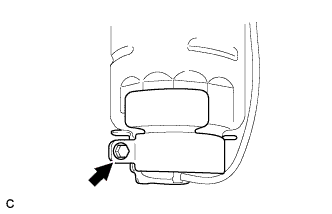

  1. Tighten the bolt.

    Момент затяжки:
    3.4 Н*м{35 кгс*см, 30 фунт-сила-дюймов}


3. INSTALL FUEL FILTER ASSEMBLY


  1. Install the fuel filter assembly.



      COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
    1. Install the fuel filter assembly with the 2 nuts.

      Момент затяжки:
      18 Н*м{179 кгс*см, 13 фунт-сила-футов}
    2. Connect the level warning switch connector.



  1. Connect the 4 fuel hoses. (without combustion heater)



      COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Топливная Система 1Nd-Tv.Топливная Система.Датчик Отстойника Топлива  Установка
    1. Connect the No. 3 fuel hose as shown in the illustration (*1).

    2. Connect the No. 2 fuel hose as shown in the illustration (*2).

    3. Connect the No. 1 fuel hose as shown in the illustration (*3).



    4. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Топливная Система 1Nd-Tv.Топливная Система.Датчик Отстойника Топлива  Установка
    5. Connect the No. 4 fuel hose as shown in the illustration (*4).



  1. Connect the 5 fuel hoses. (without combustion heater)



      COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Топливная Система 1Nd-Tv.Топливная Система.Датчик Отстойника Топлива  Установка
    1. Connect the No. 3 fuel hose as shown in the illustration (*1).

    2. Connect the No. 2 fuel hose as shown in the illustration (*2).

    3. Connect the No. 1 fuel hose as shown in the illustration (*3).

    4. Connect the heater fuel hose as shown in the illustration (*4).



    5. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Топливная Система 1Nd-Tv.Топливная Система.Датчик Отстойника Топлива  Установка
    6. Connect the No. 4 fuel hose as shown in the illustration (*5).



4. INSTALL AIR CLEANER CASE SUB-ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
  1. Install the air cleaner case sub-assembly with the 3 bolts.

    Момент затяжки:
    7.0 Н*м{71 кгс*см, 62 фунт-сила-дюймов}


5. INSTALL AIR CLEANER CAP SUB-ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
  1. Install the air cleaner cap sub-assembly, and connect the 2 clamps and band.

  1. Connect the No. 2 ventilation hose.

  1. Connect the mass air flow meter connector.



6. INSPECT FOR FUEL LEAK
УКАЗАНИЕ:
Using the intelligent tester to perform Active Tests allow relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.
The Data List can be displayed during Active Tests.
  1. Connect an intelligent tester to the DLC3.

  1. Turn the ignition switch to the ON position.

  1. Turn the tester on.

  1. Enter the following menu items: Powertrain / Engine and ECT / Active Test.

  1. Perform the Active Test.

    Tester Display
    Test Part
    Control Range
    Diagnostic Notes
    Active the fuel leak test
    Pressurize common rail internal fuel pressure, in order to see if fuel leaks
    ON/OFF
    1. Fuel pressure inside common rail pressurized to 135 MPa and engine speed increased to 2000 rpm when ON selected
    2. Above conditions preserved while test ON


7. INSTALL ENGINE COVER NO.1
  1. Fit the 4 retainers and install the No. 1 engine cover.
