Датчик Уровня Топлива В Сборе Установка. Corolla Auris

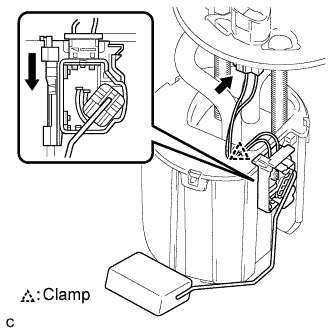

Install the fuel sender gauge assembly by sliding it downward.

Connect the harness clamp.

Install the harness protector.

ПРИМЕЧАНИЕ:

Do not damage the wire harness.

Connect the connector of the fuel sender gauge assembly.

Apply a light coat of diesel fuel to a new gasket, and install it to the fuel tank.

Install the fuel tank vent tube assembly to the fuel tank.

ПРИМЕЧАНИЕ:

1. Do not damage the fuel pump filter.

2. Be careful not to bend the fuel sender gauge arm.


Align the protrusion of the fuel tank vent tube with the notch of the fuel tank.

While holding the fuel tank vent tube assembly by hand to prevent it from tilting, align the start marks on the fuel pump gauge retainer and fuel tank and tighten the fuel pump gauge retainer 180° by hand.

УКАЗАНИЕ:

1. Check that there is no damage, dent, foreign matter, or other defect on the threads of the fuel tank.

2. The diameter of a supplied fuel pump gauge retainer is larger than that of the factory-installed retainer, anticipating that the fuel tank swells and expands over time. If the diameter of the factory-installed retainer is too small to reinstall, use a supplied fuel pump gauge retainer.


Using a 6 mm socket, set SST to the fuel pump gauge retainer.

SST

09808-14020(09808-01410,09808-01420,09808-01430)

ПРИМЕЧАНИЕ:

Do not use any other tools such as a screwdriver.

УКАЗАНИЕ:

1. Insert the notch of SST into the rib of the fuel pump gauge retainer.

2. While setting SST, hold the fuel tank vent tube by hand to prevent the gasket from separating from the fuel tank.


Tighten the fuel pump gauge retainer approximately 270° from the start mark on the fuel tank so that the start mark on the retainer comes within the range shown in the illustration.

ПРИМЕЧАНИЕ:

Do not use any other tools such as a screwdriver.

УКАЗАНИЕ:

Insert the notch of SST into the rib of the fuel pump gauge retainer.

Install the tube.

ПРИМЕЧАНИЕ:

Securely install the tube by pushing on it until it makes a clicking sound.

Connect the fuel tank main tube and return tube.

1. Push the fuel tube joint into the plug of the fuel tank vent tube, then install the 2 tube joint clips.


   ПРИМЕЧАНИЕ:

   1. Check that there are no scratches or foreign objects on the connecting parts.

   2. Check that the fuel tube joint is inserted securely.

   3. Check that the tube joint clips are on the collars of the fuel tube joints.

   4. After installing the tube joint clips, check that the fuel tube joints have not been pulled off.

   5. Be careful not to damage the clips. If any clip is damaged, replace it.


Connect the fuel pump connector.

Install the rear floor service hole cover with new butyl tape.

ПРИМЕЧАНИЕ:

Be careful that the rear floor service hole cover does not mount on the protrusions of the floor panel when installing.

Install the floor carpet.

Установите правое заднее сиденье в сборе в салон.

ПРИМЕЧАНИЕ:

Соблюдайте осторожность, чтобы не повредить кузов автомобиля.

Закрепите заднюю часть правого заднего сиденья в сборе 2 болтами.

Момент затяжки:

Для моделей производства TMC:

42 Н*м{428 кгс*см, 31 фунт-сила-футов}

Для моделей производства TMUK, TMMT:

37 Н*м{377 кгс*см, 27 фунт-сила-футов}

Установите 2 фиксатора.

Закрепите переднюю часть правого заднего сиденья в сборе 2 болтами.

Момент затяжки:

Для моделей производства TMC:

42 Н*м{428 кгс*см, 31 фунт-сила-футов}

Для моделей производства TMUK, TMMT:

37 Н*м{377 кгс*см, 27 фунт-сила-футов}

Установите левое заднее сиденье в сборе в салон.

ПРИМЕЧАНИЕ:

Соблюдайте осторожность, чтобы не повредить кузов автомобиля.

Закрепите заднюю часть левого заднего сиденья в сборе 2 болтами.

Момент затяжки:

Для моделей производства TMC:

42 Н*м{428 кгс*см, 31 фунт-сила-футов}

Для моделей производства TMUK, TMMT:

37 Н*м{377 кгс*см, 27 фунт-сила-футов}

Установите 2 фиксатора.

Закрепите переднюю часть левого заднего сиденья в сборе 2 болтами.

Момент затяжки:

Для моделей производства TMC:

42 Н*м{428 кгс*см, 31 фунт-сила-футов}

Для моделей производства TMUK, TMMT:

37 Н*м{377 кгс*см, 27 фунт-сила-футов}
