Контактный Датчик Давления Масла Снятие. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Смазки 2Ad-Fhv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. REMOVE NO. 1 ENGINE COVER

  2. REMOVE RADIATOR UPPER AIR DEFLECTOR

  3. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

Контактный Датчик Давления Масла -- Снятие



1. REMOVE NO. 1 ENGINE COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Смазки 2Ad-Fhv.Система Смазки.Контактный Датчик Давления Масла Снятие

  1. Detach the 4 clips and remove the engine cover.

    ПРИМЕЧАНИЕ:
    1. Lift the area around the clips on the top of the engine cover.
    2. Do not suddenly lift the engine cover. Remove the cover slowly by detaching the clips on by one.
    3. Lift area A shown in the illustration particularly slowly because there is a cowl on the top of the area around A. Failure to do so may damage the cover.


2. REMOVE RADIATOR UPPER AIR DEFLECTOR


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 6 clips and upper radiator air deflector.



3. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

  1. Disconnect the oil pressure switch connector.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

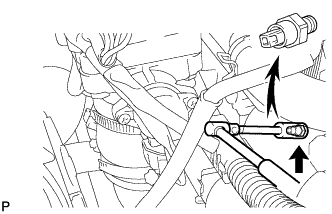

  1. Using a 24 mm deep socket wrench, remove the oil pressure switch.
