Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Запуска 1Nd-Tv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Стартер (Для 1,4 И 2,0 Квт) -- Снятие |
| 1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
| 2. REMOVE NO. 1 ENGINE COVER |
Disengage the 4 pins and remove No. 1 engine cover sub-assembly.
 |
| 3. REMOVE NO. 1 ENGINE UNDER COVER |
| 4. REMOVE STARTER ASSEMBLY (for Multi-Mode Manual Transaxle) |

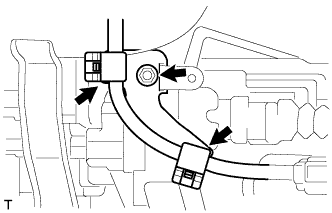

Separate the 2 harness clamps.
 |
Remove the bolt and wire harness bracket.
Remove the terminal cap.
 |
Separate the harness clamp.
Remove the nut and disconnect terminal 30.
Disconnect the connector.
Remove the 2 bolts starter assembly.

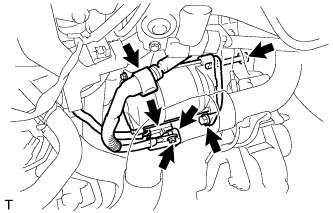

| 5. REMOVE STARTER ASSEMBLY (for Manual Transaxle) |
Remove the terminal cap.
|
Separate the harness clamp.
Remove the nut and disconnect terminal 30.
Disconnect the connector.
Remove the 2 bolts and starter assembly.
