Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Управления Двигателем 2Ad-Fhv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Датчик Массового Расхода Воздуха -- Проверка |
| 1. INSPECT MASS AIR FLOW METER |

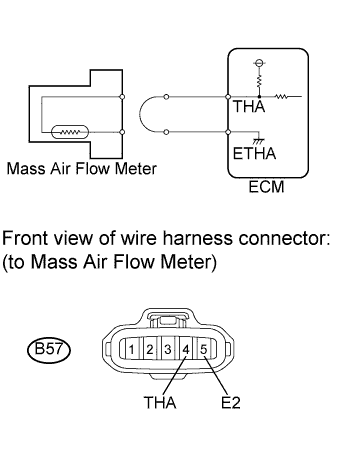

Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter shown in the illustration.
- OK:
- There is no foreign matter.
 |
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection Condition Specified Condition B57-4 (THA) - B57-5 (E2) -20°C (-4°F) 13.6 to 18.4 kΩ B57-4 (THA) - B57-5 (E2) 20°C (68°F) 2.21 to 2.69 kΩ B57-4 (THA) - B57-5 (E2) 60°C (140°F) 0.49 to 0.67 kΩ
 |
