Блок Цилиндров Замена. Corolla Auris

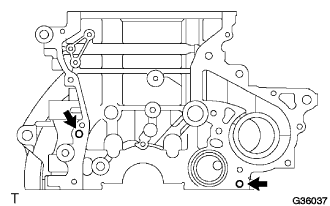

Remove the 2 oil pump ring pins indicated in the illustration from the cylinder block sub-assembly.

Using a plastic-faced hammer, tap in a new oil pump ring pin.

Standard protrusion:

18.5 to 19.5 mm (0.728 to 0.768 in.)

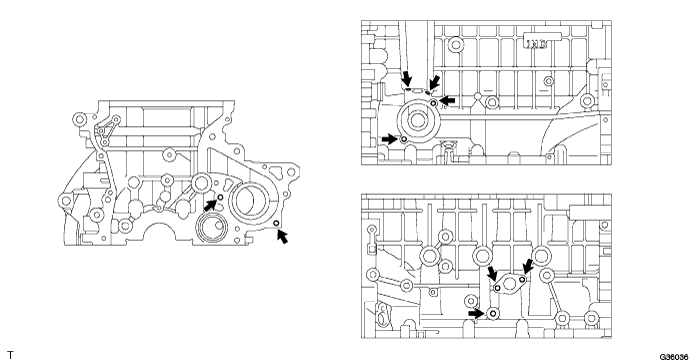

Remove the 9 stud bolts indicated in the illustration from the cylinder block sub-assembly.

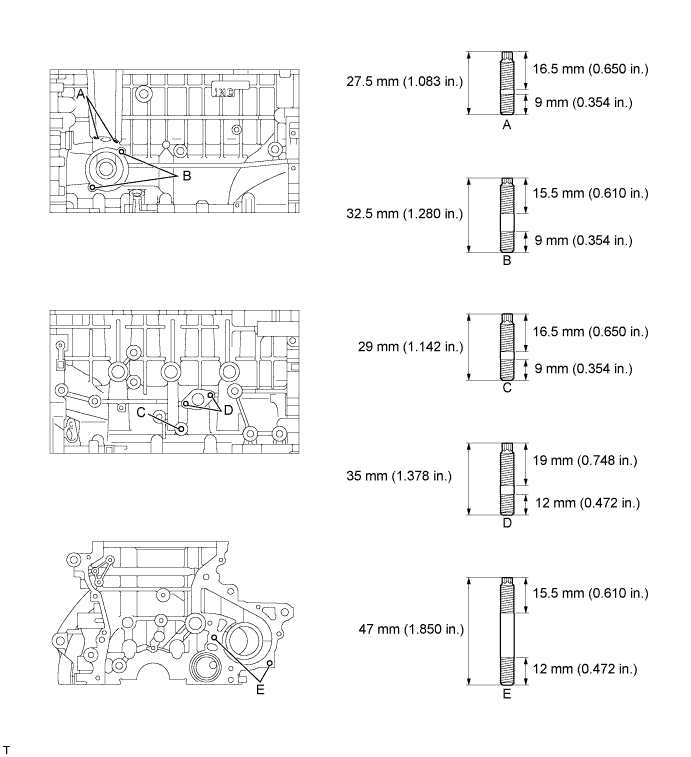

Install the 9 stud bolts in the positions shown in the illustration.

Момент затяжки:

5.0 Н*м{51 кгс*см, 44 фунт-сила-дюймов}

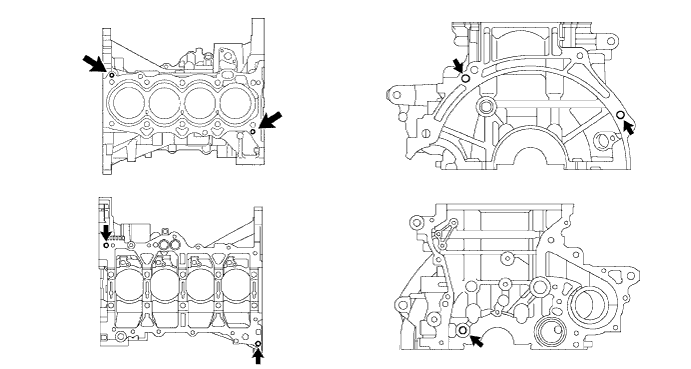

Remove the straight pins indicated in the illustration.

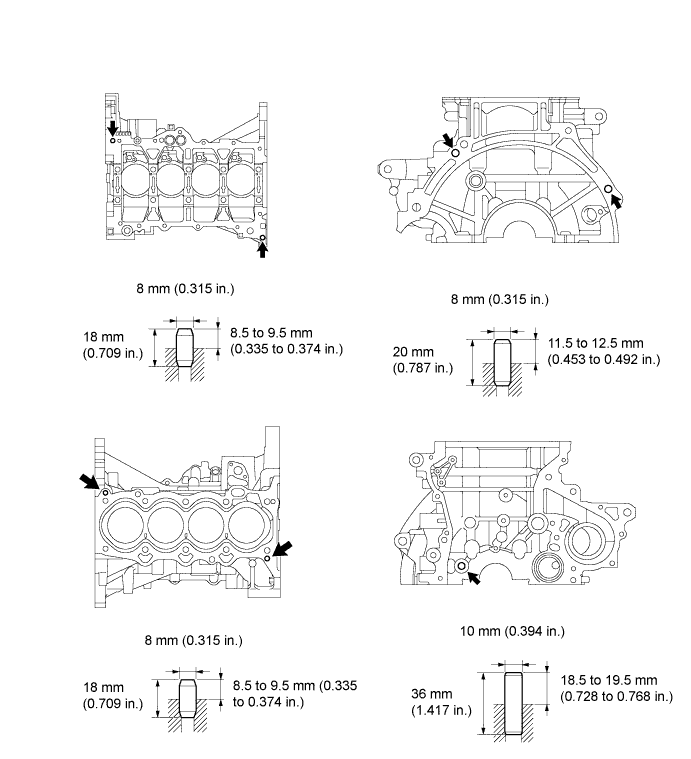

Using a plastic-faced hammer, tap in the new straight pins.
