Выпускной Коллектор -- Установка |
1. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
Install the No. 2 exhaust manifold heat insulator with the 4 bolts.
- Момент затяжки:
- 12 Н*м{122 кгс*см, 9 фунт-сила-футов}
2. INSTALL EXHAUST MANIFOLD |
Install a new exhaust manifold gasket.
Install the exhaust manifold with the 5 nuts.
- Момент затяжки:
- 21 Н*м{214 кгс*см, 16 фунт-сила-футов}
Install the manifold stay with the 3 bolts.
- Момент затяжки:
- 43 Н*м{439 кгс*см, 32 фунт-сила-футов}
4. INSTALL FRONT EXHAUST PIPE ASSEMBLY |
Using vernier calipers, measure the free length of the compression springs.
Minimum (front)
| 41.5 mm (1.63 in.)
|
Minimum (rear)
| 38.5 mm (1.52 in.)
|
- УКАЗАНИЕ:
- If the free length is less than the minimum, replace the compression spring.
Using a plastic hammer and wooden block, tap in a new gasket until its surface is flush with the exhaust manifold.
- ПРИМЕЧАНИЕ:
- Be careful with the installation direction of the gasket.
- Do not reuse the gasket.
- Do not damage the gasket.
- Do not push in the gasket by using the exhaust pipe when connecting it.
Install the exhaust pipe support, and then install the front exhaust pipe assembly with the 2 compression springs and 2 bolts.
- Момент затяжки:
- 43 Н*м{439 кгс*см, 32 фунт-сила-футов}
Using a plastic hammer and wooden block, tap in a new gasket until its surface is flush with the front exhaust pipe assembly.
- ПРИМЕЧАНИЕ:
- Be careful with the installation direction of the gasket.
- Do not reuse the gasket.
- Do not damage the gasket.
- Do not push in the gasket by using the exhaust pipe when connecting it.
Connect the front exhaust pipe assembly to the center exhaust pipe assembly with the 2 compression springs and 2 bolts.
- Момент затяжки:
- 43 Н*м{439 кгс*см, 32 фунт-сила-футов}
5. INSTALL HEATED OXYGEN SENSOR |

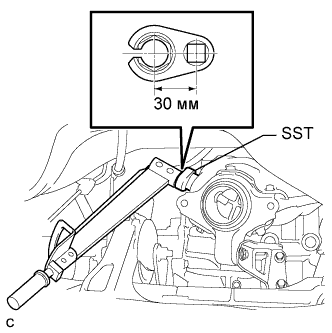

Using SST, install the oxygen sensor to the front exhaust pipe assembly.
- SST
- 09224-00010
- Момент затяжки:
- without SST:
- 44 Н*м{449 кгс*см, 32 фунт-сила-футов}
- with SST:
- 40 Н*м{408 кгс*см, 30 фунт-сила-футов}
- ПРИМЕЧАНИЕ:
- Use a torque wrench with a fulcrum length of 300 mm (11.81 in.)
- Do not damage the oxygen sensor.
Connect the oxygen sensor connector.
6. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
Install the No. 1 exhaust manifold heat insulator with the 4 bolts.
- Момент затяжки:
- 12 Н*м{122 кгс*см, 9 фунт-сила-футов}
7. INSTALL AIR FUEL RATIO SENSOR |
Using SST, install the air fuel ratio sensor to the exhaust manifold.
- SST
- 09224-00010
- Момент затяжки:
- without SST :
- 44 Н*м{449 кгс*см, 32 фунт-сила-футов}
- with SST:
- 40 Н*м{408 кгс*см, 30 фунт-сила-футов}
- ПРИМЕЧАНИЕ:
- Use a torque wrench with a fulcrum length of 300 mm (11.81 in.)
- Do not damage the heated oxygen sensor.
Connect the air fuel ratio sensor connector.
8. INSTALL COWL TOP PANEL OUTER (for Sedan) |
Установите наружную верхнюю панель кожуха и закрепите ее 10 болтами.
- Момент затяжки:
- 8,8 Н*м{90 кгс*см, 78 фунт-сила-дюймов}
Отогните правую водозащитную пластину, как показано на рисунке, и введите в зацепление зажим.
9. INSTALL COWL TOP PANEL OUTER (for Hatchback) |
Установите наружную верхнюю панель кожуха и закрепите ее 8 болтами.
- Момент затяжки:
- 8,8 Н*м{90 кгс*см, 78 фунт-сила-дюймов}
Отогните правую водозащитную пластину и брызгозащитное уплотнение воздуховода отопителя № 1 и отсоедините все зажимы, как показано на рисунке.
10. INSTALL COWL BODY MOUNTING REINFORCEMENT LH (for Hatchback) |
Установите левый усилитель крепления кожуха к кузову и закрепите его 3 болтами.
- Момент затяжки:
- 8,8 Н*м{90 кгс*см, 78 фунт-сила-дюймов}
11. INSTALL WINDSHIELD WIPER MOTOR AND LINK |
(See page Нажмите здесь)
12. INSTALL NO. 2 CYLINDER HEAD COVER |
Engage the 4 clips to install the V-bank cover.
- ПРИМЕЧАНИЕ:
- Be sure to engage the clips securely.
- Do not apply excessive force or do not hit the cover to engage the clips. This may cause the cover to break.
13. INSPECT FOR EXHAUST GAS LEAK |
Check that there are no exhaust gas leaks from the points (joints of the exhaust pipes and installation points of each sensor) shown in the illustration.
