СИСТЕМА SFI - Сигнальная цепь стартера


DESCRIPTION

While the engine is being cranked, current flows from terminal ST1 of the ignition switch to the park/neutral position switch (for automatic transaxle) or clutch pedal switch (for manual transaxle) and also flows to terminal STA of the ECM (STA Signal).

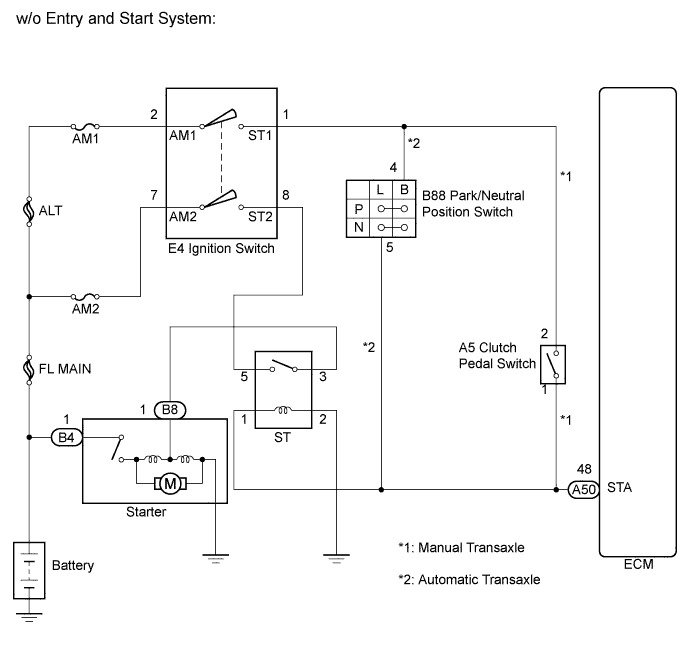

WIRING DIAGRAM


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера


INSPECTION PROCEDURE

УКАЗАНИЕ:
This chart is based on the premise that the engine can crank normally. If the engine cannot crank normally, proceed to the problem symptoms table (See page Нажмите здесь).
1.READ VALUE OF INTELLIGENT TESTER (STARTER SIGNAL)

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch on (IG).

  1. Turn the tester on.

  1. Enter the following menu items: Powertrain / Engine and ECT / Data List / Starter SIG.

  1. Read the value.

    OK:

    Ignition Switch Position
    		Starter Signal
    ON
    		OFF
    START
    		ON


NG
Перейдите к шагу 2
OK

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (Нажмите здесь)

2.CHECK ST RELAY (POWER SOURCE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера

  1. Remove the ST relay from the No. 5 relay block.

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester Connection
    		Condition
    		Specified Condition
    ST relay terminal 1 - Body ground
    		Engine cranking
    		9 to 14 V
    УКАЗАНИЕ:
    The engine does not crank because the relay is not installed.

  1. Reinstall the ST relay.

    Result:
    Result
    		Proceed to
    OK
    		A
    NG (Manual transaxle)
    		B
    NG (Automatic transaxle)
    		C


B
Перейдите к шагу 5

C
Перейдите к шагу 10
A


3.INSPECT ST RELAY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера

  1. Remove the ST relay from the No. 5 relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    3 - 5
    		Always
    		10 kΩ or higher
    3 - 5
    		Always
    		Below 1 Ω
    (Apply the battery voltage between terminals 1 and 2)

  1. Reinstall the ST relay.



NG
REPLACE ST RELAY
OK


4.CHECK HARNESS AND CONNECTOR (ST RELAY - BODY GROUND)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера

  1. Remove the ST relay from the No. 5 relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    ST relay terminal 2 - Body ground
    		Always
    		Below 1 Ω

  1. Reinstall the ST relay.

    Result:
    Result
    		Proceed to
    OK (Manual transaxle)
    		A
    OK (Automatic transaxle)
    		B
    NG
    		C


B
REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH)

C
REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - BODY GROUND)
A

REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - CLUTCH PEDAL SWITCH ASSEMBLY)

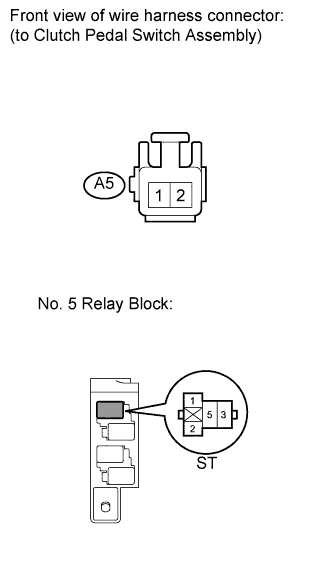

5.CHECK HARNESS AND CONNECTOR (ST RELAY - CLUTCH PEDAL SWITCH ASSEMBLY)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера

  1. Remove the ST relay from the No. 5 relay block.

  1. Disconnect the clutch pedal switch assembly connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    ST relay terminal 1 - A5-1
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    ST relay terminal 1 or A5-1 - Body ground
    		Always
    		10 kΩ or higher

  1. Reinstall the ST relay.

  1. Reconnect the clutch pedal switch assembly connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - CLUTCH PEDAL SWITCH ASSEMBLY)
OK

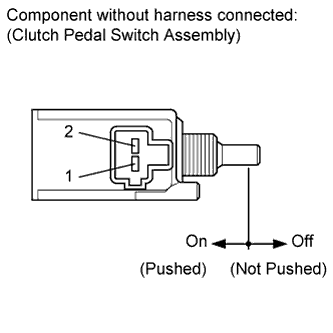

6.INSPECT CLUTCH PEDAL SWITCH ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера

  1. Disconnect the clutch pedal switch assembly connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Switch Condition
    		Specified Condition
    1 - 2
    		Pin not pushed
    		10 kΩ or higher
    Pin pushed
    		Below 1 Ω

  1. Reconnect the clutch pedal switch assembly connector.



NG
REPLACE CLUTCH PEDAL SWITCH ASSEMBLY (Нажмите здесь)
OK

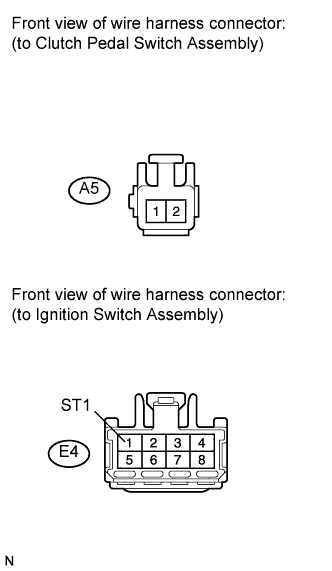

7.CHECK HARNESS AND CONNECTOR (CLUTCH PEDAL SWITCH ASSEMBLY - IGNITION SWITCH ASSEMBLY)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера

  1. Disconnect the clutch pedal switch assembly connector.

  1. Disconnect the ignition switch assembly connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    A5-2 - E4-1 (ST1)
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    A5-2 or E4-1 (ST1) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the clutch pedal switch assembly connector.

  1. Reconnect the ignition switch assembly connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (CLUTCH PEDAL SWITCH ASSEMBLY - IGNITION SWITCH ASSEMBLY)
OK


8.INSPECT IGNITION SWITCH ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера

  1. Disconnect the ignition switch assembly connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Ignition Switch Position
    		Specified Condition
    All terminals
    		LOCK
    		10 kΩ or higher
    E4-2 (AM1) - E4-1 (ST1)
    		START
    		Below 1 Ω

  1. Reconnect the ignition switch assembly connector.



NG
REPLACE IGNITION SWITCH ASSEMBLY (Нажмите здесь)
OK

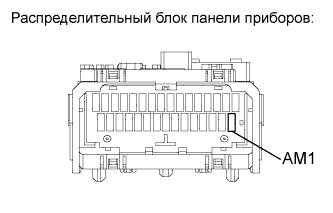

9.INSPECT FUSE (AM1 FUSE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера

  1. Remove the AM1 fuse from the instrument panel junction block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    AM1 fuse
    		Always
    		Below 1 Ω

  1. Reinstall the AM1 fuse.



NG
REPLACE FUSE (AM1 FUSE)
OK

REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH ASSEMBLY - BATTERY)

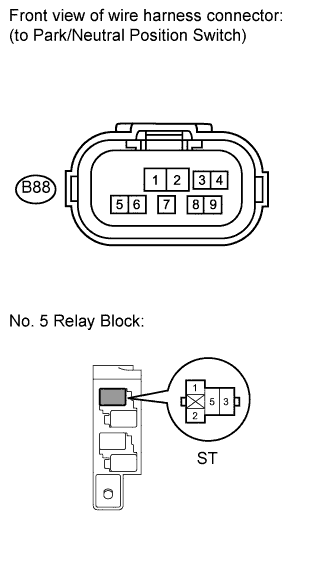

10.CHECK HARNESS AND CONNECTOR (ST RELAY - PARK/NEUTRAL POSITION SWITCH)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера

  1. Remove the ST relay from the No. 5 relay block.

  1. Disconnect the park/neutral position switch connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    ST relay terminal 1 - B88-5
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    ST relay terminal 1 or B88-5 - Body ground
    		Always
    		10 kΩ or higher

  1. Reinstall the ST relay.

  1. Reconnect the park/neutral position switch connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ST RELAY - PARK/NEUTRAL POSITION SWITCH)
OK


11.INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

  1. Inspect the park/neutral position switch assembly (See page Нажмите здесь).



NG
REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY (Нажмите здесь)
OK

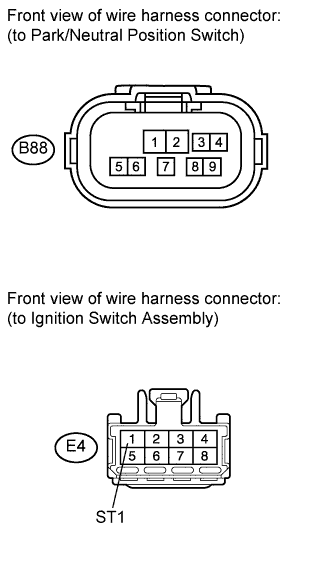

12.CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - IGNITION SWITCH ASSEMBLY)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера

  1. Disconnect the park/neutral position switch connector.

  1. Disconnect the ignition switch assembly connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    B88-4 - E4-1 (ST1)
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    B88-4 or E4-1 (ST1) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the park/neutral position switch connector.

  1. Reconnect the ignition switch assembly connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (PARK/NEUTRAL POSITION SWITCH - IGNITION SWITCH ASSEMBLY)
OK


13.INSPECT IGNITION SWITCH ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера

  1. Disconnect the ignition switch assembly connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Ignition Switch Position
    		Specified Condition
    All terminals
    		LOCK
    		10 kΩ or higher
    E4-2 (AM1) - E4-1 (ST1)
    		START
    		Below 1 Ω

  1. Reconnect the ignition switch assembly connector.



NG
REPLACE IGNITION SWITCH ASSEMBLY (Нажмите здесь)
OK


14.INSPECT FUSE (AM1 FUSE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Система Sfi Сигнальная Цепь Стартера

  1. Remove the AM1 fuse from the instrument panel junction block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    AM1 fuse
    		Always
    		Below 1 Ω

  1. Reinstall the AM1 fuse.



NG
REPLACE FUSE (AM1 FUSE)
OK

REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH ASSEMBLY - BATTERY)
