Головка Блока Цилиндров Повторная Сборка. Corolla Auris

Using a 10 mm straight hexagon wrench, install 3 new gaskets and the 3 straight screw plugs.

Момент затяжки:

44 Н*м{449 кгс*см, 33 фунт-сила-футов}

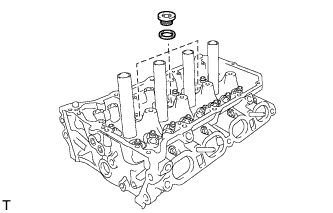

Install the valve spring seats to the cylinder head.

Apply a light coat of engine oil to a new oil seal.

ПРИМЕЧАНИЕ:

Pay close attention when installing the intake and exhaust oil seals. For example, installing the intake oil seal into the exhaust side or installing the exhaust oil seal to the intake side can cause installation problems later.

УКАЗАНИЕ:

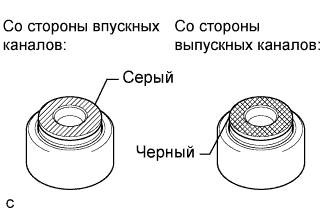

The intake valve oil seal is gray and the exhaust valve oil seal is black.

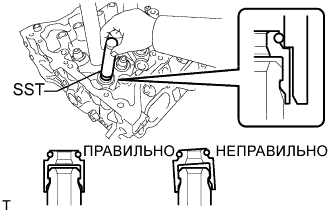

Using SST, push in the oil seal.

SST

09201-41020

ПРИМЕЧАНИЕ:

Failure to use SST will cause the seal to be damaged or improperly seated.

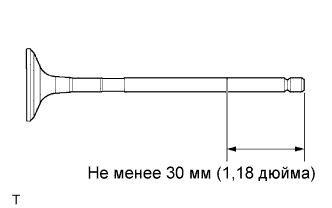

Sufficiently apply engine oil to the tip area of the intake valve shown in the illustration.

Install the valve, compression spring and spring retainer to the cylinder head.

ПРИМЕЧАНИЕ:

Install the same parts in the same combination to the original locations.

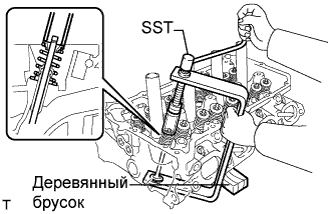

Using SST and wooden blocks, compress the spring and install the 2 retainer locks.

SST

09202-70020(09202-00010)

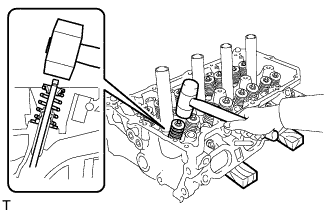

Using a plastic-faced hammer, lightly tap the valve stem tip to ensure a proper fit.

ПРИМЕЧАНИЕ:

1. Be careful not to damage the valve stem tip.

2. Be careful not to damage the retainer.

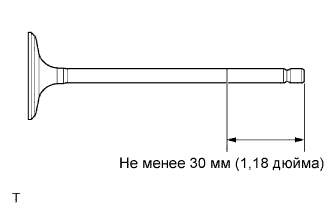

Sufficiently apply engine oil to the tip area of the exhaust valve shown in the illustration.

Install the valve, compression spring and spring retainer to the cylinder head.

ПРИМЕЧАНИЕ:

Install the same parts in the same combination to the original locations.

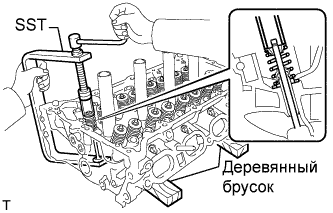

Using SST and wooden blocks, compress the spring and install the 2 retainer locks.

SST

09202-70020(09202-00010)

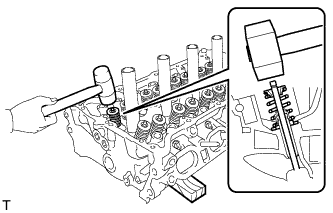

Using a plastic-faced hammer, lightly tap the valve stem tip to ensure a proper fit.

ПРИМЕЧАНИЕ:

1. Be careful not to damage the valve stem tip.

2. Be careful not to damage the retainer.


Apply a light coat of engine oil to the valve stem caps.

Install the valve stem caps to the cylinder head.
