Блок Цилиндров Замена. Corolla Auris
Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
REPLACE RING PIN
REPLACE STUD BOLT
REPLACE STRAIGHT PIN
REPLACE CONNECTING ROD SMALL END BUSH
- ПРИМЕЧАНИЕ:
- It is not necessary to remove the ring pin unless it is being replaced.

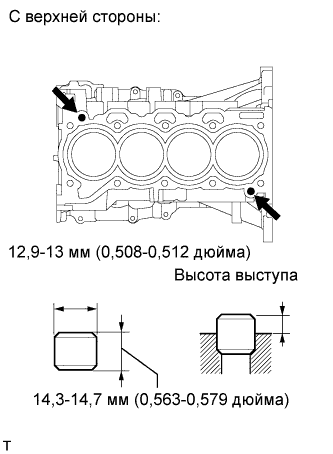

Using a plastic hammer, tap in the ring pin.
- Standard protrusion:
- 7.5 to 8.5 mm (0.295 to 0.335 in.)
- ПРИМЕЧАНИЕ:
- If the stud bolt is deformed or the threads are damaged, replace it.

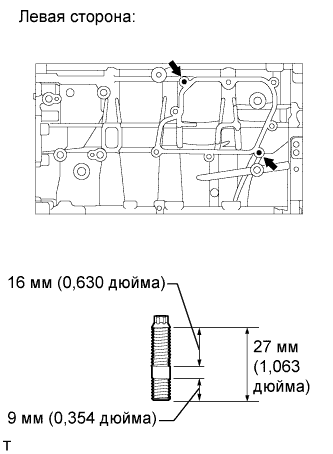

Using a "TORX" socket E6, install the stud bolt as shown in the illustration.
- Момент затяжки:
- 5.0 Н*м{51 кгс*см, 44 фунт-сила-дюймов}
- ПРИМЕЧАНИЕ:
- It is not necessary to remove the straight pin unless it is being replaced.

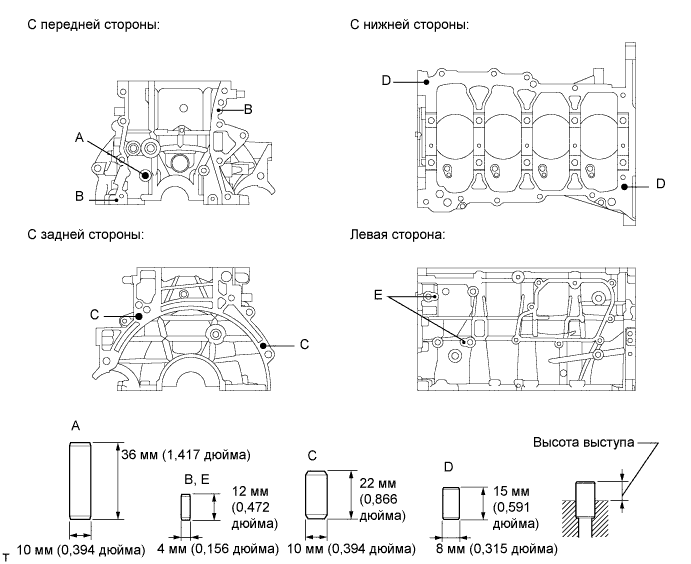

Using a plastic hammer, tap in the straight pin.
- Standard protrusion:
Item
| Protrusion
|
Pin A
| 18.5 to 19.5 mm (0.729 to 0.768 in.)
|
Pin B
| 5.0 to 7.0 mm (0.197 to 0.276 in.)
|
Pin C
| 11 to 13 mm (0.433 to 0.512 in.)
|
Pin D
| 5.0 to 7.0 mm (0.197 to 0.276 in.)
|
Pin E
| 5.0 to 6.0 mm (0.197 to 0.236 in.)
|
| 4. REPLACE CONNECTING ROD SMALL END BUSH |

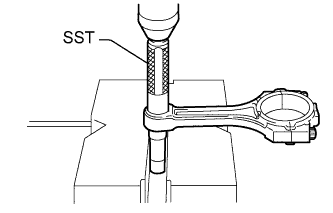

Using SST and a press, push out the bush.
- SST
- 09222-30010

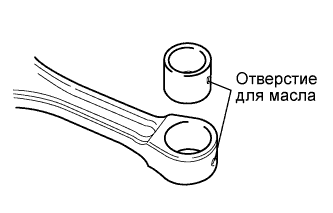

Align the oil holes of a new bush and the connecting rod.
Using SST and a press, push in the bush.
- SST
- 09222-30010

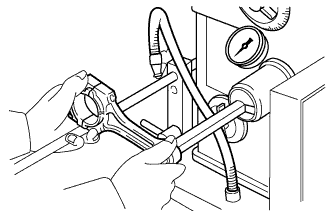

Using a pin hole grinder, hone the bush to obtain the standard specified clearance between the bush and piston pin.
- Standard oil clearance:
- -0.002 to 0.004 mm (-0.00007 to 0.0001 in.)

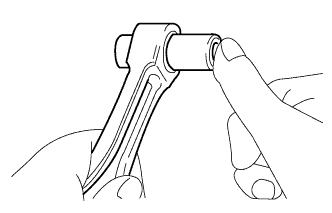

Coat the piston pin with engine oil. Push the piston pin into the connecting rod with your thumb to check that the piston pin fits at normal room temperature.
