Датчик Состава Топливовоздушной Смеси -- Проверка |

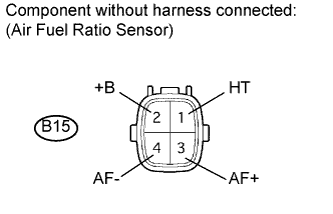

| 1. INSPECT AIR FUEL RATIO SENSOR |
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection Condition Specified Condition 1 (HT) - 2 (+B) 20°C (68°F) 1.8 to 3.4 Ω
 |
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection Condition Specified Condition 1 (HT) - 4 (AF-) - 10 kΩ or higher
