  1. INSPECT INTEGRATION RELAY

Интегрированное Реле -- Проверка



1. INSPECT INTEGRATION RELAY


  1. EFI MAIN RELAY:



      COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Интегрированное Реле Проверка

    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance:

      Tester Connection
      		Condition
      		Specified Condition

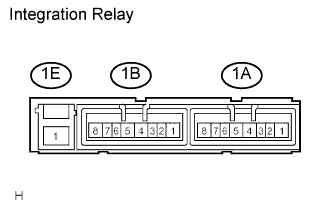

      Integration relay (1E-1) - Integration relay (1B-4)
      		Battery voltage is not applied to terminals 1B-3 and 1B-2
      		10 kΩ or higher
      Integration relay (1E-1) - Integration relay (1B-4)
      		Apply battery voltage between terminals 1B-3 and 1B-2
      		Below 1 Ω
      If the resistance is not as specified, replace the integration relay.


  1. IG2 RELAY:



      COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Интегрированное Реле Проверка

    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance:

      Tester Connection
      		Condition
      		Specified Condition
      Integration relay (1E-1) - Integration relay (1A-4)
      		Battery voltage is not applied to terminals 1A-2 and 1A-3
      		10 kΩ or higher
      Integration relay (1E-1) - Integration relay (1A-4)
      		Apply battery voltage between terminals 1A-2 and 1A-3
      		Below 1 Ω
      If the resistance is not as specified, replace the integration relay.
