Клапан Продувки Адсорбера Установка. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Снижения Токсичности Отработавших Газов 2Zr-Fe. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. INSTALL DUTY VACUUM SWITCHING VALVE

  2. INSTALL NO. 2 CYLINDER HEAD COVER

Клапан Продувки Адсорбера -- Установка



1. INSTALL DUTY VACUUM SWITCHING VALVE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

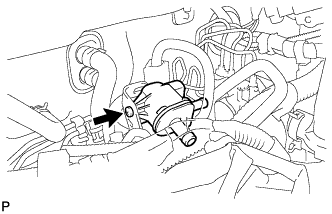

  1. Install the duty vacuum switching valve with the screw.

    Момент затяжки:
    3.4 Н*м{35 кгс*см, 30 фунт-сила-дюймов}


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Connect the duty vacuum switching valve connector, 2 vacuum hoses, and wire harness clamp.



2. INSTALL NO. 2 CYLINDER HEAD COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Engage the 4 clips to install the V-bank cover.

    ПРИМЕЧАНИЕ:
    1. Be sure to engage the clips securely.
    2. Do not apply excessive force or do not hit the cover to engage the clips. This may cause the cover to break.
