  1. REMOVE NO. 1 ENGINE COVER

  2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

  3. REMOVE AIR CLEANER CASE

  4. REMOVE ECM

Ecm -- Снятие


When the ECM is replaced:
ПРИМЕЧАНИЕ:
Read the thermal deterioration data and injector compensation codes stored in the ECM before replacement, and store the data in the intelligent tester.


1. REMOVE NO. 1 ENGINE COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Ad-Fhv.Система Ecd.Ecm Снятие

  1. Detach the 4 clips and remove the engine cover.

    ПРИМЕЧАНИЕ:
    1. Lift the area around the clips on the top of the engine cover.
    2. Do not suddenly lift the engine cover. Remove the cover slowly by detaching the clips on by one.
    3. Lift area A shown in the illustration particularly slowly because there is a cowl on the top of the area around A. Failure to do so may damage the cover.


2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the mass air flow meter connector.

  1. Disconnect the No. 2 ventilation hose.

  1. Disconnect the 2 clamps and band, and remove the air cleaner cap sub-assembly.

  1. Remove the air cleaner filter element.



3. REMOVE AIR CLEANER CASE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 3 bolts and air cleaner case.



4. REMOVE ECM


  1. Disconnect the 2 ECM connectors.



      COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

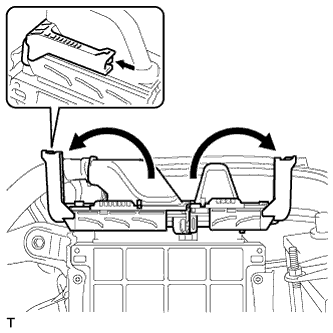

    1. Raise the 2 levers while pushing the locks on the levers, and disconnect the 2 ECM connectors.

      ПРИМЕЧАНИЕ:
      After disconnecting the connectors, make sure that dirt, water, or other foreign matter does not contact the connecting parts of the connectors.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 bolts from the ECM.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

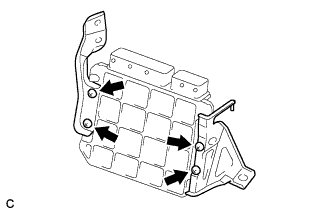

  1. Remove the 4 screws and ECM bracket.
