Ecm Снятие. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Управления Двигателем 2Zr-Fe. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE NO. 2 CYLINDER HEAD COVER

  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

  4. REMOVE AIR CLEANER CASE

  5. REMOVE ECM

Ecm -- Снятие



1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL


2. REMOVE NO. 2 CYLINDER HEAD COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Hold the rear of the cover and raise it to disengage the 2 clips on the front of the cover. Continue to raise the cover to disengage the 2 clips on the front of the cover and remove the cover.

    ПРИМЕЧАНИЕ:
    Attempting to disengage both front and rear clips at the same time may cause the cover to break.


3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

  1. Disconnect the mass air flow meter connector.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Ecm Снятие

  1. Disconnect the 2 clamps.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Ecm Снятие

  1. Disconnect the band and ventilation hose, and remove the air cleaner cap sub-assembly.



4. REMOVE AIR CLEANER CASE

  1. Separate the air cleaner filter element from the air cleaner.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 3 bolts from the air cleaner case.



5. REMOVE ECM


  1. Disconnect the 2 ECM connectors.



      COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

    1. Raise the 2 levers while pushing the locks on the levers, and disconnect the 2 ECM connectors.

      ПРИМЕЧАНИЕ:
      After disconnecting the connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the connectors.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

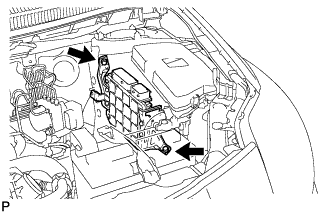

  1. Remove the 2 bolts from the ECM.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

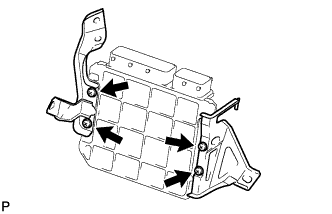

  1. Remove the 4 screws and ECM bracket.
