  1. DRAIN ENGINE COOLANT

  2. REMOVE NO. 2 CYLINDER HEAD COVER

  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

  4. REMOVE THROTTLE BODY ASSEMBLY

  5. REMOVE INTAKE MANIFOLD

  6. REMOVE KNOCK CONTROL SENSOR

Датчик Детонации -- Снятие



1. DRAIN ENGINE COOLANT

  1. Loosen the radiator drain cock plug.

    УКАЗАНИЕ:
    Collect the coolant in a container and dispose of it according to the regulations in your area.

  1. Remove the radiator reservoir cap.

    ПРЕДОСТЕРЕЖЕНИЕ:
    Do not remove the radiator reservoir cap while the engine and radiator are still hot.
    Pressurized, hot engine coolant and steam may be released and cause serious burns.


  1. Loosen the cylinder block drain cock plug.

    УКАЗАНИЕ:
    The plug is on the backside of the generator on the exhaust manifold side.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Датчик Детонации Снятие



2. REMOVE NO. 2 CYLINDER HEAD COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Hold the rear of the cover and raise it to disengage the 2 clips on the front of the cover. Continue to raise the cover to disengage the 2 clips on the front of the cover and remove the cover.

    ПРИМЕЧАНИЕ:
    Attempting to disengage both front and rear clips at the same time may cause the cover to break.


3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

  1. Disconnect the mass air flow meter connector.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Датчик Детонации Снятие

  1. Disconnect the 2 clamps.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Датчик Детонации Снятие

  1. Disconnect the band and ventilation hose, and remove the air cleaner cap sub-assembly.



4. REMOVE THROTTLE BODY ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the connector and 2 water hoses.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 bolts, 2 nuts and throttle body.

  1. Remove the gasket.



5. REMOVE INTAKE MANIFOLD

  1. Remove the bolt and wire harness bracket.

  1. Disconnect the 3 hoses.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Датчик Детонации Снятие

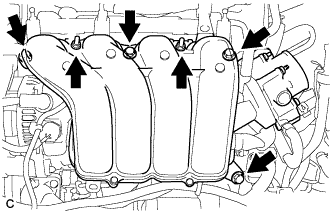

  1. Remove the 4 bolts, 2 nuts, intake manifold stay and intake manifold.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Датчик Детонации Снятие

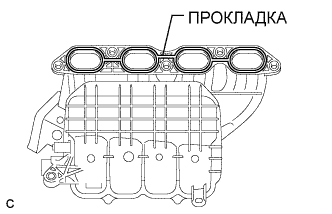

  1. Remove the gasket from the intake manifold.

  1. Using a "TORX" socket E6, remove the 2 stud bolts from the intake manifold.



6. REMOVE KNOCK CONTROL SENSOR


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

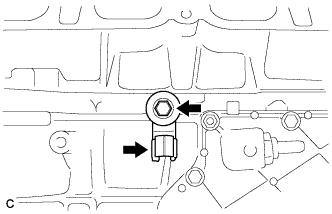

  1. Disconnect the knock control sensor connector.

  1. Remove the bolt and knock control sensor.
