Датчик Температуры Охлаждающей Жидкости Снятие. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Управления Двигателем 2Zr-Fe. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. DRAIN ENGINE COOLANT

  2. REMOVE NO. 2 CYLINDER HEAD COVER

  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

  4. REMOVE AIR CLEANER CASE

  5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

Датчик Температуры Охлаждающей Жидкости -- Снятие



1. DRAIN ENGINE COOLANT

  1. Loosen the radiator drain cock plug.

    УКАЗАНИЕ:
    Collect the coolant in a container and dispose of it according to the regulations in your area.

  1. Remove the radiator reservoir cap.

    ПРЕДОСТЕРЕЖЕНИЕ:
    Do not remove the radiator reservoir cap while the engine and radiator are still hot.
    Pressurized, hot engine coolant and steam may be released and cause serious burns.


  1. Loosen the cylinder block drain cock plug.

    УКАЗАНИЕ:
    The plug is on the backside of the generator on the exhaust manifold side.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Датчик Температуры Охлаждающей Жидкости Снятие



2. REMOVE NO. 2 CYLINDER HEAD COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Hold the rear of the cover and raise it to disengage the 2 clips on the front of the cover. Continue to raise the cover to disengage the 2 clips on the front of the cover and remove the cover.

    ПРИМЕЧАНИЕ:
    Attempting to disengage both front and rear clips at the same time may cause the cover to break.


3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

  1. Disconnect the mass air flow meter connector.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Датчик Температуры Охлаждающей Жидкости Снятие

  1. Disconnect the 2 clamps.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Датчик Температуры Охлаждающей Жидкости Снятие

  1. Disconnect the band and ventilation hose, and remove the air cleaner cap sub-assembly.



4. REMOVE AIR CLEANER CASE

  1. Separate the air cleaner filter element from the air cleaner.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 3 bolts from the air cleaner case.



5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 2Zr-Fe.Система Sfi.Датчик Температуры Охлаждающей Жидкости Снятие

  1. Disconnect the engine coolant temperature sensor connector.

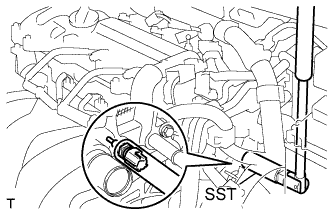

  1. Using SST, remove the engine coolant temperature sensor and gasket.

    SST
    09817-33190
