Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Управления Двигателем 2Zr-Fe. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Датчик Положения Коленчатого Вала -- Проверка |

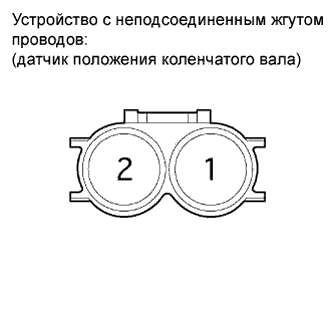

| 1. INSPECT CRANK POSITION SENSOR |
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection Condition Specified Condition 1 - 2 Cold 1630 to 2740 Ω Hot 2065 to 3225 Ω
- УКАЗАНИЕ:
- "Cold" and "Hot" mean the temperature of the coils themselves. "Cold" is from -10 to 50°C (14 to 122 °F) and "Hot" is from 50 to 100°C (122 to 212°F).
- If the resistance is not as specified, replace the sensor.
 |
