Гидравлический Клапан Изменения Фаз В Сборе Установка. Corolla Auris

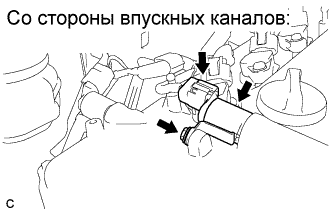

Intake side

1. Apply a light coat of engine oil to the O-ring of the camshaft timing oil control valve assembly.






2. Install the camshaft timing oil control valve assembly with the bolt.


   Момент затяжки:

   10 Н*м{102 кгс*см, 7 фунт-сила-футов}

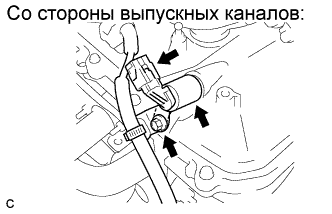

Exhaust side

1. Apply a light coat of engine oil to the O-ring of the camshaft timing oil control valve assembly.






2. Install the camshaft timing oil control valve assembly and wire harness bracket with the bolt.


   Момент затяжки:

   10 Н*м{102 кгс*см, 7 фунт-сила-футов}

Engage the 4 clips to install the V-bank cover.

ПРИМЕЧАНИЕ:

1. Be sure to engage the clips securely.

2. Do not apply excessive force or do not hit the cover to engage the clips. This may cause the cover to break.
