Датчик Положения Распредвала Установка. Corolla Auris

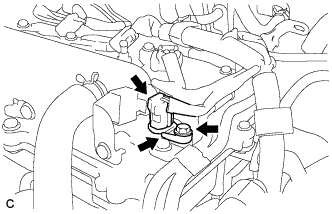

Intake side:

1. Apply a light coat of engine oil to the O-ring of the sensor.






2. Install the No. 1 crank position sensor with the bolt.


   Момент затяжки:

   10 Н*м{102 кгс*см, 7 фунт-сила-футов}

   ПРИМЕЧАНИЕ:

   Make sure that the O-ring is not cracked or jammed when installing it.

3. Connect the No. 1 crank position sensor connector.

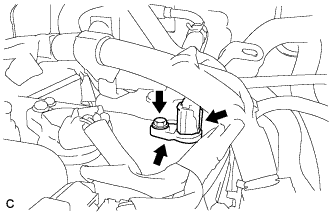

Exhaust side:

1. Apply a light coat of engine oil to the O-ring of the sensor.






2. Install the No. 1 crank position sensor with the bolt.


   Момент затяжки:

   10 Н*м{102 кгс*см, 7 фунт-сила-футов}

   ПРИМЕЧАНИЕ:

   Make sure that the O-ring is not cracked or jammed when installing it.

3. Connect the No. 1 crank position sensor connector.


Engage the 4 clips to install the V-bank cover.

ПРИМЕЧАНИЕ:

1. Be sure to engage the clips securely.

2. Do not apply excessive force or do not hit the cover to engage the clips. This may cause the cover to break.
