Двигатель В Сборе Установка. Corolla Auris

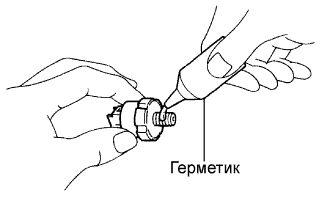

Apply adhesive to 2 or 3 threads of the oil pressure switch.

Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

Using a 24 mm deep socket wrench, install the oil pressure switch.

Момент затяжки:

15 Н*м{153 кгс*см, 11 фунт-сила-футов}

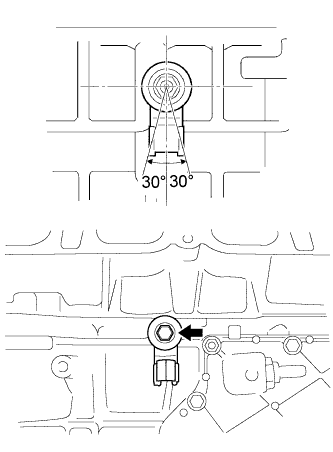

Install the knock control sensor with the bolt.

Момент затяжки:

21 Н*м{214 кгс*см, 16 фунт-сила-футов}

ПРИМЕЧАНИЕ:

Make sure that the knock control sensor is in the correct position.

Connect the knock control sensor connector.

Using a 19 mm deep socket wrench, install the temperature sensor.

Момент затяжки:

20 Н*м{204 кгс*см, 15 фунт-сила-футов}

Install the radio setting condenser with the bolt.

Момент затяжки:

10 Н*м{102 кгс*см, 7 фунт-сила-футов}

Install a new gasket on the thermostat.

Install the thermostat to the water inlet.

ПРИМЕЧАНИЕ:

The jiggle valve may be set within 10° on either side of the prescribed position.

Install the water inlet with the 2 nuts.

Момент затяжки:

10 Н*м{102 кгс*см, 7 фунт-сила-футов}

Install the water inlet hose with the 2 clamps.

Install the water by-pass hose with the clamp.

Install the No. 1 water by-pass pipe with the 2 bolts.

Момент затяжки:

21 Н*м{214 кгс*см, 16 фунт-сила-футов}

Connect the No. 3 water by-pass hose to the water inlet housing.

Install the ventilation hose.

Using a precision straightedge and feeler gauge, measure the warpage on the contact surface of the cylinder head.

Maximum warpage:

0.7 mm (0.028 in.)

УКАЗАНИЕ:

If the warpage is greater than the maximum, replace the manifold.

Install a new gasket onto the exhaust manifold.

Install the exhaust manifold with the 5 nuts.

Момент затяжки:

21 Н*м{214 кгс*см, 16 фунт-сила-футов}

Install the manifold stay with the 3 bolts.

Момент затяжки:

43 Н*м{439 кгс*см, 32 фунт-сила-футов}

Install the exhaust manifold heat insulator with the 4 bolts.

Момент затяжки:

12 Н*м{122 кгс*см, 9 фунт-сила-футов}

Apply engine oil to a new O-ring.

Install the oil level gauge with the bolt through a new O-ring.

Момент затяжки:

21 Н*м{214 кгс*см, 16 фунт-сила-футов}

Install the 4 ignition coils with the 4 bolts.

Момент затяжки:

10 Н*м{102 кгс*см, 7 фунт-сила-футов}

Install a new injector vibration insulator to the fuel injector assembly.

Apply a light coat of gasoline or spindle oil to the contact surfaces of the the O-ring of the fuel injector assembly.

While turning the fuel injector assembly left and right, install it onto the fuel delivery pipe sub-assembly.

ПРИМЕЧАНИЕ:

1. Do not twist the O-ring.

2. After installing the fuel injectors, check that they turn smoothly. If not, replace the O-ring with a new one.


Install the 2 No. 1 delivery pipe spacers onto the cylinder head.

ПРИМЕЧАНИЕ:

Install the No. 1 delivery pipe spacers in the correct direction.

Install the fuel delivery pipe sub-assembly with the 4 fuel injector assemblies then temporarily install the 2 bolts.

ПРИМЕЧАНИЕ:

1. Do not drop the fuel injectors when installing the fuel delivery pipe sub-assembly.

2. Check that the fuel injector assemblies rotate smoothly after installing the fuel delivery pipe sub-assembly.


Tighten the 2 bolts to the specified torque.

Момент затяжки:

21 Н*м{214 кгс*см, 15 фунт-сила-футов}

Install the bolt to secure the fuel delivery pipe sub-assembly.

Момент затяжки:

21 Н*м{214 кгс*см, 15 фунт-сила-футов}

Install the wire harness bracket with the bolt.

Insert the fuel tube sub-assembly connector into the fuel delivery pipe until a "click" sound can be heard.

ПРИМЕЧАНИЕ:

1. Check that there are no scratches or foreign matter around the disconnected parts of the fuel tube connector and pipe before performing this work.

2. After connecting the fuel tube, check that the fuel tube connector and pipe are securely connected by pulling them.


Install a new No. 2 fuel pipe clamp (Type B).

Install a new No. 2 fuel pump clamp (Type A).

Install a new gasket to the intake manifold.

Install the intake manifold and intake manifold stay with the 3 bolts and 2 nuts.

Момент затяжки:

28 Н*м{286 кгс*см, 21 фунт-сила-футов}

Connect the 2 water by-pass hoses.

Connect the ventilation hose to the intake manifold.

Install the air tube with the 2 bolts.

Момент затяжки:

10 Н*м{102 кгс*см, 7 фунт-сила-футов}

install the wire harness bracket.

Момент затяжки:

10 Н*м{102 кгс*см, 7 фунт-сила-футов}

Install the bolt and fan belt adjusting bar.

Момент затяжки:

19 Н*м{194 кгс*см, 14 фунт-сила-футов}

Attach the sling device and the engine with the chain block.

Remove the engine from the engine stand.

Using SST, hold the crankshaft.

SST

09213-54015(91651-60855)
09330-00021

Apply adhesive to the 2 or 3 end threads of the new bolts.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

Using several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.

Момент затяжки:

49 Н*м{500 кгс*см, 36 фунт-сила-футов}

Mark the front of the bolts with paint.

Retighten the 8 bolts by 90° in the same sequence.

Check that the paint marks are now at a 90° angle to the front.

Check that the crankshaft turns smoothly.

Using SST, hold the crankshaft.

SST

09213-54015(91651-60855)
09330-00021

Clean the bolt and the bolt hole.

Apply adhesive to 2 or 3 threads of the bolt end.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

Install the front spacer, drive plate and rear spacer with the 8 bolts. Uniformly tighten the 8 bolts.

Момент затяжки:

88 Н*м{897 кгс*см, 65 фунт-сила-футов}

Install the starter assembly with the 2 bolts.

Момент затяжки:

37 Н*м{377 кгс*см, 27 фунт-сила-футов}

Connect the connector.

Connect terminal 30 with the nut.

Момент затяжки:

9.8 Н*м{100 кгс*см, 87 фунт-сила-дюймов}

Close the terminal cap.

Install the wire harness bracket with the bolt.

Момент затяжки:

8.4 Н*м{85 кгс*см, 74 фунт-сила-дюймов}

Install the 2 harness clamps.

Install the rear engine mounting insulator to the engine mounting bracket with the through bolt.

Момент затяжки:

95 Н*м{969 кгс*см, 70 фунт-сила-футов}

Set the engine assembly with transaxle and front suspension crossmember on the engine lifter.

Operate the engine lifter and lift the engine assembly with transaxle and front suspension crossmember to the position where the engine mounting insulator RH and LH can be installed.

ПРЕДОСТЕРЕЖЕНИЕ:

Do not raise the engine more than necessary. If the engine is raised excessively, the vehicle may also be lifted up.

ПРИМЕЧАНИЕ:

1. Make sure that the engine is clear of all wiring and hoses.

2. While raising the engine into the vehicle, do not allow it to contact the vehicle.


Install the engine mounting insulator LH with the through bolt and nut.

Момент затяжки:

56 Н*м{571 кгс*см, 41 фунт-сила-футов}

Install the engine mounting insulator RH with the bolt and 2 nuts.

Момент затяжки:

Nut A:

95 Н*м{969 кгс*см, 70 фунт-сила-футов}

Nut B:

52 Н*м{530 кгс*см, 38 фунт-сила-футов}

Bolt:

95 Н*м{969 кгс*см, 70 фунт-сила-футов}

Install the front crossmember with the 4 bolts.

Момент затяжки:

96 Н*м{979 кгс*см, 71 фунт-сила-футов}

Install the engine mounting insulator front to the engine mounting bracket front with the bolt and nut.

Момент затяжки:

145 Н*м{1479 кгс*см, 107 фунт-сила-футов}

Подоприте поперечину передней подвески телескопическим гидравлическим домкратом.

Поочередно вставляя SST в контрольные отверстия на правом и левом подрамниках передней подвески, в несколько приемов затяните 2 болта A, 2 болта B и 2 гайки с правой и левой сторон с номинальным моментом затяжки.

SST

09670-00020

Момент затяжки:

Болт A:

145 Н*м{1479 кгс*см, 107 фунт-сила-футов}

Болт B:

95 Н*м{969 кгс*см, 70 фунт-сила-футов}

Гайка:

93 Н*м{948 кгс*см, 69 фунт-сила-футов}

Введите в зацепление 2 зажима и захват, и установите жгут проводов кислородного датчика на подрамник передней подвески в сборе.

Установите левую заднюю скобу элемента передней подвески и закрепите ее 3 болтами.

Момент затяжки:

Болт A:

145 Н*м{1479 кгс*см, 107 фунт-сила-футов}

Болт B :

93 Н*м{948 кгс*см, 69 фунт-сила-футов}

Установите левое усиление элемента передней подвески и закрепите его 4 болтами.

Момент затяжки:

96 Н*м{979 кгс*см, 71 фунт-сила-футов}

ПРИМЕЧАНИЕ:

Предварительно затяните болты A и B, а затем полностью затяните 4 болта в следующем порядке: C, B, D и A.

Установите правое усиление элемента передней подвески и закрепите его 4 болтами.

Момент затяжки:

96 Н*м{979 кгс*см, 71 фунт-сила-футов}

ПРИМЕЧАНИЕ:

Предварительно затяните болты A и B, а затем полностью затяните 4 болта в следующем порядке: C, B, D и A.

Установите нижнее усиление переднего кронштейна опоры двигателя и закрепите его 2 болтами.

Момент затяжки:

96 Н*м{979 кгс*см, 71 фунт-сила-футов}

Apply a few drops of adhesive to 2 threads on the tip of the 6 torque converter clutch mounting bolts.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

Install the 6 torque converter set bolts while holding the crankshaft pulley bolt with a wrench.

Момент затяжки:

28 Н*м{286 кгс*см, 21 фунт-сила-футов}

ПРИМЕЧАНИЕ:

First install the black colored bolt, and then install the remaining 5 bolts.

Install the flywheel housing under cover to the automatic transaxle.

Смажьте шлицевую часть вала внутреннего шарнира трансмиссионным маслом.

Совместите шлицы валов и вбейте приводной вал с помощью латунного стержня и молотка.

ПРИМЕЧАНИЕ:

1. Установите пружинное стопорное кольцо так, чтобы разрез был направлен вниз.

2. Будьте осторожны, чтобы не повредить сальник, чехол и пыльник.


Совместите метки и подсоедините передний приводной вал в сборе к левой передней полуоси в сборе.

Подсоедините нижний рычаг передней подвески к переднему нижнему шаровому шарниру и закрепите болтом и 2 гайками.

Момент затяжки:

89 Н*м{908 кгс*см, 66 фунт-сила-футов}

Установите стойку переднего стабилизатора в сборе на передний амортизатор с цилиндрической винтовой пружиной, закрепив ее гайкой.

Момент затяжки:

74 Н*м{755 кгс*см, 55 фунт-сила-футов}

ПРИМЕЧАНИЕ:

Если шаровой шарнир поворачивается вместе с гайкой, зафиксируйте болт пальца с помощью шестигранного ключа (на 6 мм).

Подсоедините наконечник левой рулевой тяги в сборе к поворотному кулаку и закрепите его гайкой.

Момент затяжки:

49 Н*м{500 кгс*см, 36 фунт-сила-футов}

ПРИМЕЧАНИЕ:

Если отверстия под шплинт не совпадают, дополнительно затяните гайку (до 60°).

Установите новый шплинт.

Установите передний датчик частоты вращения и передний гибкий шланг на передний амортизатор, закрепив их болтом и зажимом.

Момент затяжки:

29 Н*м{296 кгс*см, 21 фунт-сила-футов}

ПРИМЕЧАНИЕ:

Не допускайте перекручивания переднего датчика частоты вращения при установке.

УКАЗАНИЕ:

Сначала установите передний гибкий шланг, а затем кронштейн жгута проводов датчика частоты вращения.

Установите передний датчик частоты вращения на поворотный кулак и закрепите его болтом.

Момент затяжки:

8,5 Н*м{87 кгс*см, 76 фунт-сила-дюймов}

ПРИМЕЧАНИЕ:

Не допускайте перекручивания переднего датчика частоты вращения при установке.

С помощью молотка и зубила накерните гайку ступицы переднего колеса.

Using vernier calipers, measure the free length of the compression springs.

УКАЗАНИЕ:

If the free length is less than the minimum, replace the compression spring.

Using a plastic hammer and wooden block, tap in a new gasket until its surface is flush with the exhaust manifold.

ПРИМЕЧАНИЕ:

1. Be careful with the installation direction of the gasket.

2. Do not reuse the gasket.

3. Do not damage the gasket.

4. Do not push in the gasket by using the exhaust pipe when connecting it.


Install the exhaust pipe support, and then install the front exhaust pipe assembly with the 2 compression springs and 2 bolts.

Момент затяжки:

43 Н*м{439 кгс*см, 32 фунт-сила-футов}

Using a plastic hammer and wooden block, tap in a new gasket until its surface is flush with the front exhaust pipe assembly.

ПРИМЕЧАНИЕ:

1. Be careful with the installation direction of the gasket.

2. Do not reuse the gasket.

3. Do not damage the gasket.

4. Do not push in the gasket by using the exhaust pipe when connecting it.


Connect the front exhaust pipe assembly to the center exhaust pipe assembly with the 2 compression springs and 2 bolts.

Момент затяжки:

43 Н*м{439 кгс*см, 32 фунт-сила-футов}

Using SST, install the oxygen sensor to the front exhaust pipe assembly.

SST

09224-00010

Момент затяжки:

without SST:

44 Н*м{449 кгс*см, 32 фунт-сила-футов}

with SST:

40 Н*м{408 кгс*см, 30 фунт-сила-футов}

ПРИМЕЧАНИЕ:

1. Use a torque wrench with a fulcrum length of 300 mm (11.81 in.)

2. Do not damage the oxygen sensor.


Connect the oxygen sensor connector.

Установите фиксатор B на кузов, а также установите на кузов кожух выходного отверстия рулевой колонки № 1 в сборе и закрепите его фиксатором A.

ПРИМЕЧАНИЕ:

Убедитесь, что кромка кожуха выходного отверстия рулевой колонки №1 в сборе не повреждена.

Совместите метки на промежуточном валу № 2 рулевого управления в сборе и промежуточном валу рулевого управления в сборе.

Заверните болт.

Момент затяжки:

35 Н*м{360 кгс*см, 26 фунт-сила-футов}

Установите шумоизолирующую накладку кожуха выходного отверстия рулевой колонки и закрепите ее 2 фиксаторами.

Расправьте напольный коврик.

Install the earth wire to the engine room wire with the bolt and clamp (for Manual Transaxle).

Момент затяжки:

13 Н*м{130 кгс*см, 10 фунт-сила-футов}

Install the earth wire to the engine room wire with the bolt and clamp (for Automatic Transaxle).

Момент затяжки:

26 Н*м{260 кгс*см, 19 фунт-сила-футов}

Install the wire harness with the 2 nuts.

Момент затяжки:

8.4 Н*м{85 кгс*см, 74 фунт-сила-дюймов}

Connect the wire harness connector and wire harness clamp to the engine room junction block.

Connect the connector to the engine control computer with the clamp and lock lever.

Install the clutch release cylinder assembly with the 5 bolts and clutch cube bracket.

Момент затяжки:

Bolt A:

12 Н*м{120 кгс*см, 9 фунт-сила-футов}

Bolt B:

12 Н*м{122 кгс*см, 9 фунт-сила-футов}

Bolt C:

8.0 Н*м{82 кгс*см, 71 фунт-сила-дюймов}

С помощью торцевого ключа со сменной головкой "TORX" (E8) установите компрессор со шкивом в сборе, закрепив его 2 шпильками.

Момент затяжки:

9,8 Н*м{100 кгс*см, 7,2 фунт-сила-футов}

Закрепите компрессор со шкивом в сборе 2 болтами и 2 гайками.

УКАЗАНИЕ:

Затягивайте болты и гайки в порядке, показанном на рисунке.

Момент затяжки:

:

25 Н*м{255 кгс*см, 18,4 фунт-сила-футов}

Install the wire harness clamp bracket with the bolt.

Момент затяжки:

8.4 Н*м{86 кгс*см, 74 фунт-сила-дюймов}

Temporarily install the generator assembly with the 2 bolts.

Install the wire harness to terminal B with the nut and install the terminal cap.

Момент затяжки:

9.8 Н*м{100 кгс*см, 87 фунт-сила-дюймов}

Install the connector and wire harness clamp.

Install the belt.

Turn bolt C to adjust the tension of the V-ribbed belt.

Tighten bolts A and B.

Момент затяжки:

Bolt A:

19 Н*м{190 кгс*см, 14 фунт-сила-футов}

Bolt B:

43 Н*м{438 кгс*см, 32 фунт-сила-футов}

ПРИМЕЧАНИЕ:

Do not loosen bolt D.

Visually check the belt for excessive wear, frayed cords etc. If any defects are found, replace the belt.

УКАЗАНИЕ:

1. If any defects are found, replace the belt.

2. Cracks on the rib side of a belt are considered acceptable. If the belt has pieces missing from the ribs, it should be replaced.


After installing the drive belt, check that it fits properly in the ribbed grooves. Check with your hand to confirm that the belt has not slipped out of the grooves on the bottom of the crank pulley.

УКАЗАНИЕ:

1. A "new belt" is a belt which has been used for less than 5 minutes on a running engine.

2. A "used belt" is a belt which has been used on a running engine for 5 minutes or more.

3. After installing a new belt, run the engine for approximately 5 minutes and then recheck the tension.


Check the V belt deflection and tension.

Deflection:

Item	Specified Condition
New belt	7.5 to 8.6 mm (0.30 to 0.34 in.)
Used belt	8.0 to 10.0 mm (0.32 to 0.39 in.)

Tension:

Item	Specified Condition
New belt (w/ A/C)	688 to 940 N (70 to 96 kg, 155 to 211 lb)
New belt (w/o A/C)	688 to 884 N (70 to 90 kg, 155 to 199 lb)
Used belt	402 to 598 N (41 to 61 kg, 90 to 134 lb)

УКАЗАНИЕ:

1. Check the V belt deflection at the specified point.

2. Check the drive belt deflection at the specified point.

3. When installing a new belt, adjust its tension to the specified value.

4. When inspecting a belt which has been used for over 5 minutes, apply the used belt specifications.

5. When reinstalling a belt which has been used for over 5 minutes, adjust its deflection and tension to the intermediate values of each used belt specification.

6. V-ribbed belt tension and deflection should be checked after 2 revolutions of engine cranking.

7. When using a belt tension gauge, confirm its accuracy by using a master gauge first.


Connect the fuel tube connector and fuel pipe.

ПРЕДОСТЕРЕЖЕНИЕ:

Align the fuel tube connector with the pipe, then push the fuel tube connector in until the retainer makes a "click" sound. If the connection is tight, apply a small amount of engine oil to the tip of the pipe. After connecting, pull the pipe and connector to make sure that they are securely connected.

Engage the claw and install the No. 1 fuel pipe clamp.

Connect the heater inlet water hose with the clamp.

Connect the heater outlet water hose with the clamp.

Connect the union to check valve hose with the clamp.

Connect the 2 oil cooler hoses with the clamp.

Install the transmission control cable to the control cable bracket with 2 new clips.

Install the transmission control cable to the transaxle with the 2 clips.

Fix the control cable onto the control cable bracket with the clip.

Connect the control cable onto the control shaft lever with the nut.

Момент затяжки:

12 Н*м{122 кгс*см, 9 фунт-сила-футов}

Connect the control cable to the cable support.

Connect the clamp of the control cable with the bolt.

Момент затяжки:

12 Н*м{122 кгс*см, 9 фунт-сила-футов}

Connect the radiator hose outlet with the clamp.

Connect the radiator hose inlet with the clamp.

Install the battery carrier with the 4 bolts.

Момент затяжки:

19 Н*м{190 кгс*см, 14 фунт-сила-футов}

Connect the water pipe with the 2 bolts.

Момент затяжки:

19 Н*м{190 кгс*см, 14 фунт-сила-футов}

Connect the 2 wire harness clamps.

Install the battery clamp.

Момент затяжки:

for bolt:

17 Н*м{168 кгс*см, 12 фунт-сила-футов}

for nut:

3.5 Н*м{36 кгс*см, 31 фунт-сила-дюймов}

Install the battery terminal.

Момент затяжки:

5.4 Н*м{55 кгс*см, 48 фунт-сила-дюймов}

Install the air cleaner case with the 3 bolts.

Момент затяжки:

7.0 Н*м{71 кгс*см, 62 фунт-сила-дюймов}

Install the wire harness clamp to the air cleaner case.

Install the air cleaner filter element.

Connect the air cleaner cap sub-assembly with the band.

Connect the ventilation hose.

Connect the 2 clamps.

Connect the mass air flow meter connector.

Tighten the radiator drain cock plug.

Tighten the cylinder block drain cock plug.

Момент затяжки:

13 Н*м{130 кгс*см, 9 фунт-сила-футов}

Add TOYOTA Super Long Life Coolant (SLLC) to the radiator reservoir filler opening.

Standard capacity:

Item	Capacity
Engine coolant	for manual transaxle: 5.6 liters (5.9 US qts, 4.9 lmp. qts)
	for automatic transaxle: 5.5 liters (5.8 US qts, 4.8 lmp. qts)

УКАЗАНИЕ:

1. TOYOTA vehicles are filled with TOYOTA SLLC at the factory. In order to avoid damage to the engine cooling system and other technical problems, only use TOYOTA SLLC or similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, non-borate coolant with long-life hybrid organic acid technology (coolant with long-life hybrid organic acid technology consists of a combination of low phosphates and organic acids).

2. Contact your TOYOTA dealer for further details.


ПРИМЕЧАНИЕ:

Never use water as a substitute for engine coolant.

Remove the radiator cap and add coolant to line B of the reservoir tank.

Squeeze the inlet and outlet radiator hoses several times by hand, and then check the level of the coolant.
If the coolant level is low, add coolant.

Install the cap and valve, and warm up the engine sufficiently.

Bleed air from the cooling system.

ПРИМЕЧАНИЕ:

1. Before starting the engine, turn the A/C switch OFF.

2. Adjust the air conditioner set temperature to MAX (HOT).

3. Adjust the air conditioner set blower to Lo.


1. Warm up the engine until the thermostat opens. While the thermostat is open, allow the coolant to circulate for several minutes.


   УКАЗАНИЕ:

   The thermostat opening timing can be confirmed by squeezing the inlet radiator hose by hand, and sensing vibrations when the engine coolant starts to flow inside the hose.

   ПРЕДОСТЕРЕЖЕНИЕ:

   When squeezing the radiator hose:

   1. Wear protective gloves.

   2. Be careful as the radiator hoses are hot.

   3. Keep your hands away from the radiator fan.


2. After the engine has warmed up, run the engine using the following cycle for at least 7 minutes: at 3000 rpm for 5 seconds, at idle speed for 45 seconds. (Repeat this cycle at least 8 times.)


3. Squeeze the inlet and outlet radiator hoses several times by hand to bleed air from the system.


   ПРЕДОСТЕРЕЖЕНИЕ:

   When squeezing the radiator hose:

   1. Wear protective gloves.

   2. Be careful as the radiator hoses are hot.

   3. Keep your hands away from the radiator fan.


After the engine has cooled down, check that the coolant level is between FULL and LOW.
If the coolant level is low, add coolant to the FULL line on the reservoir tank.

Add fresh engine oil and install the oil filler cap.

Engine oil:

Oil Grade	Oil Viscosity (SAE)
API grade SL and energy-conserving API grade SM and energy-conserving ILSAC multigrade engine oil	0W-20 5W-20 5W-30 10W-30
API grade SL API grade SM	15W-40 20W-50

Capacity:

Drain and Refill with Oil Filter Change	Drain and Refill without Oil Filter Change	Dry Fill
4.2 liters (4.4 US qts, 3.7 lmp. qts)	3.9 liters (4.1 US qts, 3.4 lmp. qts)	4.7 liters (5.0 US qts, 4.1 lmp. qts)

Warm up the engine, then stop the engine and wait for 5 minutes.

Check that the engine oil level is between the low level and full level marks on the level gauge.
If low, check for leakage and add oil up to the full level mark.

ПРИМЕЧАНИЕ:

Do not fill with engine oil above the full level mark.

Check fuel pump operation.

1. Connect the intelligent tester to the DLC3.


2. Turn the ignition switch on (IG) and turn the intelligent tester main switch on.


   ПРИМЕЧАНИЕ:

   Do not start the engine.

3. Select the following menus: Powertrain / Engine / Active Test / Control the Fuel Pump /Speed.


4. Check for pressure in the fuel inlet tube from the fuel line. Check that sound of fuel flowing in the fuel tank can be heard. If no sound can be heard, check the integration relay, fuel pump, ECM and wiring connector.


Inspect for fuel leak.

1. Check that there are no fuel leaks anywhere on the system after performing maintenance. If there is a fuel leak, repair or replace parts as necessary.


Turn the ignition switch off.

Disconnect the intelligent tester from the DLC3.

Fill the radiator assembly with engine coolant, then attach a radiator cap tester.

Pump it to 108 kPa (1.1 kgf/cm², 15.6 psi), then check that the pressure does not drop.
If the pressure drops, check the hoses, radiator assembly and water pump assembly for leakage. If there are no signs or traces of external engine coolant leakage, check the heater core, cylinder block and head.

Check that there are no exhaust gas leaks from the points (joints of the exhaust pipes and installation points of each sensor) shown in the illustration.

When using an intelligent tester:

1. Warm up and stop the engine.


2. Connect the intelligent tester to the DLC3.


3. Turn the ignition switch on (IG).


4. Select the following menu items:
   Powertrain / Engine and ECT / Active Test / TC (TE1) / ON.


   УКАЗАНИЕ:

   Refer to the intelligent tester operator's manual for further details.

5. Inspect the ignition timing during idling.


   Ignition timing:

   8 to 12 degrees BTDC


   ПРИМЕЧАНИЕ:

   1. Turn all the electrical systems and the A/C off.

   2. Inspect the ignition timing with the cooling fan off.

   3. When checking the ignition timing, shift the transmission to the neutral position.


6. Select the following menu items: TC (TE1) / OFF.


7. Turn the ignition switch off.


8. Disconnect the intelligent tester from the DLC3.


When not using an intelligent tester:

1. Remove the No. 2 cylinder head cover (See page Нажмите здесь).






2. Pull out the wire harness (brown) shown in the illustration.


   ПРИМЕЧАНИЕ:

   After checking, wrap the wire harness with tape.

3. Warm up and stop the engine.


4. Connect the clip of the timing light to the wire harness.


   ПРИМЕЧАНИЕ:

   Use a timing light that detects the first signal.

5. Turn the ignition switch on (IG).






6. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.


   SST

   09843-18040


   ПРИМЕЧАНИЕ:

   Examine the terminal numbers before connecting them. Connecting the wrong terminals can damage the engine.

7. Inspect the ignition timing during idling.


   Ignition timing:

   8 to 12 degrees BTDC


   ПРИМЕЧАНИЕ:

   1. Turn all the electrical systems and the A/C off.

   2. Inspect the ignition timing with the cooling fan off.

   3. When checking the ignition timing, shift the transmission to the neutral position.


8. Disconnect terminals 13 (TC) and 4 (CG) of the DLC3.


9. Turn the ignition switch off.


10. Remove the timing light.


11. Install the No. 2 cylinder head cover (See page Нажмите здесь).


Warm up and stop the engine.

Connect the intelligent tester to the DLC3.

Turn the ignition switch on (IG).

Select the following menu items: Powertrain / Engine and ECT / Data List / Engine Speed.

УКАЗАНИЕ:

Refer to the intelligent tester operator's manual for further details.

Inspect the engine idling speed.

Idling speed:

600 to 700 rpm

ПРИМЕЧАНИЕ:

1. Turn all the electrical systems and the A/C off.

2. Inspect the idling speed with the cooling fan off.

3. When checking the idling speed, shift the transmission to either the neutral position or the parking position.


Turn the ignition switch off.

Disconnect the intelligent tester from the DLC3.

Start the engine.

Run the engine at 2500 rpm for approximately 180 seconds.

Insert the CO/HC meter testing probe at least 40 cm (1.3 ft.) into the tailpipe while idling.

Check the CO/HC concentration during idling and when the engine is running at 2500 rpm.

УКАЗАНИЕ:

When doing the 2 mode (with the engine idling/ running at 2500 rpm) test, the measuring procedures are determined by applicable local regulations.

If the CO/HC concentration does not comply with the regulations, troubleshoot in the order given below.

1. Check the heated oxygen sensor operation (See page Нажмите здесь).


2. See the table below for possible causes, then inspect the applicable parts and repair them if necessary.



   CO	HC	Problems	Possible Causes
   Normal	High	Rough idling	Faulty ignition: Incorrect timing Fouled, shorted or improperly gapped plugs Incorrect valve clearance Leakage from intake and exhaust valves Leakage from cylinders
   Low	High	Rough idling (Fluctuating HC reading)	Vacuum leaks: PCV hoses Intake manifold Throttle body Brake booster line Lean mixture causing misfire
   High	High	Rough idling (Black smoke from exhaust)	Restricted air cleaner filter element Plugged PCV valve Faulty EFI systems: Faulty pressure regulator Faulty engine coolant temperature sensor Faulty mass air flow meter Faulty ECM Faulty injectors Throttle body

Engage the 4 clips to install the V-bank cover.

ПРИМЕЧАНИЕ:

1. Be sure to engage the clips securely.

2. Do not apply excessive force or do not hit the cover to engage the clips. This may cause the cover to break.
