Топливный Бак Снятие. Corolla Auris

Отцепите 2 передних крепления подушки сиденья от кузова автомобиля.

ПРИМЕЧАНИЕ:

Поскольку рама подушки легко деформируется, аккуратно соблюдайте приведенные ниже указания.

1. Выберите крепление, которое будет отсоединяться первым. Расположите руки рядом с креплением, как показано на рисунке. Затем поднимите подушку сиденья, чтобы отсоединить крепление.


2. Повторите рассмотренную выше операцию для другого крепления.


Отсоедините 2 задних крепления подушки сиденья от спинки сиденья.

Снимите подушку сиденья.

Выверните 2 болта с передней стороны левого заднего сиденья в сборе.

Снимите 2 фиксатора.

Наклоните левое заднее сиденье в сборе вперед, чтобы вывернуть 2 болта, и снимите левое заднее сиденье в сборе.

ПРИМЕЧАНИЕ:

Соблюдайте осторожность, чтобы не повредить кузов автомобиля.

Выверните 2 болта с передней стороны правого заднего сиденья в сборе.

Снимите 2 фиксатора.

Наклоните правое заднее сиденье в сборе вперед, чтобы вывернуть 2 болта на задней части, и снимите правое заднее сиденье в сборе.

ПРИМЕЧАНИЕ:

Соблюдайте осторожность, чтобы не повредить кузов автомобиля.

Remove the rear floor service hole cover.

Disconnect the connector from the fuel suction tube assembly.

Start the engine. After the engine stops naturally, turn the ignition switch off.

УКАЗАНИЕ:

DTC P0171/25 may be set.

Crank the engine again and make sure that the engine does not start.

Remove the fuel tank cap and discharge the pressure from the fuel tank.

Remove the tube joint clip, then pull the fuel tube joint out of the plug of the fuel suction tube assembly.

ПРИМЕЧАНИЕ:

1. Check that there is no dirt or other foreign objects around the fuel tube joint before disconnecting it. Clean the joint if necessary.

2. It is necessary to prevent mud or dirt from entering the joint. If mud or dirt gets in the joint, the O-rings may not seal properly.

3. Only disconnect the joint by hand.

4. Do not bend, kink or twist the nylon tubes.

5. Protect the joint by covering it with a plastic bag.


Loosen the clip and remove the No. 1 fuel evaporation tube sub-assembly from the fuel suction tube assembly.

Disconnect the No. 1 charcoal canister outlet hose from the fuel suction tube assembly.

Release the retainer and disconnect the No. 2 fuel tank evaporation tube from the fuel suction tube assembly.

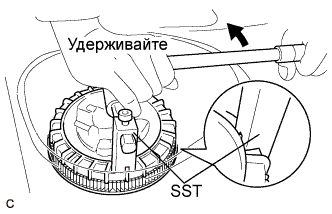

Using a 6 mm socket hexagon wrench, set SST to the fuel pump gauge retainer.

SST

09808-14020(09808-01410,09808-01420,09808-01430)

УКАЗАНИЕ:

Insert the notch of SST into the rib of the fuel pump gauge retainer.

Using SST, loosen the fuel pump gauge retainer.

SST

09808-14020(09808-01410,09808-01420,09808-01430)

ПРИМЕЧАНИЕ:

Do not use any other tools such as a screwdriver.

УКАЗАНИЕ:

Insert the notch of SST into the rib of the fuel pump gauge retainer.

Remove the fuel pump gauge retainer while holding the fuel suction tube assembly by hand.

Remove the fuel suction tube assembly from the fuel tank.

ПРИМЕЧАНИЕ:

Make sure that the fuel sender gauge arm does not bend.

Remove the gasket from the fuel tank.

Remove the nut, grommet and 2 bolts, then remove the rear floor side member cover RH.

Remove the nut, grommet and 2 bolts, then remove the rear floor side member cover LH.

Remove the 4 bolts, then remove the rear floor side member brace sub-assembly.

Remove the 3 bolts and the nut, then remove the No. 1 fuel tank protector sub-assembly.

Loosen the clip, then disconnect the fuel tank breather tube from the fuel tank.

Disconnect the No. 1 charcoal canister outlet hose.

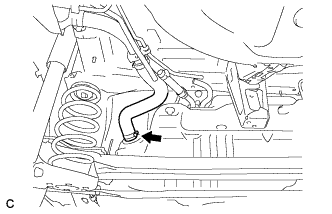

Loosen the clamp, then disconnect the fuel tank to filler pipe hose from the fuel tank.

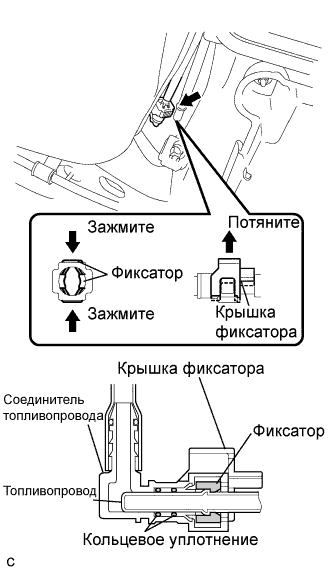

Pinch the projections of the retainer to disengage the lock claws, and pull it out as shown in the illustration.

ПРИМЕЧАНИЕ:

1. Check if there is any dirt like mud around the connector before this work, and clean the dirt away if necessary.

2. It is necessary to prevent mud or dirt from entering the connector. If mud enters the connector, the O-ring may not seal properly.

3. Do not use any tools for this work.

4. Do not bend, kink or twist the nylon tube by force.

5. After disconnecting the tube, cover the connector with a plastic bag.

6. If the connector and the pipe are stuck, pinch the tube between fingers, and turn the tube carefully to release it, then disconnect the tube.

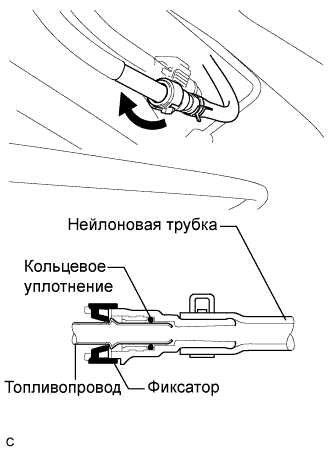

Release the lock as shown in the illustration, then pull and remove the fuel tank main tube sub-assembly.

Pull out the fuel tank main tube sub-assembly from the pipe.

ПРИМЕЧАНИЕ:

1. Remove any dirt or foreign objects on the fuel tube connector before starting this step.

2. Avoid any scratches or foreign objects on the parts when disconnecting as the fuel tube connector has the O-ring that seals the pipe.

3. Perform this work by hand. Do not use any other tools.

4. Do not forcibly bend, kink, twist or turn the nylon tube.

5. Protect the connected part by covering it with a plastic bag after disconnecting the fuel tank main tube sub-assembly.

6. If the fuel tube connector and pipe are stuck, push and pull them to release.

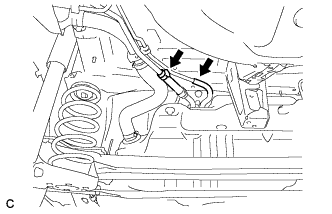

Remove the 2 bolts and the parking brake cable assembly.

Support the fuel tank using a transmission jack.

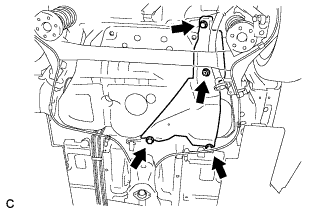

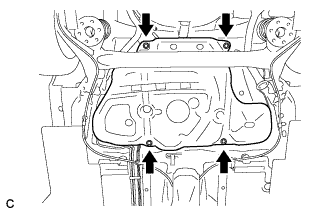

Remove the 4 bolts.

Lower the transmission jack to remove the fuel tank.

ПРИМЕЧАНИЕ:

1. Do not drop the fuel tank.

2. When removing the fuel tank, tilt it slightly to prevent it from interfering with the suspension arm or other surrounding parts.


Remove the No. 1 fuel tank cushion and 3 No. 2 fuel tank cushions.

Remove the No. 1 fuel evaporation tube sub-assembly from the fuel tank.

Remove the fuel tank main tube sub-assembly from the fuel tank.

Remove the clamp and No. 1 charcoal canister outlet hose.
