Масло И Масляный Фильтр Замена. Corolla Auris

Remove the oil pan drain plug and gasket, then drain the engine oil into a container.

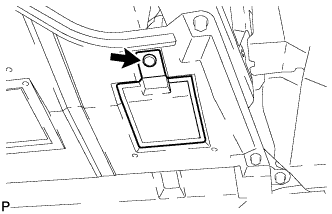

Remove the clip from the oil filter element service hole cover.

Remove the oil filter drain plug and O-ring, then insert the drain pipe into the oil filter cap and drain the engine oil into a container.

УКАЗАНИЕ:

The drain pipe is supplied with the oil filter element.

Using SST, remove the oil filter cap.

SST

09228-06501

Remove the oil filter element and 2 O-rings from the oil filter cap.

Clean the inside of oil filter cap, threads, and O-ring groove.

Apply a small amount of engine oil to a new O-ring and install it to the oil filter cap assembly.

Install a new oil filter element into the oil filter cap assembly.

Remove any dirt or foreign matter from the contact surfaces of the oil filter cap assembly (with oil filter element) and oil filter bracket.

Install the oil filter cap assembly (with oil filter element) to the oil filter bracket.

Using SST, tighten the oil filter cap.

SST

09228-06501

Момент затяжки:

40 Н*м{408 кгс*см, 30 фунт-сила-футов}

ПРИМЕЧАНИЕ:

Check and clean the oil filter installation surface.

Install a new O-ring to the drain plug.

Apply a small amount of engine oil to the O-ring.

Install the drain plug to the oil filter cap.

Момент затяжки:

13 Н*м{130 кгс*см, 9 фунт-сила-футов}

Install the oil pan drain plug and a new gasket.

Момент затяжки:

38 Н*м{387 кгс*см, 28 фунт-сила-футов}

Add engine oil according to the table below.

Engine oil:

Oil Grade	Oil Viscosity (SAE)
ACEA B1 (Using engine oil other than ACEA C2 (or B1) may damage the catalytic converter.)	5W-30

Standard capacity:

Item	Capacity
Drain and refill with oil filter change	5.9 liters (6.2 US qts, 5.2 Imp. qts)
Drain and refill without oil filter change	5.5 liters (5.8 US qts, 4.8 Imp. qts)
Dry fill	6.7 liters (7.1 US qts, 5.9 Imp. qts)

Start the engine. Make sure that no oil leaks from the connection point of the oil filter cap.

Warm up the engine, stop the engine, and wait for 5 minutes. The oil level should be between the low and full level marks of the dipstick.
If the level is below the low level mark, check for leakage and add oil until it reaches the full level mark.

ПРИМЕЧАНИЕ:

Do not fill the engine oil above the full level mark.

Install the engine oil filter element service hole cover with the clip.
