Электродвигатель Вентилятора Системы Охлаждения Установка. Corolla Auris

w/ Air Conditioning:

1. Install the 2 fan motors with the 6 screws.


2. Attach the 5 harness clamps to the fan shroud.


w/o Air Conditioning:

1. Install the No. 2 fan motor with the 3 screws.


2. Attach the harness clamp to the fan shroud.


w/ Air Conditioning:

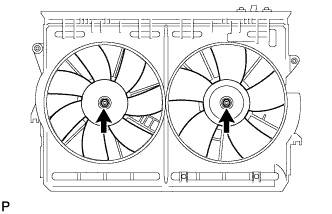

1. Install the 2 fans with the 2 nuts.


   Момент затяжки:

   6.3 Н*м{64 кгс*см, 55 фунт-сила-дюймов}

2. Inspect the fan motor operation.


w/o Air Conditioning:

1. Install the fan with the nut.


   Момент затяжки:

   6.3 Н*м{64 кгс*см, 55 фунт-сила-дюймов}

2. Inspect the fan motor operation.
