Каталитический Нейтрализатор В Выпускном Коллекторе (Для Cco) Снятие. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Снижения Токсичности Отработавших Газов 1Ad-Ftv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. REMOVE FRONT EXHAUST PIPE ASSEMBLY

  2. REMOVE NO. 1 MANIFOLD CONVERTER INSULATOR

  3. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

Каталитический Нейтрализатор В Выпускном Коллекторе (Для Cco) -- Снятие



1. REMOVE FRONT EXHAUST PIPE ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 bolts and 2 compression springs.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 bolts and 2 compression springs.

  1. Remove the exhaust pipe supports, then remove the front exhaust pipe assembly.



2. REMOVE NO. 1 MANIFOLD CONVERTER INSULATOR


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

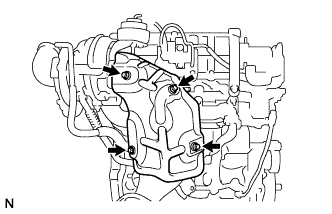

  1. Remove the 4 bolts and manifold converter insulator.



3. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

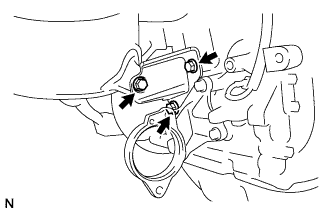

  1. Remove the bolt, nut and No. 1 manifold stay.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

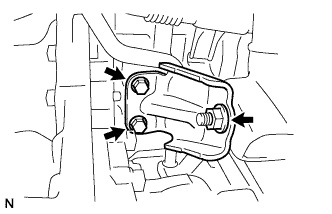

  1. Remove the 3 bolts and No. 2 manifold stay.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 bolts, nut and No. 2 exhaust manifold stay.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 3 nuts, manifold converter and gasket.
