  1. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

  2. REMOVE NO. 2 WATER BY-PASS HOSE

  3. REMOVE EGR COOLER ASSEMBLY

Охладитель Рог (Для Cco) -- Снятие



1. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY
See page Нажмите здесь


2. REMOVE NO. 2 WATER BY-PASS HOSE


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

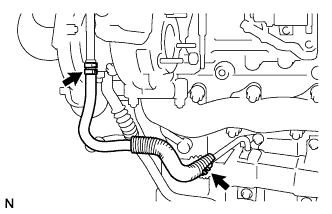

  1. Using pliers, grip the claws of the 2 clips and slide the 2 clips to remove the No. 2 water by-pass hose.

    УКАЗАНИЕ:
    Place a container under the connection before removing the water by-pass hose because coolant in the hose may spill out.


3. REMOVE EGR COOLER ASSEMBLY

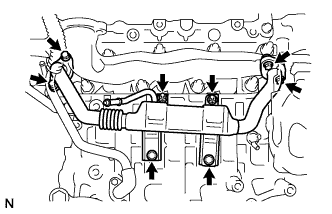

  1. Remove the 4 bolts.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 2 bolts, 2 nuts, EGR cooler, O-ring and 2 gaskets.
