Клапан Рог Установка. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Снижения Токсичности Отработавших Газов 1Ad-Ftv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. INSTALL EGR VALVE ASSEMBLY

  2. INSTALL NO. 2 EGR PIPE SUB-ASSEMBLY

  3. INSTALL NO. 1 ENGINE COVER

Клапан Рог -- Установка



1. INSTALL EGR VALVE ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Install a new gasket and the EGR valve with the 2 bolts.

    Момент затяжки:
    24 Н*м{245 кгс*см, 18 фунт-сила-футов}


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Connect the EGR valve connector.



2. INSTALL NO. 2 EGR PIPE SUB-ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Temporarily install 2 new gaskets and the No. 2 EGR pipe with the nut and bolt as shown in the illustration.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Temporarily install the bolt and nut as shown in the illustration.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

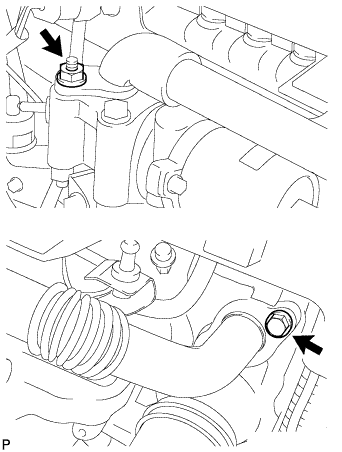

  1. Tighten the 2 bolts holding the EGR pipe to the cylinder head.

    Момент затяжки:
    24 Н*м{245 кгс*см, 18 фунт-сила-футов}


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Tighten the 2 nuts holding the EGR pipe to the EGR valve.

    Момент затяжки:
    24 Н*м{245 кгс*см, 18 фунт-сила-футов}


3. INSTALL NO. 1 ENGINE COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Attach the 4 clips to install the engine cover.
