Радиатор Снятие. Corolla Auris
Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
REMOVE FRONT BUMPER ASSEMBLY (for Sedan)
REMOVE FRONT BUMPER ASSEMBLY (for Hatchback)
REMOVE NO. 1 ENGINE UNDER COVER
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE BATTERY CLAMP SUB-ASSEMBLY
REMOVE BATTERY
REMOVE BATTERY TRAY
DRAIN ENGINE COOLANT
REMOVE THERMISTOR ASSEMBLY
REMOVE HOOD LOCK ASSEMBLY (for Sedan)
REMOVE HOOD LOCK ASSEMBLY (for Hatchback)
REMOVE INJECTOR DRIVER
REMOVE RADIATOR SUPPORT SUB-ASSEMBLY
REMOVE VACUUM TRANSMITTING PIPE SUB-ASSEMBLY
DISCONNECT AIR HOSE
DISCONNECT NO. 1 RADIATOR HOSE
DISCONNECT NO. 2 RADIATOR HOSE
REMOVE RADIATOR ASSEMBLY
REMOVE FAN SHROUD
| 1. REMOVE FRONT BUMPER ASSEMBLY (for Sedan) |
- УКАЗАНИЕ:
- See page Нажмите здесь
| 2. REMOVE FRONT BUMPER ASSEMBLY (for Hatchback) |
- УКАЗАНИЕ:
- See page Нажмите здесь
| 3. REMOVE NO. 1 ENGINE UNDER COVER |
| 4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL |
| 5. REMOVE BATTERY CLAMP SUB-ASSEMBLY |
Remove the bolt and loosen the nut.
Detach the hook of the battery clamp from the battery carrier, and then remove the battery clamp.
Loosen the radiator drain cock plug.
- УКАЗАНИЕ:
- Collect the coolant in a container and dispose of it according to the regulations in your area.
Remove the radiator reservoir cap.
- ПРЕДОСТЕРЕЖЕНИЕ:
- Do not remove the radiator reservoir cap while the engine and radiator are still hot.
- Pressurized, hot engine coolant and steam may be released and cause serious burns.
Loosen the cylinder block drain cock plug.
- УКАЗАНИЕ:
- The plug is on the backside of the generator on the exhaust manifold side.
| 9. REMOVE THERMISTOR ASSEMBLY |
Remove the clip and separate the thermistor assembly.
| 10. REMOVE HOOD LOCK ASSEMBLY (for Sedan) |
Отсоедините трос управления замком капота.
Выверните 3 болта и снимите замок капота в сборе.
| 11. REMOVE HOOD LOCK ASSEMBLY (for Hatchback) |
- УКАЗАНИЕ:
- w/o Engine Hood Courtesy Switch: See page Нажмите здесь
- w/ Engine Hood Courtesy Switch: See page Нажмите здесь
| 12. REMOVE INJECTOR DRIVER |

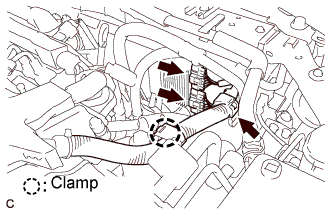

Remove the 2 clamps and disconnect the 2 injector driver connectors.

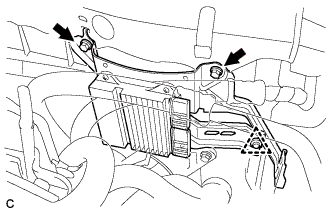

Remove the 2 bolts, and separate the clip then remove the injector driver assembly.
Remove the 4 bolts then remove the injector driver.
| 13. REMOVE RADIATOR SUPPORT SUB-ASSEMBLY |
Disconnect the horn connector.
Remove the 2 bolts, 2 clamps and the radiator reserve tank hose from the radiator support sub-assembly.
Disconnect the 2 connectors and clamp.
Disconnect the 2 clamps and hose.
Remove the 2 bolts and 2 upper radiator supports.
Remove the 2 radiator support cushions.
Remove the 4 bolts, upper radiator support sub-assembly LH and upper radiator support sub-assembly RH.

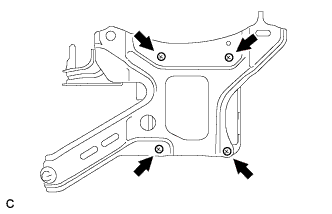

Remove the 4 bolts and radiator support sub-assembly.
| 14. REMOVE VACUUM TRANSMITTING PIPE SUB-ASSEMBLY |
Disconnect the vacuum transmitting pipe sub-assembly.
Separate the No.2 and No.3 air hoses.
- УКАЗАНИЕ:
- Pull out the air hoses after the retainer is pulled up.
| 16. DISCONNECT NO. 1 RADIATOR HOSE |
Disconnect the No. 1 radiator hose from the radiator.
| 17. DISCONNECT NO. 2 RADIATOR HOSE |
Disconnect the No. 2 radiator hose from the radiator.
| 18. REMOVE RADIATOR ASSEMBLY |
Remove the radiator assembly with the fan shroud.
- ПРИМЕЧАНИЕ:
- For vehicles with the air conditioning system, do not apply any excessive force to the cooler condenser assembly or pipe when removing the radiator assembly.
Remove the 2 radiator support cushions.
Remove the vacuum hose.
Remove the 8 bolts, lower radiator support sub-assembly LH, lower radiator support sub-assembly RH and intercooler.
Remove the 2 bolts and fan shroud.
