Термостат Проверка. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Охлаждения 1Ad-Ftv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. INSPECT THERMOSTAT

Термостат -- Проверка



1. INSPECT THERMOSTAT


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Охлаждения 1Ad-Ftv.Система Охлаждения.Термостат Проверка
УКАЗАНИЕ:

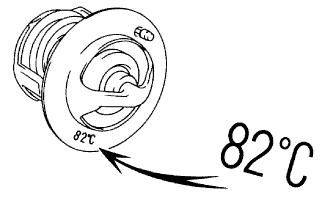

The valve opening temperature is inscribed on the thermostat.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Охлаждения 1Ad-Ftv.Система Охлаждения.Термостат Проверка

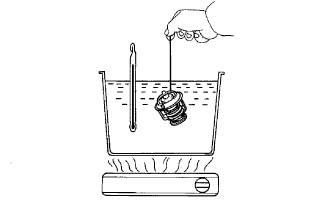

  1. Immerse the thermostat in water, and then gradually heat the water.

  1. Check the valve opening temperature of the thermostat.

    Standard valve opening temperature:
    80 to 84°C (176 to 183°F)
    If the valve opening temperature is not as specified, replace the thermostat.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Охлаждения 1Ad-Ftv.Система Охлаждения.Термостат Проверка

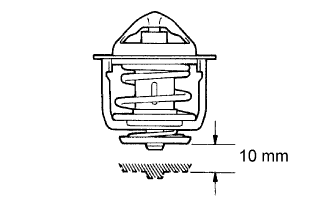

  1. Check the valve lift.

    Standard valve lift:
    10 mm (0.39 in.) or more at 95°C (203°F)
    If the valve lift is not as specified, replace the thermostat.

  1. Check that the valve is fully closed when the thermostat is at a low temperature (below 77°C (171°F)).
    If not fully closed, replace the thermostat.
