Датчик Температуры Охлаждающей Жидкости Снятие. Corolla Auris

Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Система Управления Двигателем 1Ad-Ftv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. REMOVE NO. 1 ENGINE COVER

  2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

  3. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

  4. DRAIN ENGINE COOLANT

  5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

Датчик Температуры Охлаждающей Жидкости -- Снятие



1. REMOVE NO. 1 ENGINE COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Detach the 4 clips and remove the engine cover.



2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Disconnect the mass air flow meter connector.

  1. Disconnect the No. 2 ventilation hose.

  1. Disconnect the 2 clamps and band, and remove the air cleaner cap sub-assembly.

  1. Remove the air cleaner filter element.



3. REMOVE AIR CLEANER CASE SUB-ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the 3 bolts and air cleaner case.



4. DRAIN ENGINE COOLANT

  1. Loosen the radiator drain cock plug.

    УКАЗАНИЕ:
    Collect the coolant in a container and dispose of it according to the regulations in your area.

  1. Remove the radiator reservoir cap.

    ПРЕДОСТЕРЕЖЕНИЕ:
    Do not remove the radiator reservoir cap while the engine and radiator are still hot.
    Pressurized, hot engine coolant and steam may be released and cause serious burns.


  1. Loosen the cylinder block drain cock plug.

    УКАЗАНИЕ:
    The plug is on the backside of the generator on the exhaust manifold side.


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Датчик Температуры Охлаждающей Жидкости Снятие



5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

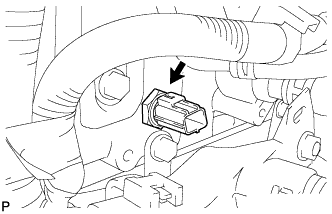

  1. Disconnect the sensor connector.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. Remove the sensor and gasket.
