Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Механическая Часть Двигателя 1Nd-Tv. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Передний Сальник Коленчатого Вала -- Снятие |
| 1. REMOVE FRONT WHEEL RH |
| 2. REMOVE ENGINE UNDER COVER REAR RH |
Remove the 5 clips and engine under cover rear RH.
| 3. REMOVE NO. 1 ENGINE UNDER COVER |
| 4. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH |
Выверните 4 болта и снимите правое усиление элемента передней подвески.
 |
| 5. REMOVE NO. 1 ENGINE COVER |
Disengage the 4 pins and remove No. 1 engine cover sub-assembly.
 |
| 6. REMOVE V-RIBBED BELT |
 |
Remove the 3 bolts and 2 wire harness clamps, then separate the wire harness.
Loosen bolts A and B.
 |
Remove the v-ribbed belt.
| 7. REMOVE CRANKSHAFT DAMPER SUB-ASSEMBLY |
Using SST, hold the crankshaft damper and loosen the crankshaft bolt.
- SST
- 09960-10010(09962-01000,09963-01000)
 |
| 8. REMOVE OIL PUMP SEAL |

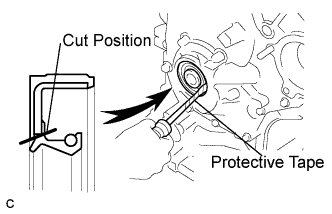

Using a knife, cut off the oil seal lip.
Using a screwdriver with its tip wrapped in protective tape, remove the oil pump seal.
- ПРИМЕЧАНИЕ:
- After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
 |
