DESCRIPTION

WIRING DIAGRAM

INSPECTION PROCEDURE

CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)

INSPECT ECM (IGSW VOLTAGE)

CHECK FUSE (EFI MAIN FUSE)

INSPECT ENGINE ROOM JUNCTION BLOCK (EFI MAIN RELAY)

CHECK HARNESS AND CONNECTOR (EFI MAIN RELAY - BODY GROUND)

CHECK HARNESS AND CONNECTOR (EFI MAIN RELAY - ECM)

CHECK HARNESS AND CONNECTOR (EFI MAIN RELAY - BATTERY)

CHECK FUSE (IGN FUSE)

CHECK FUSE (IG2 FUSE)

INSPECT INTEGRATION RELAY (IG2 RELAY)

CHECK HARNESS AND CONNECTOR (IGN FUSE - ECM)

CHECK HARNESS AND CONNECTOR (IG2 RELAY - IGN FUSE)

CHECK HARNESS AND CONNECTOR (IG2 RELAY - BODY GROUND)

CHECK HARNESS AND CONNECTOR (IG2 RELAY - BATTERY)

CHECK FUSE (IG2 NO. 2 FUSE)

CHECK HARNESS AND CONNECTOR (IG2 RELAY - IGNITION SWITCH)

INSPECT IGNITION SWITCH

CHECK FUSE (AM2 FUSE)

CHECK HARNESS AND CONNECTOR (IGNITION SWITCH - AM2 FUSE)

CHECK HARNESS AND CONNECTOR (IG2 RELAY - MAIN BODY ECU)

CHECK FUSE (AM2 NO. 2 FUSE)

INSPECT MAIN BODY ECU (AM2 VOLTAGE)

СИСТЕМА ECD - Цепь питания ECM


DESCRIPTION

When the ignition switch is turned on (IG), the battery voltage is applied to IGSW of the ECM. The output signal from the MREL terminal of the ECM causes a current to flow to the coil, closing the contacts of the engine room J/B (EFI relay) and supplying power to either terminal +B or +B2 of the ECM.

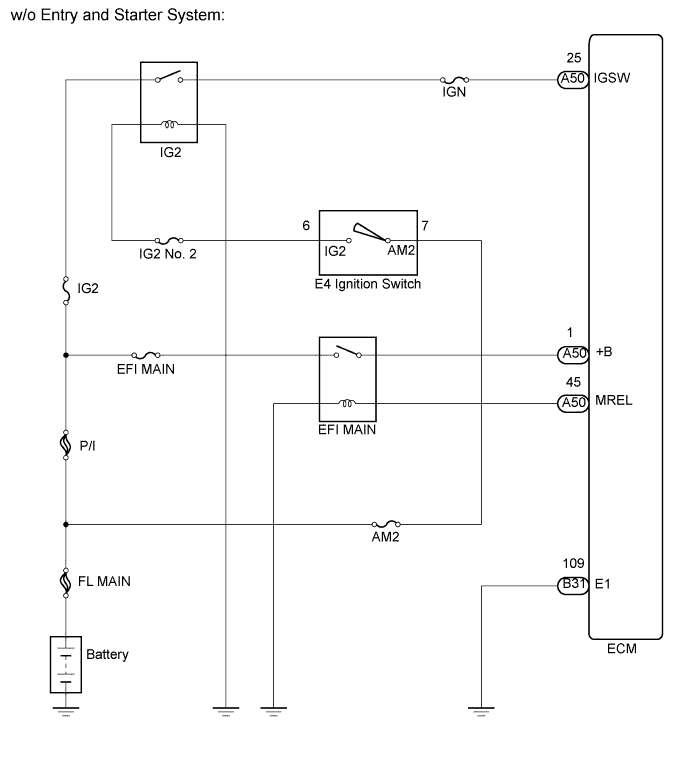

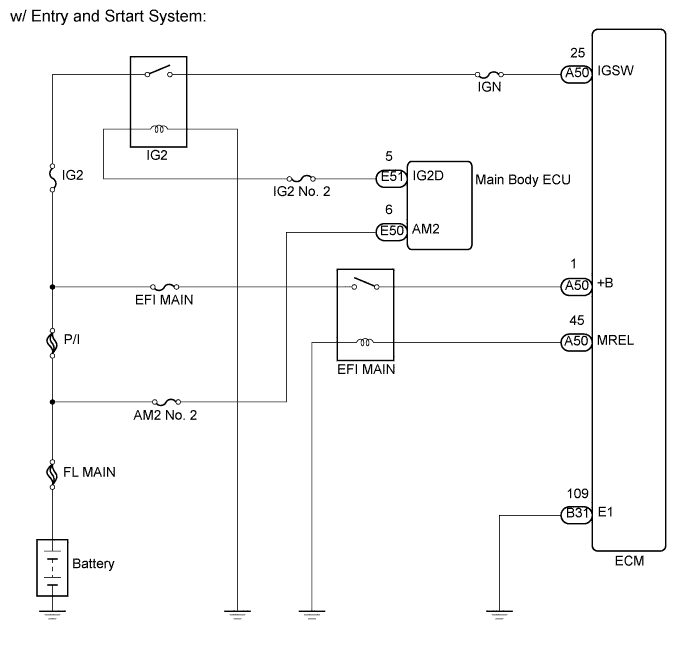

WIRING DIAGRAM


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm


COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm


INSPECTION PROCEDURE

ПРИМЕЧАНИЕ:
After replacing the ECM, the new ECM needs registration (See page Нажмите здесь) and initialization (See page Нажмите здесь).

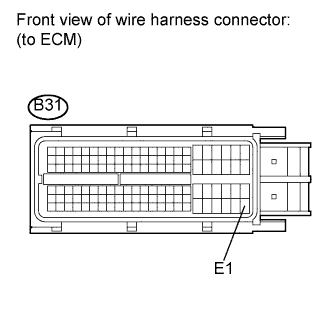

1.CHECK HARNESS AND CONNECTOR (ECM - BODY GROUND)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Disconnect the ECM connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    B31-109 (E1) - Body ground
    		Always
    		Below 1 Ω

  1. Reconnect the ECM connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - BODY GROUND)
OK

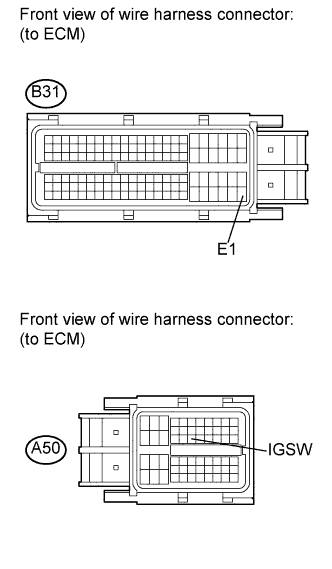

2.INSPECT ECM (IGSW VOLTAGE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Disconnect the ECM connectors.

  1. Turn the ignition switch on (IG).

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester Connection
    		Switch Condition
    		Specified Condition
    A50-25 (IGSW) - B31-109 (E1)
    		Ignition switch on (IG)
    		11 to 14 V

  1. Reconnect the ECM connectors.



NG
Перейдите к шагу 8
OK

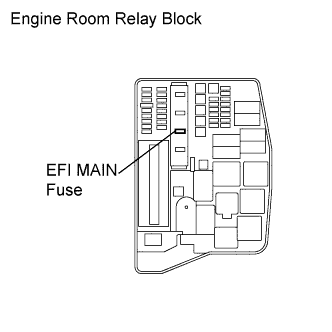

3.CHECK FUSE (EFI MAIN FUSE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the EFI MAIN fuse from the engine room relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    EFI MAIN fuse
    		Always
    		Below 1 Ω

  1. Reinstall the EFI MAIN fuse.



NG
REPLACE FUSE (EFI MAIN FUSE)
OK

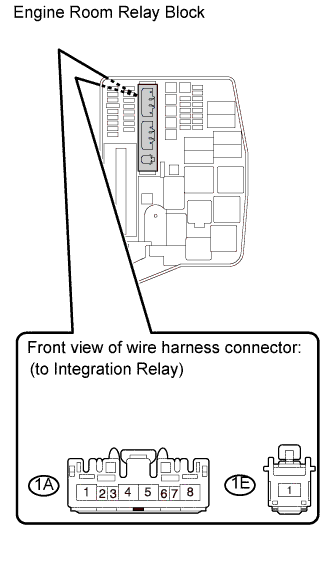

4.INSPECT ENGINE ROOM JUNCTION BLOCK (EFI MAIN RELAY)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the integration relay from the engine room relay block.

  1. Disconnect the integration relay connector.

  1. Measure the resistance between the terminals.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    1E-1 - 1B-4
    		Battery voltage is not applied between terminals 1B-2 and 1B-3
    		10 kΩ or higher
    Battery voltage is applied between terminals 1B-2 and 1B-3
    		Below 1 Ω

  1. Reconnect the integration relay connector.

  1. Reinstall the integration relay.



NG
REPLACE ENGINE ROOM JUNCTION BLOCK
OK

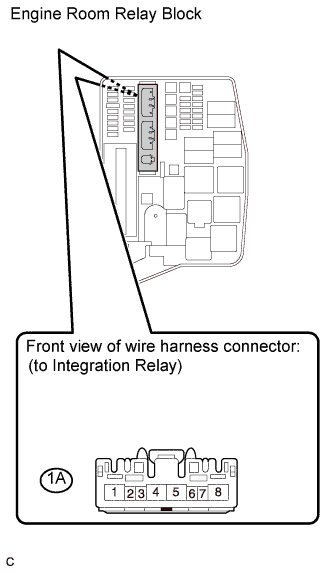

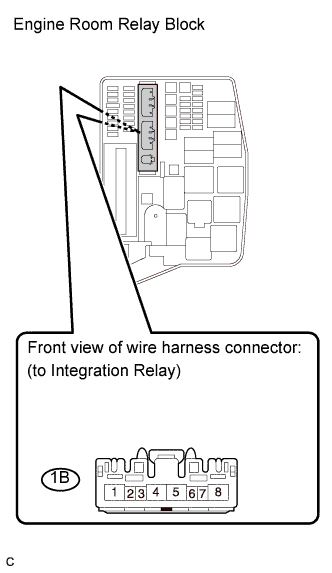

5.CHECK HARNESS AND CONNECTOR (EFI MAIN RELAY - BODY GROUND)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the integration relay from the engine room relay block.

  1. Disconnect the integration relay connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    1B-3 - Body ground
    		Always
    		Below 1 Ω

  1. Reconnect the integration relay connector.

  1. Reinstall the integration relay.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (EFI MAIN RELAY - BODY GROUND)
OK


6.CHECK HARNESS AND CONNECTOR (EFI MAIN RELAY - ECM)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

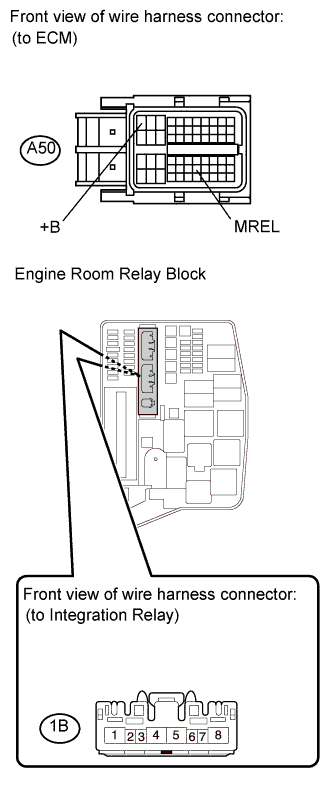

  1. Disconnect the ECM connector.

  1. Remove the integration relay from the engine room relay block.

  1. Disconnect the integration relay connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    1B-4 - A50-1 (+B)
    		Always
    		Below 1 Ω
    1B-2 - A50-45 (MREL)
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    1B-4 or A50-1 (+B) - Body ground
    		Always
    		10 kΩ or higher
    1B-2 or A50-45 (MREL) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the ECM connector.

  1. Reconnect the integration relay connector.

  1. Reinstall the integration relay.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (EFI MAIN RELAY - ECM)
OK


7.CHECK HARNESS AND CONNECTOR (EFI MAIN RELAY - BATTERY)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the integration relay from the engine room relay block.

  1. Disconnect the integration relay connector.

  1. Disconnect the negative battery terminal.

  1. Disconnect the positive battery terminal.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    1B-1 - Battery positive terminal
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    1B-1 or Battery positive terminal - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the integration relay connector.

  1. Reinstall the integration relay.

  1. Reconnect the positive battery terminal.

  1. Reconnect the negative battery terminal.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (EFI MAIN FUSE - BATTERY)
OK

REPLACE ECM (Нажмите здесь)

8.CHECK FUSE (IGN FUSE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

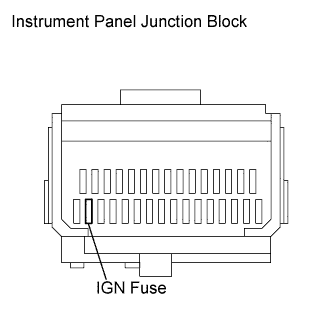

  1. Remove the IGN fuse from the instrument panel junction block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    IGN fuse
    		Always
    		Below 1 Ω

  1. Reinstall the IGN fuse.



NG
REPLACE FUSE (IGN FUSE)
OK


9.CHECK FUSE (IG2 FUSE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

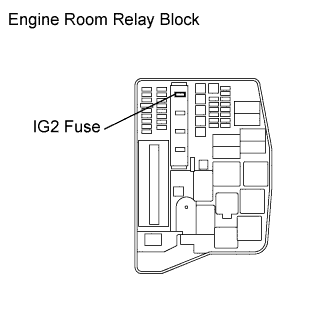

  1. Remove the IG2 fuse from the engine room relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    IG2 fuse
    		Always
    		Below 1 Ω

  1. Reinstall the IG2 fuse.



NG
REPLACE FUSE (IG2 FUSE)
OK


10.INSPECT INTEGRATION RELAY (IG2 RELAY)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

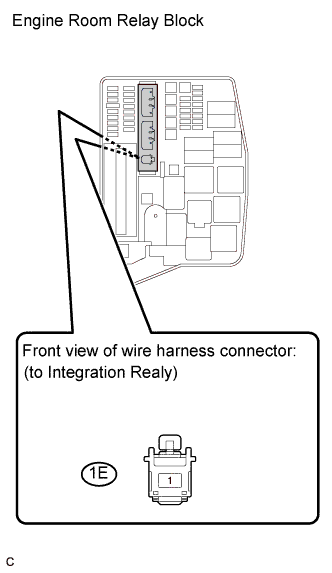

  1. Remove the integration relay from the engine room relay block.

  1. Disconnect the integration relay connector.

  1. Measure the resistance between the terminals.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    1E-1 - 1A-4
    		Battery voltage is not applied between terminals 1A-2 and 1A-3
    		10 kΩ or higher
    Battery voltage is applied between terminals 1A-2 and 1A-3
    		Below 1 Ω

  1. Reconnect the integration relay connector.

  1. Reinstall the integration relay.



NG
REPLACE INTEGRATION RELAY
OK

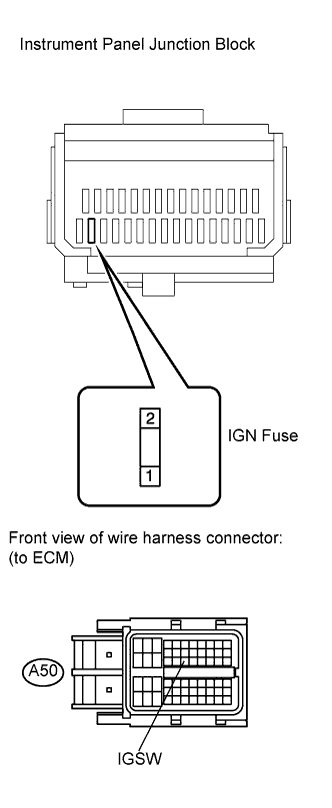

11.CHECK HARNESS AND CONNECTOR (IGN FUSE - ECM)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

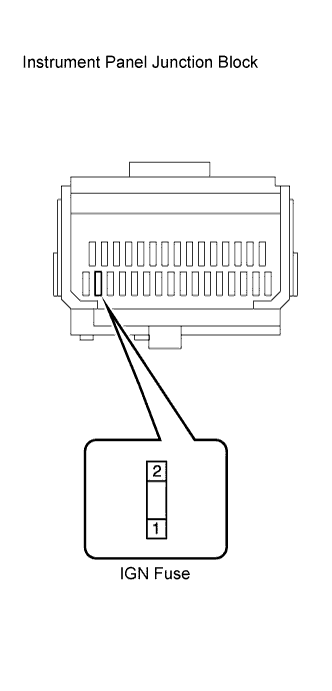

  1. Remove the IGN fuse from the instrument panel junction block.

  1. Disconnect the ECM connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    2 (IGN fuse) - A50-25 (IGSW)
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    2 (IGN fuse) or A50-25 (IGSW) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the ECM connector.

  1. Reinstall the IGN fuse.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (IGN FUSE - ECM)
OK

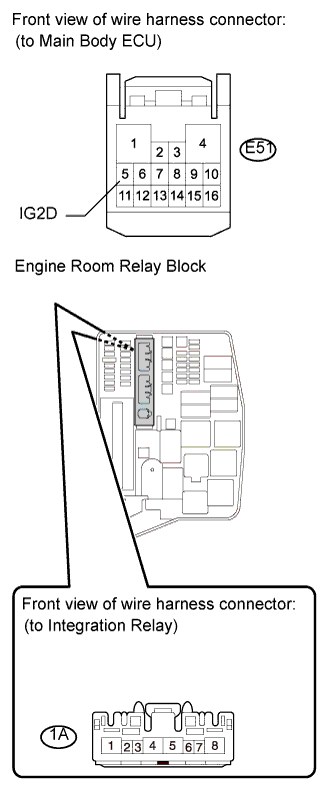

12.CHECK HARNESS AND CONNECTOR (IG2 RELAY - IGN FUSE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the integration relay from the engine room relay block.

  1. Disconnect the integration relay connector.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the IGN fuse from the instrument panel junction block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    1 (IGN fuse) - 1A-4
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    1 (IGN fuse) or 1A-4 - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the integration relay connector.

  1. Reinstall the integration relay.

  1. Reinstall the IGN fuse.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (IG2 RELAY - IGN FUSE)
OK


13.CHECK HARNESS AND CONNECTOR (IG2 RELAY - BODY GROUND)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the integration relay from the engine room relay block.

  1. Disconnect the integration relay connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    1A-3 - Body ground
    		Always
    		Below 1 Ω

  1. Reconnect the integration relay connector.

  1. Reinstall the integration relay.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (IG2 RELAY - BODY GROUND)
OK


14.CHECK HARNESS AND CONNECTOR (IG2 RELAY - BATTERY)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the integration relay from the engine room relay block.

  1. Disconnect the integration relay connector.

  1. Disconnect the negative battery terminal.

  1. Disconnect the positive battery terminal.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    1E-1 - Battery positive terminal
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    1E-1 or Battery positive terminal - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the integration relay connector.

  1. Reinstall the integration relay.

  1. Reconnect the positive battery terminal.

  1. Reconnect the negative battery terminal.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (IG2 RELAY - BATTERY)
OK


15.CHECK FUSE (IG2 NO. 2 FUSE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

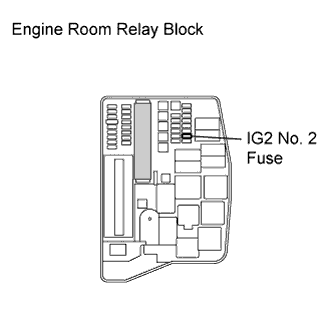

  1. Remove the IG2 No. 2 fuse from the engine room relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    IG2 No. 2 fuse
    		Always
    		Below 1 Ω

  1. Reinstall the IG2 No. 2 fuse.

    Result:

    Result
    		Proceed to
    OK (w/o Entry and Start System)
    		A
    OK (w/ Entry and Start System)
    		B
    NG
    		C


B
Перейдите к шагу 20

C
REPLACE FUSE (IG2 NO. 2 FUSE)
A

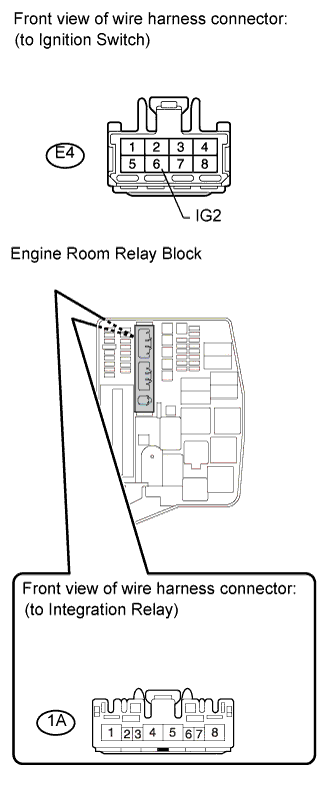

16.CHECK HARNESS AND CONNECTOR (IG2 RELAY - IGNITION SWITCH)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the integration relay from the engine room relay block.

  1. Disconnect the integration relay connector.

  1. Disconnect the ignition switch connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    1A-2 - E4-6 (IG2)
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    1A-2 or E4-6 (IG2) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the integration relay connector.

  1. Reinstall the integration relay.

  1. Reconnect the ignition switch connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (IG2 RELAY - IGNITION SWITCH)
OK

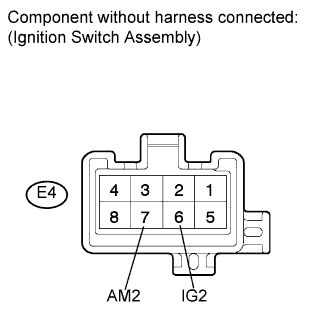

17.INSPECT IGNITION SWITCH


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Disconnect the ignition switch connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Ignition Switch Position
    		Specified Condition
    All Terminals
    		LOCK
    		10 kΩ or higher
    E4-7 (AM2) - E4-6 (IG2)
    		On (IG)
    		Below 1 Ω

  1. Reconnect the ignition switch connector.



NG
REPLACE IGNITION SWITCH (Нажмите здесь)
OK

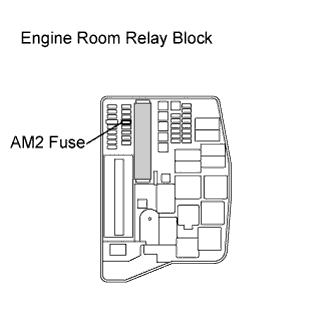

18.CHECK FUSE (AM2 FUSE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the AM2 fuse from the engine room relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    AM2 fuse
    		Always
    		Below 1 Ω

  1. Reinstall the AM2 fuse.



NG
REPLACE FUSE (AM2 FUSE)
OK

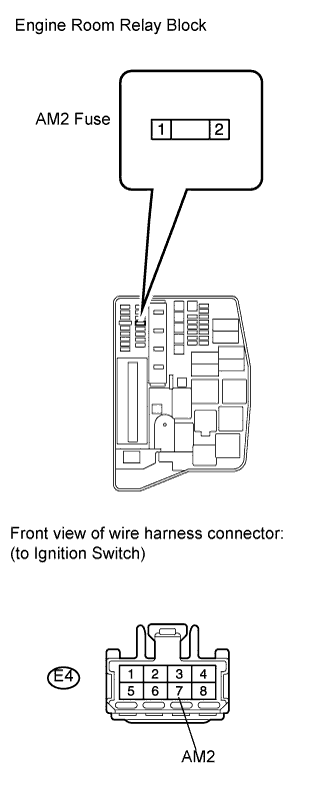

19.CHECK HARNESS AND CONNECTOR (IGNITION SWITCH - AM2 FUSE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the AM2 fuse from the engine room relay block.

  1. Disconnect the ignition switch connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    2 (AM2 fuse) - E4-7 (AM2)
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    2 (AM2 fuse) or E4-7 (AM2) - Body ground
    		Always
    		10 kΩ or higher

  1. Reinstall the AM2 fuse.

  1. Reconnect the ignition switch connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (IGNITION SWITCH - AM2 FUSE)
OK

REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - AM2 FUSE)

20.CHECK HARNESS AND CONNECTOR (IG2 RELAY - MAIN BODY ECU)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the integration relay from the engine room relay block.

  1. Disconnect the integration relay connector.

  1. Disconnect the main body ECU connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (Check for open):
    Tester Connection
    		Condition
    		Specified Condition
    1A-2 - E51-5 (IG2D)
    		Always
    		Below 1 Ω
    Standard resistance (Check for short):
    Tester Connection
    		Condition
    		Specified Condition
    1A-2 or E51-5 (IG2D) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the integration relay connector.

  1. Reinstall the integration relay.

  1. Reconnect the main body ECU connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (IG2 RELAY - MAIN BODY ECU)
OK

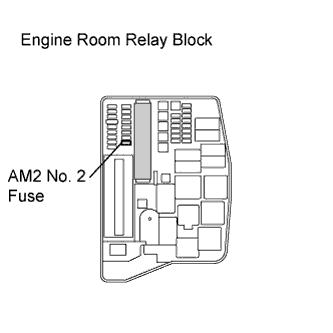

21.CHECK FUSE (AM2 NO. 2 FUSE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Remove the AM2 No. 2 fuse from the engine room relay block.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    AM2 No. 2 fuse
    		Always
    		Below 1 Ω

  1. Reinstall the AM2 No. 2 fuse.



NG
REPLACE FUSE (AM2 NO. 2 FUSE)
OK

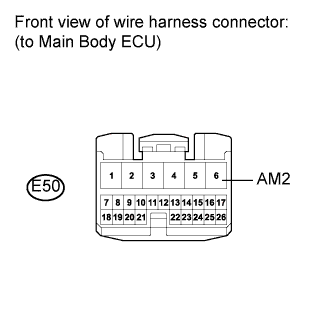

22.INSPECT MAIN BODY ECU (AM2 VOLTAGE)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Ad-Ftv.Система Ecd.Система Ecd Цепь Питания Ecm

  1. Disconnect the main body ECU connector.

  1. Measure the voltage according to the value(s) in the table below.

    Standard voltage:
    Tester Connection
    		Condition
    		Specified Condition
    E50-6 (AM2) - Body ground
    		Always
    		11 to 14 V

  1. Reconnect the main body ECU connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (MAN BODY ECU - BATTERY)
OK

CHECK ENTRY AND START SYSTEM (Нажмите здесь)
