Рычаг Переключения Передач (Для Моделей С Кузовом Типа "Седан") -- Проверка |
| 1. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY (w/ Entry and Start System) |
- ПРИМЕЧАНИЕ:
- Do not disconnect the shift lock control unit assembly connector.

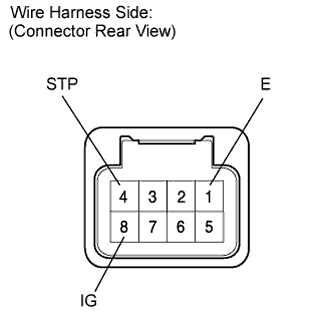

Measure the voltage according to the value(s) in the table below.
- SST
- 09082-00030
- Standard voltage:
Tester Connection Condition Specified Condition 8 (IG) - 1 (E) Engine switch on (IG) 10 to 14 V 8 (IG) - 1 (E) Engine switch off Below 1 V 4 (STP) - 1 (E) Brake pedal depressed 10 to 14 V 4 (STP) - 1 (E) Brake pedal released Below 1 V
 |

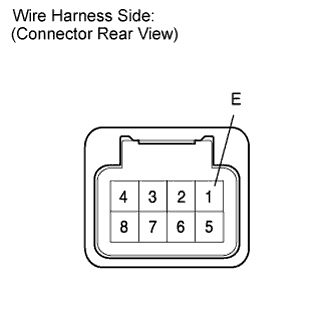

Measure the resistance according to the value(s) in the table below.
- ПРИМЕЧАНИЕ:
- Do not disconnect the shift lock control unit assembly connector.
- Standard resistance:
Tester Connection Condition Specified Condition 1 (E) - Body ground Always Below 1 Ω
 |
| 2. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY (w/o Entry and Start System) |
- ПРИМЕЧАНИЕ:
- Do not disconnect the shift lock control unit assembly connector.

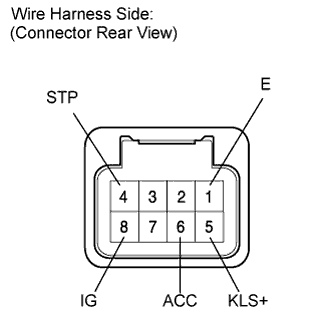

Measure the voltage according to the value(s) in the table below.
- ПРИМЕЧАНИЕ:
- Do not disconnect the shift lock control unit assembly connector.
- Standard voltage:
Tester Connection Condition Specified Condition 6 (ACC) - 1 (E) Ignition switch ON 10 to 14 V 6 (ACC) - 1 (E) Ignition switch ACC 10 to 14 V 6 (ACC) - 1 (E) Ignition switch OFF Below 1 V 4 (STP) - 1 (E) Brake pedal depressed 10 to 14 V 4 (STP) - 1 (E) Brake pedal released Below 1 V 5 (KLS+) - 1 (E) 1. Ignition switch ACC and shift lever P position Below 1 V 2. Ignition switch ACC and shift lever except P position 7.5 to 11 V 3. Ignition switch ACC and shift lever P position (After approx. 1 second) 6 to 9 V 8 (IG) - 1 (E) Ignition switch ON 10 to 14 V 8 (IG) - 1 (E) Ignition switch OFF Below 1 V
 |
Measure the resistance according to the value(s) in the table below.
- ПРИМЕЧАНИЕ:
- Do not disconnect the shift lock control unit assembly connector.
- Standard resistance:
Tester Connection Condition Specified Condition 1 (E) - Body ground Always Below 1 Ω
|
| 3. INSPECT TRANSMISSION CONTROL SWITCH |

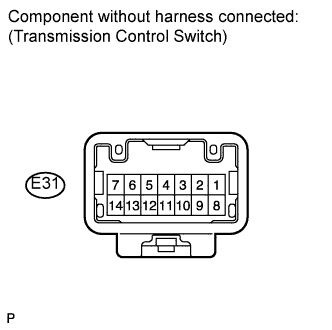

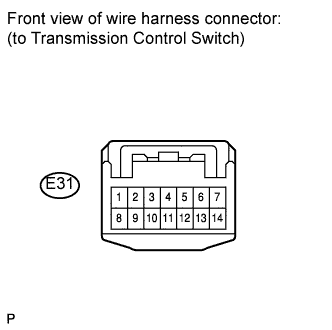

Disconnect the transmission control switch connector of the shift lock control unit assembly.
Turn the ignition switch on (IG), and measure the voltage according to the value(s) in the table below when the shift lever is moved to each position.
- Standard voltage:
Tester Connection Shift Position Specified Condition 1 - Body ground D and 3 11 to 14 V 1 - Body ground Except D and 3 Below 1 V
 |
Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.
- Standard resistance:
Tester Connection Shift Position Specified Condition 1 - 2 3 and 2 Below 1 Ω 1 - 2 Except 3 and 2 10 kΩ or higher
 |
| 4. INSPECT SHIFT LOCK SOLENOID |
Disconnect the shift lock solenoid connector.
Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.
- Standard resistance:
Tester Connection Shift Position Specified Condition 1 (P) - 2 (E2) P 10 kΩ or higher 1 (P) - 2 (E2) Except P Below 1 Ω
 |
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection Condition Specified Condition 3 (SLS-) - 4 (SLS+) Always 112 Ω
