Турбонагнетатель -- Проверка



1. INSPECT AXIAL PLAY OF TURBINE SHAFT


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

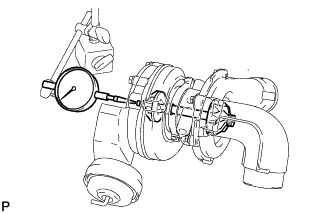

  1. Insert the needle of a dial indicator into the exhaust side of the turbine shaft.

  1. Move the turbine shaft in an axial direction and measure the axial play of the turbine shaft using the dial indicator.

    Maximum axial play:
    0.08 mm (0.0031 in.)
    If the axial play is greater than the maximum, replace the turbocharger.


2. INSPECT RADIAL PLAY OF TURBINE SHAFT


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

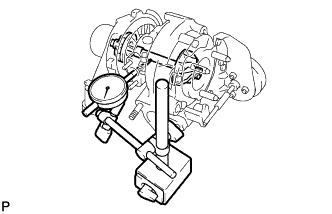

  1. Insert the needle of a dial indicator into the oil outlet hole, and set it in the center of the turbine shaft.

  1. Move the turbine shaft in a radial direction and measure the radial play of the turbine shaft using the dial indicator.

    Maximum radial play:
    0.110 mm (0.0043 in.)
    If the radial play is greater than the maximum, replace the turbocharger.


3. INSPECT ACTUATOR AND NOZZLE VANE OPERATION


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

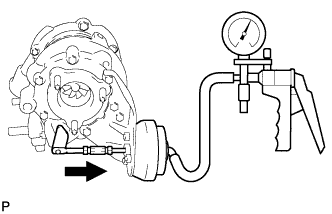

  1. Connect the vacuum pump to the actuator.

  1. When creating a vacuum in the actuator, check that the actuator linkage moves toward the actuator and that the nozzle vane moves.

    УКАЗАНИЕ:
    Visually check the movement from the area where the exhaust manifold and turbocharger are installed.
    If the rod does not move, replace the actuator or turbocharger.
