Рычаг Переключения Передач (Для Моделей С Кузовом Типа Хэтчбэк) Разборка. Corolla ZZE150

Трансмиссия. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
Автоматическая Трансмиссия U341E. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

  1. REMOVE POSITION INDICATOR UPPER HOUSING

  2. REMOVE POSITION INDICATOR SLIDE COVER

  3. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY

  4. REMOVE POSITION INDICATOR LIGHT BULB

  5. REMOVE SHIFT LOCK CONTROL ECU

Рычаг Переключения Передач (Для Моделей С Кузовом Типа "Хэтчбэк") -- Разборка



1. REMOVE POSITION INDICATOR UPPER HOUSING


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

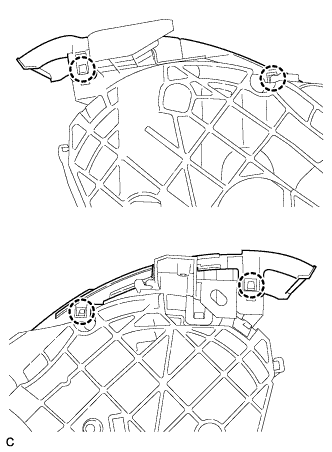

  1. Disengage the 4 claws and remove the position indicator upper housing from the shift lock control unit.

    ПРИМЕЧАНИЕ:
    Do not damage the position indicator upper housing.


2. REMOVE POSITION INDICATOR SLIDE COVER


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

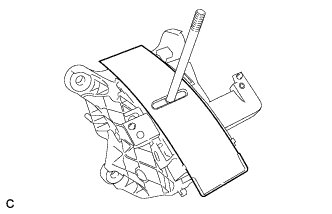

  1. Remove the position indicator slide cover with the No. 2 position indicator slide cover from the shift lock control unit.



    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

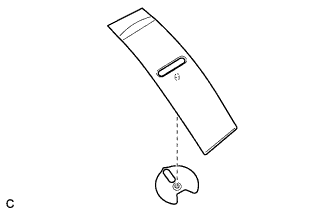

  1. Remove the No. 2 position indicator slide cover from the position indicator slide cover.



3. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

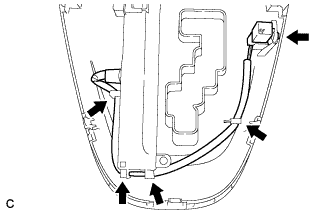

  1. Separate the 5 clamps, and remove the indicator light wire sub-assembly.



4. REMOVE POSITION INDICATOR LIGHT BULB

  1. Remove the bulb and cap from the indicator light wire sub-assembly.



5. REMOVE SHIFT LOCK CONTROL ECU


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150

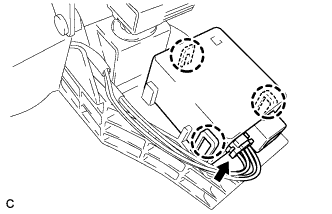

  1. Disengage the 3 claws and remove the shift lock control ECU from the shift lock control unit.
