Рычаг Переключения Передач (Для Моделей С Кузовом Типа Седан) Разборка. Corolla ZZE150
REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY
REMOVE POSITION INDICATOR SLIDE COVER
REMOVE NO. 2 POSITION INDICATOR SLIDE COVER
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
REMOVE POSITION INDICATOR LIGHT BULB
Рычаг Переключения Передач (Для Моделей С Кузовом Типа "Седан") -- Разборка |

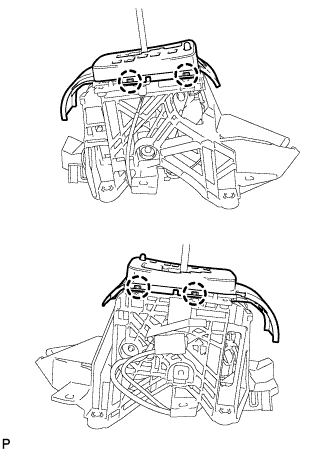

| 1. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY |
Disengage the 4 claws and remove the position indicator housing from the shift lock control unit.
- ПРИМЕЧАНИЕ:
- Do not damage the floor shift position indicator housing sub-assembly.

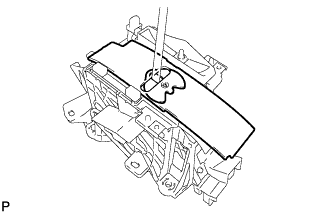

| 2. REMOVE POSITION INDICATOR SLIDE COVER |
Remove the position indicator slide cover with the No. 2 position indicator slide cover from the shift lock control unit.

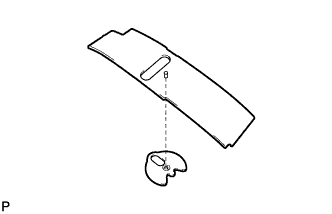

| 3. REMOVE NO. 2 POSITION INDICATOR SLIDE COVER |
Remove the No. 2 position indicator slide cover from the position indicator slide cover.

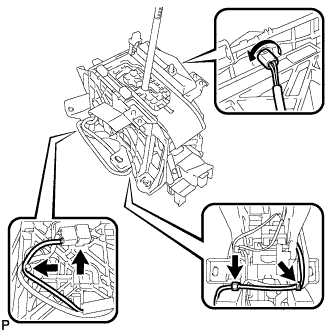

| 4. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY |
Separate the position indicator light wire socket, connector and 3 clamps from the shift lock control unit.
Using a screwdriver, release the stopper.

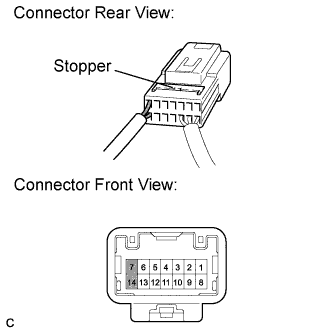

Using a screwdriver, disengage the locking lug of terminals (7) and (14), and pull the terminals out from the rear of the connector.
| 5. REMOVE POSITION INDICATOR LIGHT BULB |
Remove the bulb and cap from the indicator light wire socket.
