Dtc P0252 Injection Pump Fuel Metering Control A Range / Performance (Cam / Rotor / Injector). Corolla Auris
Двигатель. COROLLA, AURIS. ZZE150 ZRE151,152 NDE150
DESCRIPTION

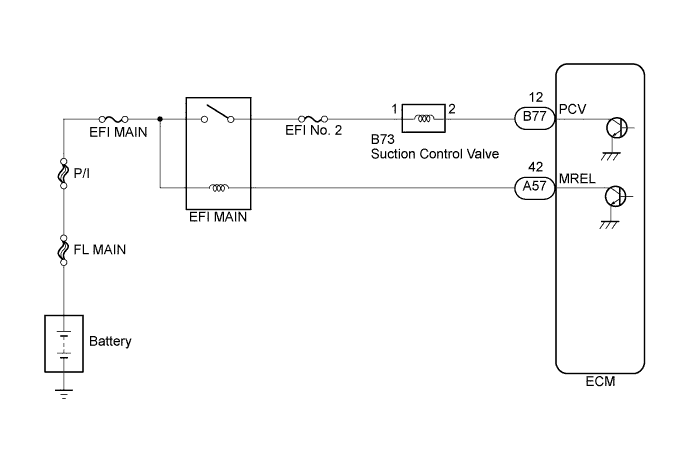

WIRING DIAGRAM
INSPECTION PROCEDURE
READ OUTPUT DTCS (DTC P0252 AND/OR P1228)
INSPECT SUPPLY PUMP ASSEMBLY (SUCTION CONTROL VALVE)
CHECK SUPPLY PUMP ASSEMBLY (SUCTION CONTROL VALVE VOLTAGE)
CHECK HARNESS AND CONNECTOR (SUPPLY PUMP ASSEMBLY - ECM)
CHECK FUSE (EFI NO. 2 FUSE)
DTC P0252 Injection Pump Fuel Metering Control "A" Range / Performance (Cam / Rotor / Injector) |
DTC P1228 Injection Pump Fuel Metering Control "A" Range / Performance (Cam / Rotor / Injector) |
DESCRIPTION
DTC No.
| DTC Detection Condition
| Trouble Area
|
P0252
| - Open or short in suction control valve circuit for more than 0.5 seconds (DTC P1228 set simultaneously)
(The MIL is illuminated and a DTC is immediately set when a malfunction is detected)
- ECM internal error (DTC P1228 not set)
(The MIL is illuminated and a DTC is immediately set when a malfunction is detected)
| - Open or short in suction control valve circuit
- Supply pump assembly (suction control valve)
- ECM
|
P1228
| Open or short in suction control valve circuit for more than 0.5 seconds (The MIL is illuminated and a DTC is immediately set when a malfunction is detected)
| - Open or short in suction control valve circuit
- Supply pump assembly (suction control valve)
- ECM
|
- УКАЗАНИЕ:
- These DTCs are set when the engine idles for approximately 60 seconds.
- When DTC P0252 and/or P1228 is set, check the internal fuel pressure of the common rail by selecting the following menu items on the intelligent tester: Powertrain / Engine and ECT / Data List / Common Rail Pressure.
Engine Speed
| Fuel Pressure
|
Idling
| Approximately 25 to 36 MPa
|
2000 rpm (No engine load)
| Approximately 27 to 46 MPa
|
3000 rpm (No engine load)
| Approximately 34 to 69 MPa
|
WIRING DIAGRAM
INSPECTION PROCEDURE
- УКАЗАНИЕ:
- Read freeze frame data using an intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
1.READ OUTPUT DTCS (DTC P0252 AND/OR P1228) |
Connect the intelligent tester to the DLC3.
Turn the ignition switch to the ON position.
Turn the tester on.
Enter the following menu items: Powertrain / Engine and ECT / DTC.
Read the DTCs.
- Result:
Result
| Proceed to
|
DTC P1228, or P0252 and P1228 are output
| A
|
DTC only P0252 is output
| B
|

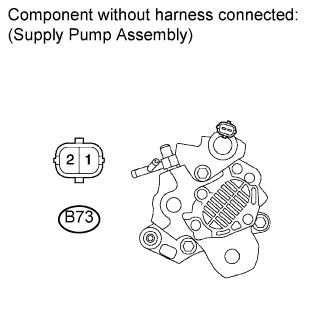

2.INSPECT SUPPLY PUMP ASSEMBLY (SUCTION CONTROL VALVE) |
Disconnect the supply pump assembly connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
B73-1 - B73-2
| 20°C (68°F)
| 2.6 to 3.15 Ω
|
Reconnect the supply pump assembly connector.
| REPLACE SUPPLY PUMP ASSEMBLY (SUCTION CONTROL VALVE) (Нажмите здесь) |
|
|
3.CHECK SUPPLY PUMP ASSEMBLY (SUCTION CONTROL VALVE VOLTAGE) |
Disconnect the supply pump assembly connector.
Turn the ignition switch to the ON position.
Measure the voltage according to the value(s) in the table below.
- Standard voltage:
Tester Connection
| Switch Condition
| Specified Condition
|
B73-1 - Body ground
| Ignition switch ON
| 9 to 14 V
|
Reconnect the supply pump assembly connector.

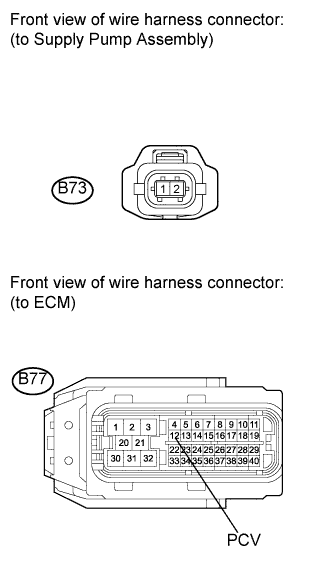

4.CHECK HARNESS AND CONNECTOR (SUPPLY PUMP ASSEMBLY - ECM) |
Disconnect the supply pump assembly connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard resistance (check for open):
Tester Connection
| Condition
| Specified Condition
|
B73-2 - B77-12 (PCV)
| Always
| Below 1 Ω
|
- Standard resistance (check for short):
Tester Connection
| Condition
| Specified Condition
|
B73-2 or B77-12 (PCV) - Body ground
| Always
| 10 kΩ or higher
|
Reconnect the ECM connector.
Reconnect the supply pump assembly connector.
| REPAIR OR REPLACE HARNESS OR CONNECTOR (SUCTION CONTROL VALVE - ECM) |
|
|
5.CHECK FUSE (EFI NO. 2 FUSE) |
Remove the EFI No. 2 fuse from the engine room relay block.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection
| Condition
| Specified Condition
|
EFI No. 2 fuse
| Always
| Below 1 Ω
|
Reinstall the EFI No. 2 fuse.
| REPLACE FUSE (EFI NO. 2 FUSE) |
|
|
OK |
|
|
|
REPAIR OR REPLACE HARNESS OR CONNECTOR (SUPPLY PUMP ASSEMBLY - EFI MAIN RELAY) |
|
