DTC P0698 Sensor Reference Voltage "C" Circuit Low

DTC P0699 Sensor Reference Voltage "C" Circuit High


DESCRIPTION

Refer to DTC P0190 (See page Нажмите здесь) and DTC P0236 (See page Нажмите здесь).

DTC No.
DTC Detection Condition
Trouble Area
P0698
Power voltages (5 V as standard) supplied from ECM to both fuel pressure and manifold pressure sensors are lower than appropriate thresholds
(The MIL is illuminated and a DTC is immediately set when a malfunction is detected)
  1. Open or short in fuel pressure sensor circuit
  2. Fuel pressure sensor
  3. Open or short in manifold absolute pressure sensor circuit
  4. Manifold absolute pressure sensor
  5. ECM
P0699
Power voltages (5 V as standard) supplied from ECM to both fuel pressure and manifold pressure sensors are higher than appropriate thresholds
(The MIL is illuminated and a DTC is immediately set when a malfunction is detected)
УКАЗАНИЕ:
These DTCs are set when the ignition switch is in the ON position.

WIRING DIAGRAM

Refer to DTC P0190 (See page Нажмите здесь) and DTC P0236 (See page Нажмите здесь).

INSPECTION PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0698 AND/OR P0699)

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch to the ON position.

  1. Turn the tester on.

  1. Enter the following menu items: Powertrain / Engine and ECT / DTC.

  1. Read the DTCs.

    Result:
    Result
    		Proceed to
    DTC P0698 and/or P0699 are output
    		A
    DTC P0698 and/or P0699 and other DTCs are output
    		B
    УКАЗАНИЕ:
    If any DTCs other than P0698 and/or P0699 are output, troubleshoot those DTCs first.


B
GO TO DTC CHART (Нажмите здесь)
A


2.INSPECT COMMON RAIL ASSEMBLY (FUEL PRESSURE SENSOR)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Nd-Tv.Система Ecd. Dtc P0698 Sensor Reference Voltage C Circuit Low

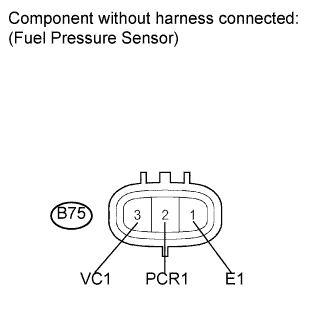

  1. Disconnect the fuel pressure sensor connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    B75-1 (E1) - B75-2 (PCR1)
    		Always
    		16.4 kΩ or less
    B75-2 (PCR1) - B75-3 (VC1)
    		Always
    		3 kΩ or less

  1. Reconnect the fuel pressure sensor connector.



NG
REPLACE COMMON RAIL ASSEMBLY (FUEL PRESSURE SENSOR) (Нажмите здесь)
OK


3.CHECK HARNESS AND CONNECTOR (FUEL PRESSURE SENSOR - ECM)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Nd-Tv.Система Ecd. Dtc P0698 Sensor Reference Voltage C Circuit Low

  1. Disconnect the fuel pressure sensor connector.

  1. Disconnect the ECM connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (check for open):
    Tester Connection
    		Condition
    		Specified Condition
    B75-2 (PCR1) - B77-37 (PC)
    		Always
    		Below 1 Ω
    B75-3 (VC1) - B77-26 (VCS)
    		Always
    		Below 1 Ω
    B75-1 (E1) - B77-16 (E2S)
    		Always
    		Below 1 Ω
    Standard resistance (check for short):
    Tester Connection
    		Condition
    		Specified Condition
    B75-2 (PCR1) or B77-37 (PC) - Body ground
    		Always
    		10 kΩ or higher
    B75-3 (VC1) or B77-26 (VCS) - Body ground
    		Always
    		10 kΩ or higher
    B75-1 (E1) or B77-16 (E2S) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the ECM connector.

  1. Reconnect the fuel pressure sensor connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (FUEL PRESSURE SENSOR - ECM)
OK


4.CHECK HARNESS AND CONNECTOR (MANIFOLD ABSOLUTE PRESSURE SENSOR - ECM)


    COROLLA, AURIS. ZZE150 ZRE151,152 NDE150.Система Управления Двигателем 1Nd-Tv.Система Ecd. Dtc P0698 Sensor Reference Voltage C Circuit Low

  1. Disconnect the manifold absolute pressure sensor connector.

  1. Disconnect the ECM connector.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance (check for open):
    Tester Connection
    		Condition
    		Specified Condition
    A56-2 (PIM) - B77-38 (PIM)
    		Always
    		Below 1 Ω
    A56-3 (VC) - B77-27 (VPIM)
    		Always
    		Below 1 Ω
    A56-1 (E) - B77-17 (EPIM)
    		Always
    		Below 1 Ω
    Standard resistance (check for short):
    Tester Connection
    		Condition
    		Specified Condition
    A56-2 (PIM) or B77-38 (PIM) - Body ground
    		Always
    		10 kΩ or higher
    A56-3 (VC) or B77-27 (VPIM) - Body ground
    		Always
    		10 kΩ or higher
    A56-1 (E) or B77-17 (EPIM) - Body ground
    		Always
    		10 kΩ or higher

  1. Reconnect the manifold absolute pressure sensor connector.

  1. Reconnect the ECM connector.



NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (MANIFOLD ABSOLUTE PRESSURE SENSOR - ECM)
OK


5.REPLACE MANIFOLD ABSOLUTE PRESURE SENSOR

  1. Replace the manifold absolute pressure sensor.


NEXT


6.CHECK WHETHER DTC OUTPUT RECURS (DTC P0698 OR P0699)

  1. Connect the intelligent tester to the DLC3.

  1. Turn the ignition switch to the ON position.

  1. Turn the tester on.

  1. Clear the DTCs (See page Нажмите здесь).

  1. Turn the ignition switch off.

  1. Turn the ignition switch to the ON position.

  1. Enter the following menu items: Powertrain / Engine and ECT / DTC.

  1. Read the DTCs.

    Result:
    Result
    		Proceed to
    DTC is not output
    		A
    DTC P0698 or P0699 is output
    		B


B
REPLACE ECM (Нажмите здесь)
A

END
